CIMLINE C1 - Tank Burner Wiring Diagram

35

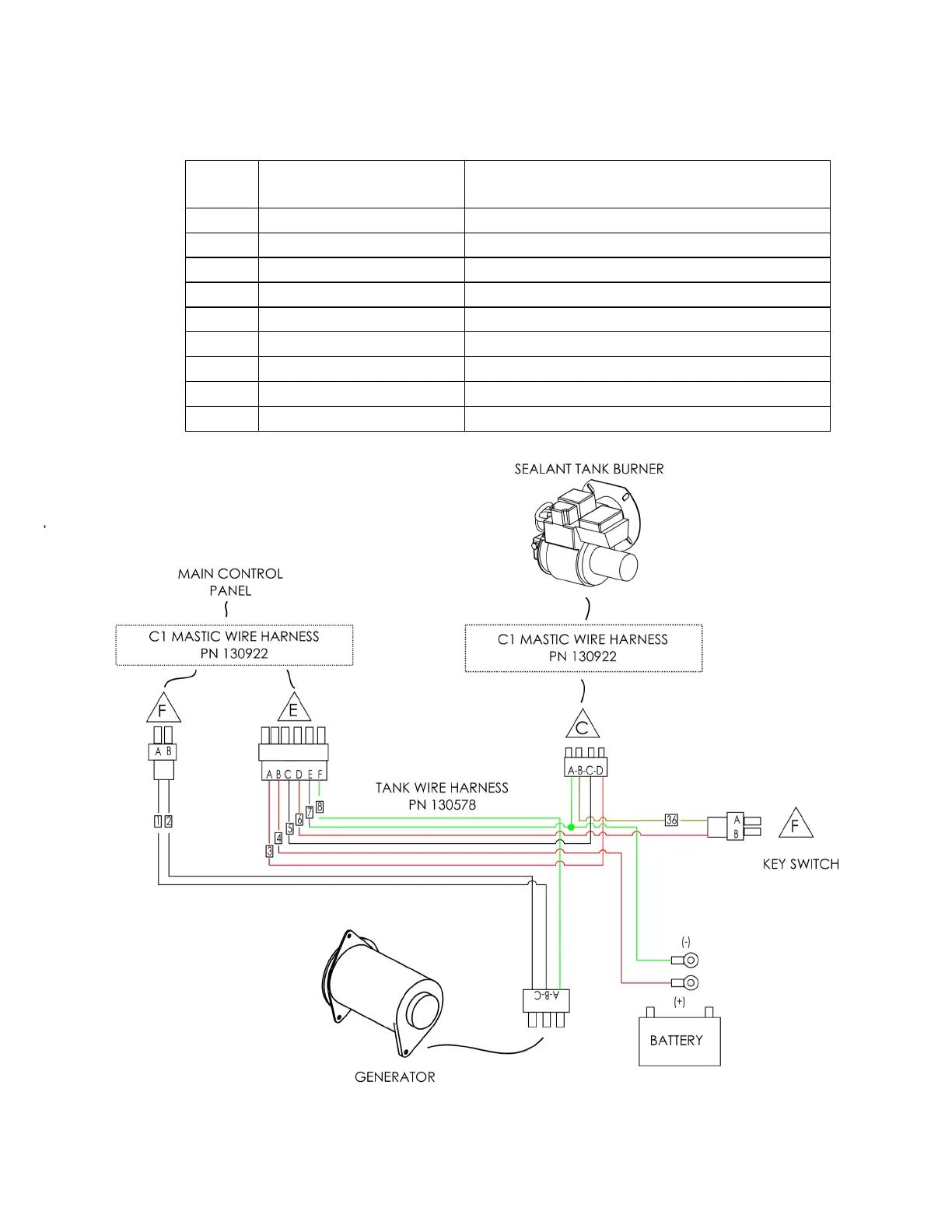

Tank Burner Wiring Diagram
Numbe Color Function
1 White Hose A.C. Voltage
2 Black Hose A.C. Voltage
3 Red/Black Stripe Burner Power
4 Red Battery (+)
5 White Burner Enable
6 Red Micropanel Accessory Input
7 Green/Yellow Stripe Battery (-)
8 Green Generator Excite
36 Brown Burner Error (to Micropanel)
