CIMLINE C1 - Optional Wand Attachments

57

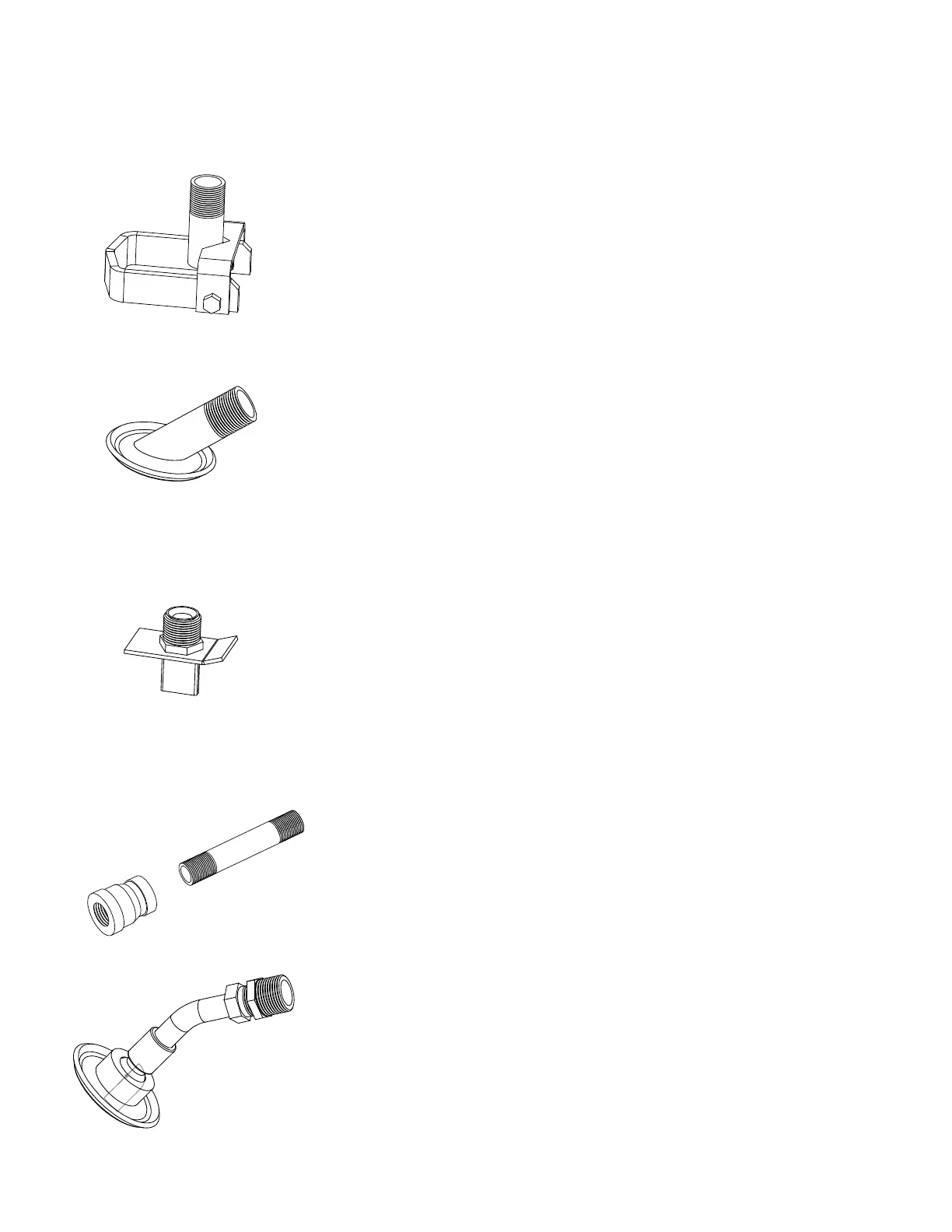

OPTIONAL WAND ATTACHMENTS
 2.5" WIDE BAND
 3/4" NPT INLET
 OPEN SHOE DESIGN FOR CLEAR VISIBILITY OF MATERIAL
 PIVOTING INLET TUBE MAINTAINS CONTACT WITH THE ROAD.
 AVAILABLE IN 1/8" AND 1/4"
 3/4" NPT INLET
 SKID PLATE TO REDUCE OPERATOR FATIGUE
 TIP MAY BE SHORTENED OR ANGLED ON FIELD FOR SPECIFIC
APPLICATIONS
1/8” SEALING TIP / 403164Z
1/4” SEALING TIP / 403163Z
 3/8 NPT X 3 1/2" LONG TUBE
 ANGLED TIP
 MAY BE FLATTENED IN FIELD FOR DIFFERENT APPLICATIONS
 3/4" NPT INLET
 120567 REDUCER REQUIRED
3/8” SEALING TUBE / 416968
3/4” X 3/8” REDUCER / 120567
PIVOTING SHOE / 403137
 2" OR 3" WIDE BAND
 3/4" NPT INLET
 3/8" OD ORIFICE
 4 1/2" OD PLATE
 UNIFORM BAND PROVIDED BY DISC SHAPE
SEALING DISC 2.5” / 404528
SEALING DISC 3.5” / 403162
 2" OR 3 ½” WIDE BAND
 3/4" NPT INLET
 3/8" OD ORIFICE
 3 1/8" OD PLATE
 UNIFORM BAND PROVIDED BY DISC SHAPE
 PIVOTING SHOE
SWIVEL TIP 4” / 407233
SWIVEL TIP 2.5” / 407232
