PROGRAMMABLE DOOR LOCK (IF EQUIPPED)
The programmable door lock can be configured to lock the chamber door at
certain temperature setpoints or in profile steps. The setpoint values that
trigger the door to lock can be adjusted in the Settings Menu under Alarm
Settings. The “Setpoints” button in Alarm Settings provides a field to adjust
the low and high setpoints. These are the setpoints that will cause the door to
lock. The user can also modify if the alarm is silent or if it shuts down the
chamber. The “Door Lock” event can also be turned on or off within specific
profile steps like any other chamber event.
START-UP INSTRUCTION SUMMARY - REMOTE
SENSOR (ZPRC UNITS)
Enabling the “RC Blower” Event energizes the remote conditioning blower,
delivering conditioned air to the
remote hood. Temperature (and optional humidity) control is automatically
transitioned from local in the
chamber’s plenum to remote at the hood.

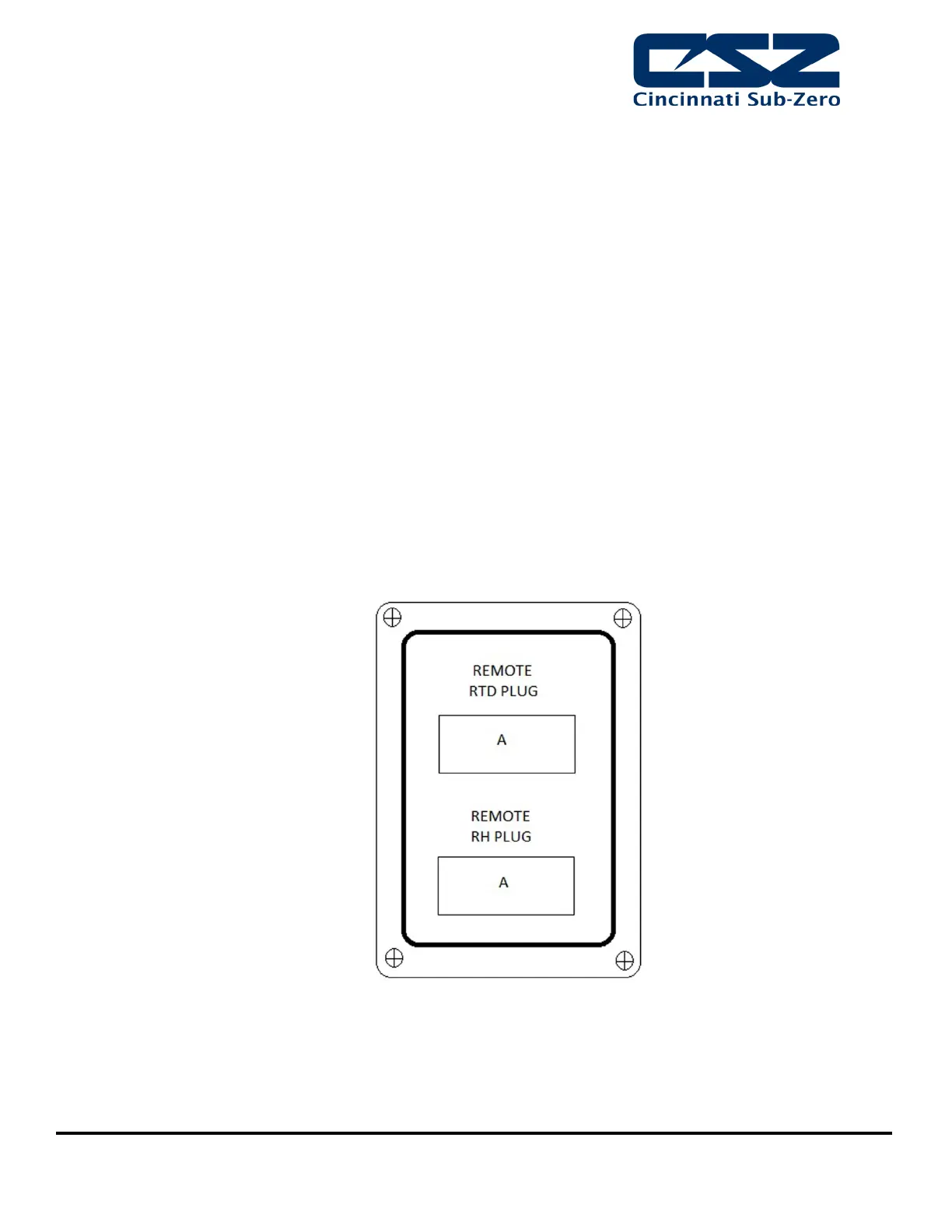

Connections for both the remote temperature and humidity sensors are
located on the Remote Sensors
interface plate at the rear of unit.
Figure 3-4: Controller Panel
Note: CSZ is continuously upgrading the components used in its equipment. Consequently,
the physical appearance of certain components may vary from that shown.
