OPERATING INSTRUCTIONS
52
AIR SUPPLY DAMPER (ZPRC UNITS)
This device regulates the flow of supplied air to the chamber. To change the flow
of air, loosen the wing nut and rotate the handle located on the top left corner of
the chamber. Once the handle is adjusted, tighten the wing nut so your settings
will hold.

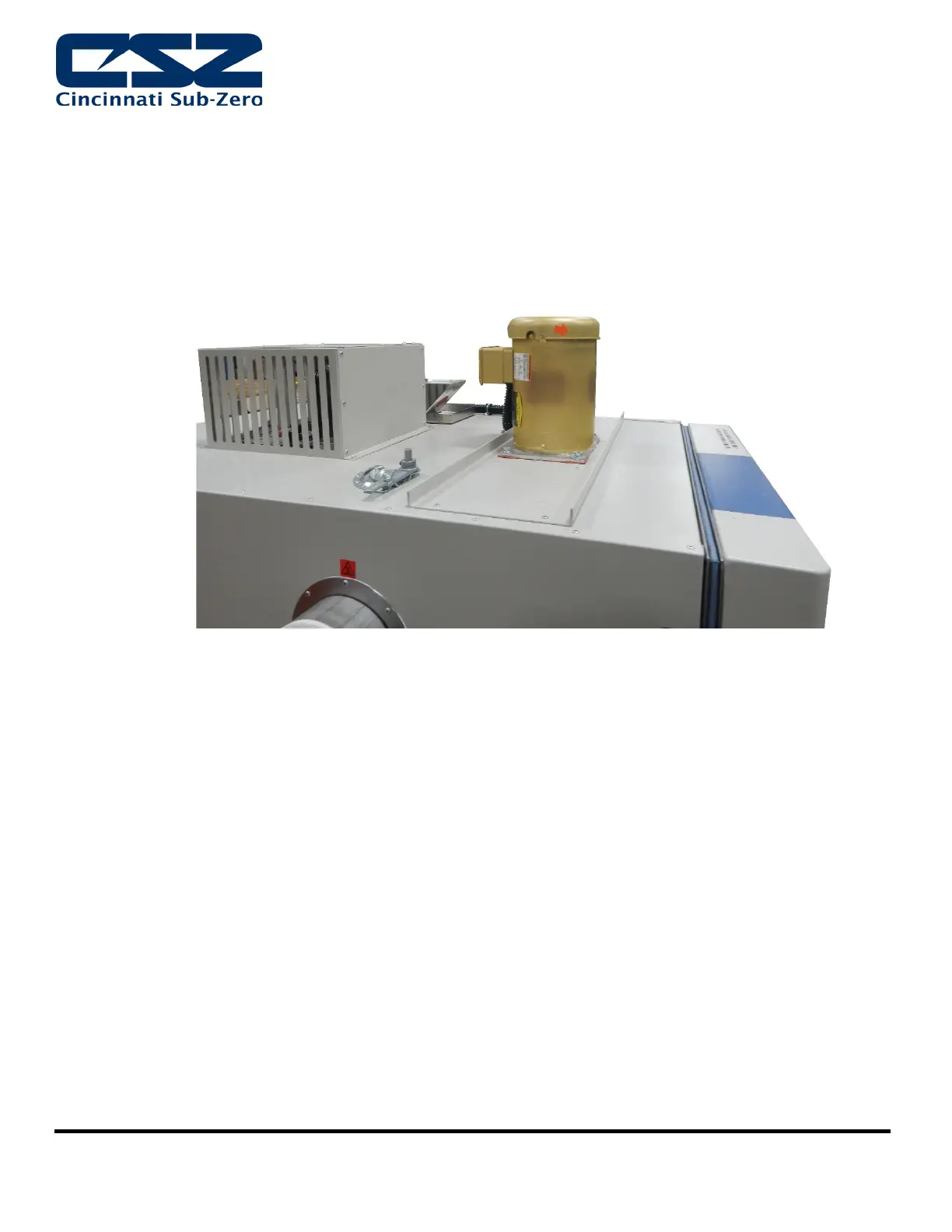

Figure 3-5: Air Supply Damper
Note: CSZ is continuously upgrading the components used
in its equipment. Consequently, the physical appearance
of certain components may vary from that shown.
