05.39. electronics
05.39.a. CPU
05.39.b. display board
05.39.c. RFID
led 24 V dc
grinder motor
fuse 2 A
temperature probe
connector
display board connector
RFID connector
MDB connector
Executive connector
led 5 V dc
IN 230 V ac
grinder motor
connector
internal button
PROG
flash key connector
left keyboard
connector
CPU board
connector
right keyboard
connector
supply connector
dispensing cpt.
led supply
USB connector
pressure boiler heating
element led
pressure boiler and pump
heating element

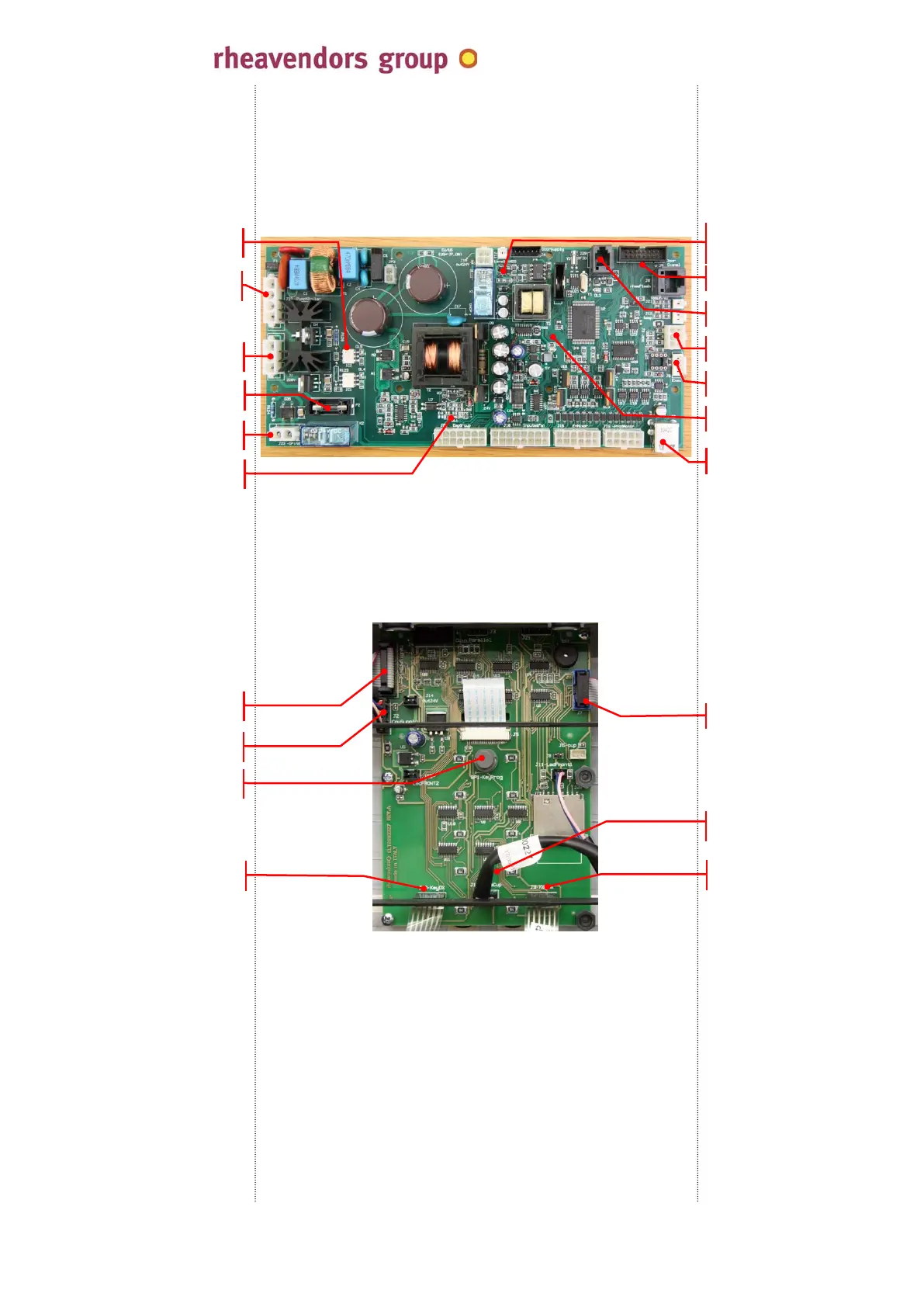

the CPU board governs the operation of the machine, it is the seat
of the machine programmes and it is secured to the frame by
means of turrets;
the temperature probe cable is separated from the machine wiring
to avoid hampering any removal of the probe itself;
it collects and processes the signals necessary to display the
messages for the user and the operator; it receives the signals
from the two selection keyboards and supplies the lighting leds of
the cup compartment;
the RFID card is a hardware option that can equip the machine; it
is housed inside the cover, it enables the operator to programme
the product decounters (see 09.01.n.) and/or it can be used as a
payment system (see 09.01.p.);
