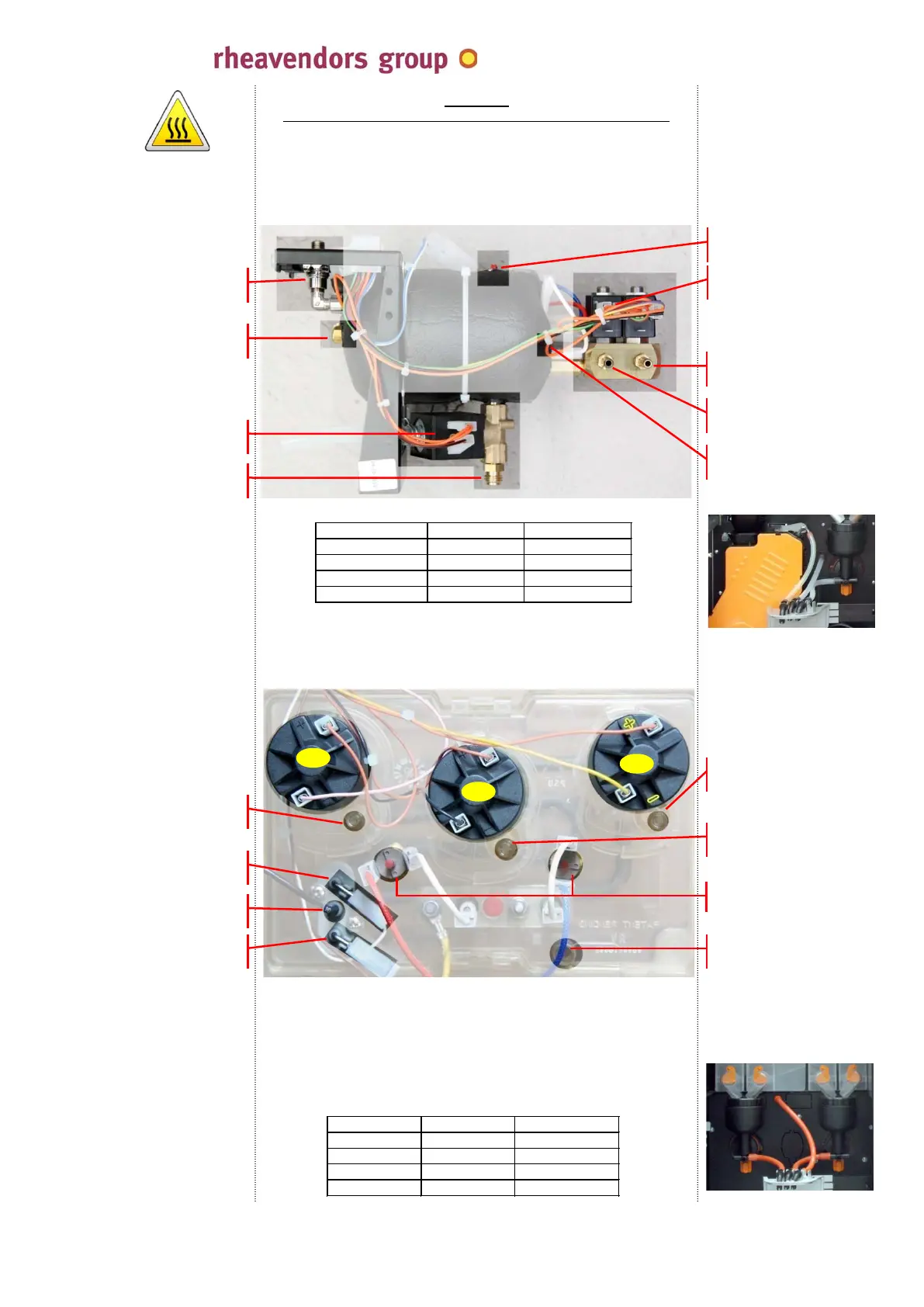

Cino eC - Boiler and Hydraulic Systems; Pressure Boiler Components

05.36. pressure boiler
05.37. boiler
05.38. boiler pumps
attention
these components may be very hot evenif the machine is off;
in the E machine, pressure boiler complete with a temperature
probe and protection clicsons; the drain tap may be used to empty
the hydraulic circuit (see 09.01.f.);
in the I machine, boiler with all active elements (heating element,
thermal protections, temperature sensor, pumps) fastened to the
cover;
in the I machine, pumps with turbines immersed in the boiler
water; water is conveyed in tubes feeding mixing bowls; (attention
to the polarisation of motors; see 03.15.);
the water quantity of instant selections is established by the time
set in the “water N” parameter (see 09.01.a.);
X
2
1
EX
E1
E2
water inlet
to the drain tap
to coffee brewer
to mixing bowl 1
hot water 2
temperature probe
three-way valve
clicsons
solenoid valves
solenoid valve
name sw
outlet
E1
water 1
mixing bowl 1
E2
water
2
hot water 2
EX
coffee water
coffee brewer
cino eC by
MAN1010105 rel. 03 dated 12.02.2014 page no. 20 of 50 page
www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 e mail: rheavendors@rheavendors.com
rheavendors group's sole property
P1
P2
level probe
level probe water inlet
water outlet 2
water outlet 1
temperature probe
P3
water outlet 3
clicson
pump
name sw
outlet
P1
water 1
mixing bowl 1
P2
water 2
mixing bowl 2
P3
water 3
hot water 3
1 2
3
