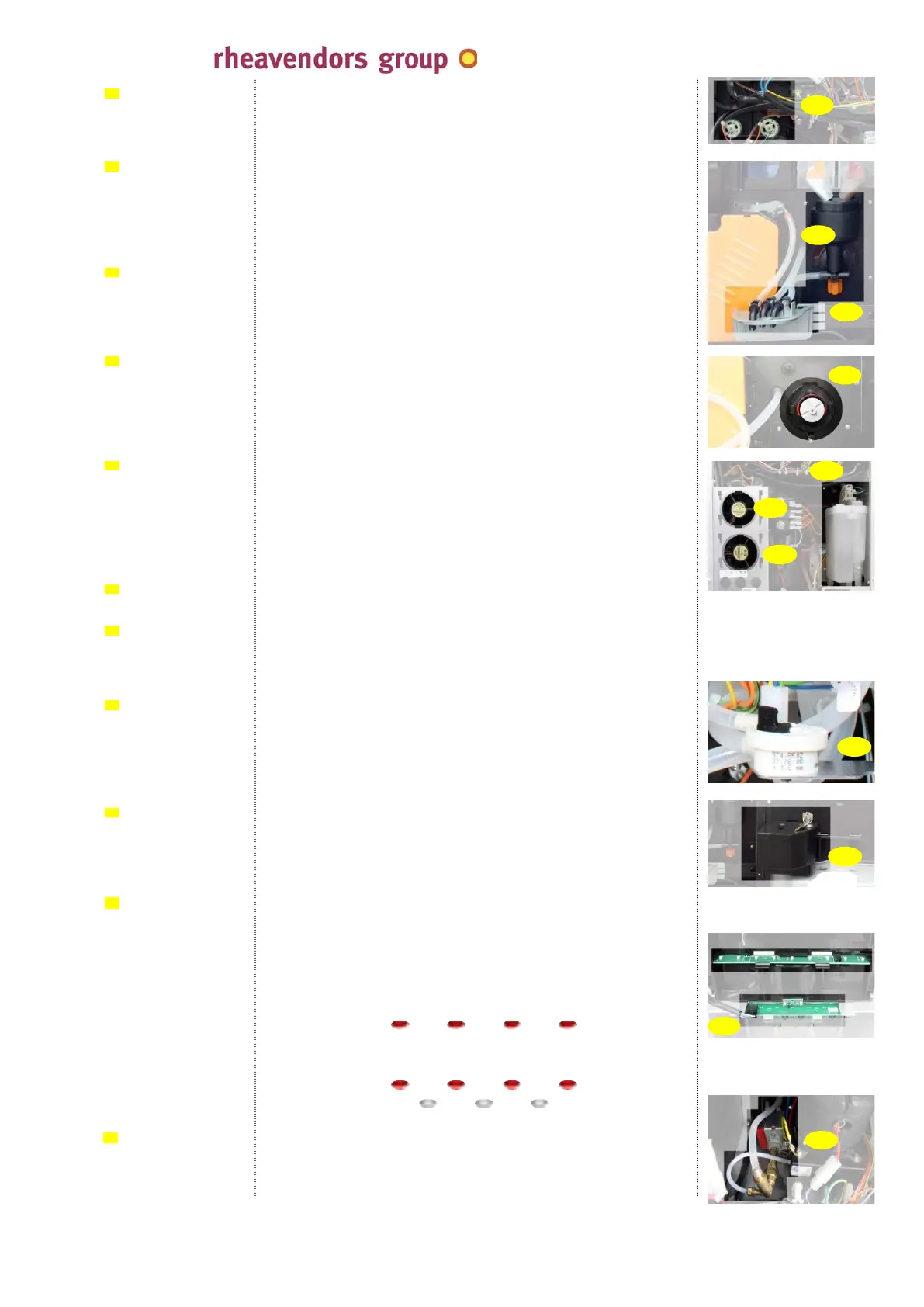

they are intended to rotate the worm screws inside instant product
canisters to pour the product quantity necessary for selection in the
mixing bowls;
the mixing bowls of the mixer will accommodate the instant
products you have poured to mix them with water; the fan of mixer
motor will act at the bottom and the drink outflow to the dispenser
occurs by means of a silicone tube; mixing bowls and outlet tubes
can be washed with lukewarm running water;
a fixed support on the cup station is intended to house the
dispensers from the coffee brewer, the mixer bowl and the direct
hot water unit;
press the release lever to move it to the right to clean or to remove
the coffee brewer;
the motors of mixers help you mix instant products with water by
means of the rotation of the fan mounted on their axis; the
rotation speed can be adjusted (see 09.01.a.) to the features of the
various products;
an aspirator will eject suspended product residuals from the
vending machine; the aspirator is connected with a drawer beneath
product slides to intercept the residual impalpable
powder coming
from selections; the action time of the aspirator is programmable
by means of a software parameter (see 09.01.f.); aspirated air is
ejected through the slots of the rear panel;
to aspirate the air from the internal environment of the machine to
avoid any condensate;
in the E machine, it accumulates water for sending to the pressure
boiler; the level is controlled by a float and – if above the
established level – it will flow back to the inlet solenoid valve safety
device, thus preventing the inlet of new water;
for the espresso version only, it supplies the CPU the water
quantity running through the coffee brewer to establish its volume;
the water quantity of instant selections is established by the time
set in the “water N” parameter only (see 09.01.a.);
the components intended to support the payment system (not
supplied) are made available in some versions, inside the door; the
coin box is equipped with a lock and the payment system cable
shall be connected with the CPU board; (see 05.39.a.);
- each selection key is lighted by a led mounted on the display
board (see 05.39.b.);
- the front transparent stud, the dispensing compartment and the
door panel are lighted by a led mounted on printed circuits inside
the door;
the dispensing compartment is lighted by four leds in standby
mode and during a dispensing cycle;
leds of different colours turn on alternatively to signal the end of
a dispensing cycle;
in the E machine, a vibration pump with bypass conveys water to
the solenoid valves block for instant and three-way valve for
espresso;
05.25. product motors
05.26. mixing bowls
05.27. nozzle support
05.28. mixer motors
05.29. powder aspirator
05.30. air aspirator
05.31. air break
05.32. volumetric counter
05.33. coin box
05.34. door lighting
05.35. pressure boiler
pump
28
26
27
29
30
31
32
33
25
34
