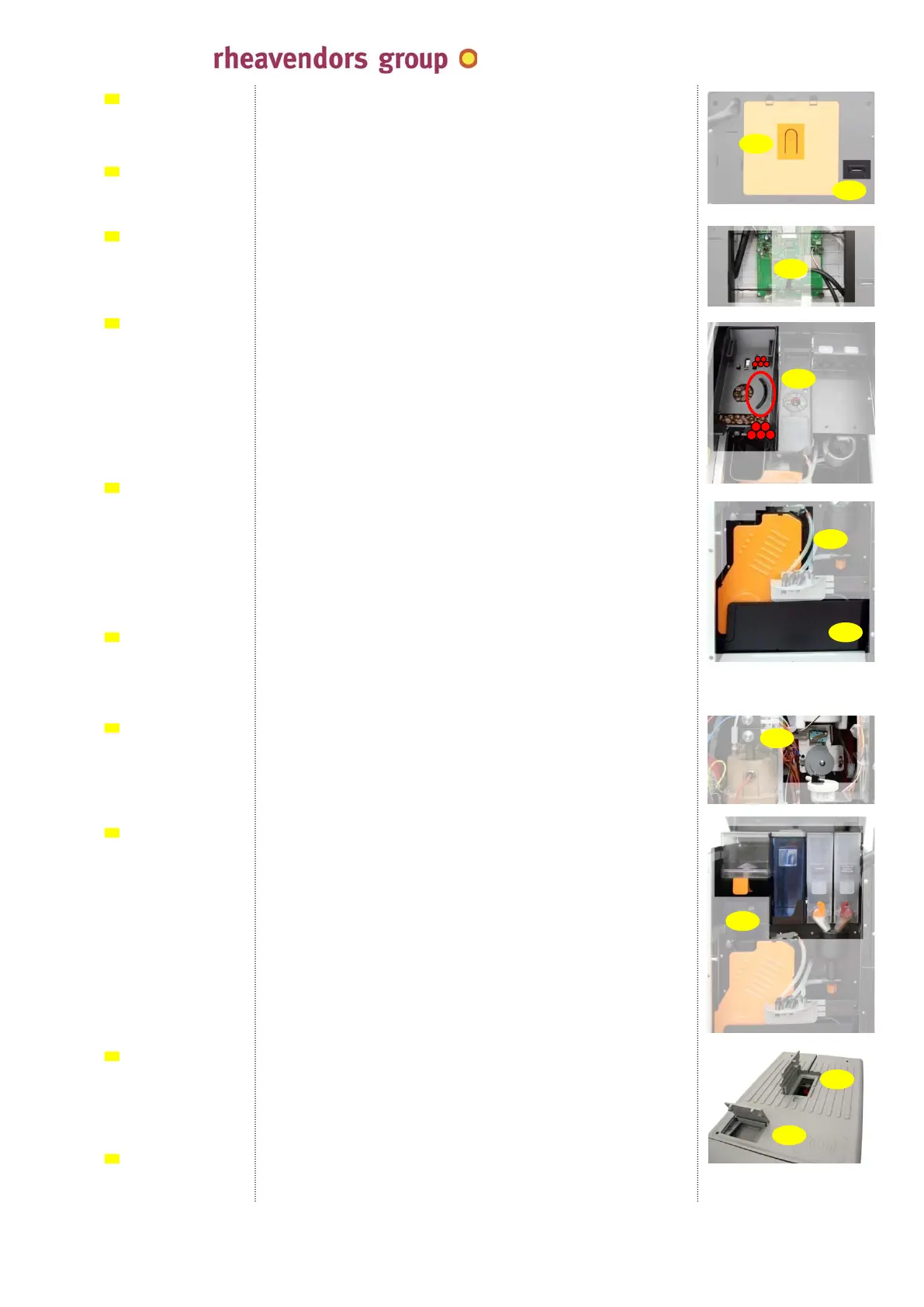

the button giving access to the machine programming mode is
arranged on the orange protection carter inside the door;
programming flash keys are arranged in the carter inside the door
(see 09.06.);
product labels are arranged inside the door panel, beneath the
orange carter;
insert the labels into the pockets by observing the machine
configuration (see 13.13.);
the grinder grinds the coffee beans in the canister and pours them
directly into the coffee brewer, the coffee powder quantity is
established by a “grinder time” software parameter (see 09.01.a);
you can programme the grinding time necessary to obtain the drink
you wish for each espresso selection;
the selections with coffee beans are inhibited if the coffee canister
presence switch is not pressed (see 05.19.);
there is a lever just beneath the coffee beans canister; move it to
change the grinding degree (move it to the back of the machine to
make powder finer);
after having received and compressed the ground dose from the
grinder, brewing occurs in the coffee brewer by using the water
coming from the pump; the used dose is conveyed to
the grounds
container (see 05.20.);
the presence of the brewer is detected by a switch; if it is not
pressed, espresso dispensing cycles are inhibited; there is a version
with a heated metal brewing chamber (see picture on page 13);
it collects over thirty ground doses after having used them in the
coffee brewer; a software option (see 09.01.o.) will show a warning
message as soon as the tray is full;
the coffee brewer motor will rotate some parts of the coffee brewer
to compress ground coffee for brewing; rotation is controlled by a
switch driven by a cam that will inform the CPU on the position of
the coffee brewer;
instant product canisters dispense their content in the underlying
mixing bowls; an internal worm screw driven by the product motor
will push the instant product to the product slide; they can be
equipped with a wheel and a product shaker for constant
dispensing; the outlet, the dimension of which can be either
standard or smaller, has got a closing baffle;
the coffee beans canister (hopper) has a closing blade; pull it
before
lifting the container;
to protect the products, containers are closed by a cover; a water
tank is intended for supply in the versions not connected with the
water network (see 01.01.); this tank can be filled through a hatch
of the vending machine cover;
in A machines, a door on the vending machine cover will enable
you to access to the internal water tank and fill it in;
an internal water tank is complete with a float signalling by means
of a red strip if you have filled it in excess;
a single-dose of ground coffee at your choice can be used in some
versions, coming directly to the coffee brewer through a hatch on
the machine cover;
05.15. internal button
(PROG)
05.16. flash key housing
05.17. label slot
05.18. grinder
05.19. coffee brewer
05.20. grounds container
05.21. coffee brewer
motor
05.22. product canisters
05.23. water door
05.24. “Your private
coffee” door
16
15
21
23
24
19
20
18
22
17
cino eC by
MAN1010105 rel. 03 dated 12.02.2014 page no. 18 of 50 page
