how to do to:
13.01. empty the drip
tray
13.02. empty the
grounds container
13.03. remove the coffee
hopper
13.04. remove the
instant canister
13.05. remove the coffee
brewer
13.06. regulate the
grinding degree
13.07. access to the rear
13.08. remove water
13.09. replace the o-ring
of mixing bowl
13.10. replace the mixer
motor
13.11. replace the
product motor
13.12. determine water
and product times
13.13. insert labels
the drip tray is arranged in its work seat and retained by the
notches in the structure; pull to remove it;
after having opened the door and removed the drip tray, pull the
right side of the drawer forward and remove it; observe the
position of the water inlet tube of the unit;
pull the orange closing baffle and lift the coffee hopper;
rotate the dispensing slide closure and pull the canister by lifting it
slightly; to reassemble it, insert the rear bush into the motor gear
and the lower pin into the horizontal surface hole; disassemble the
product slides from the canisters by turning them counter
clockwise;
when the machine is open, after having removed the drip tray and
the grounds drawer, unscrew the water inlet ring nut (made of
orange plastics, knurled, at the bottom) and the upper connection
(black knob, upper part of the unit); lift the lock lever; pull the
upper part of the brewer;
move the grinder sector (to the back of the machine for a finer
degree); the effect produced by the regulation is shown in the
drink after three or
four dispensing cycles; the grinding degree and
the coffee dose shall produce a ca. 15 sec. brewing time;
attention
make sure that the power supply cable has been detached
from the mains before

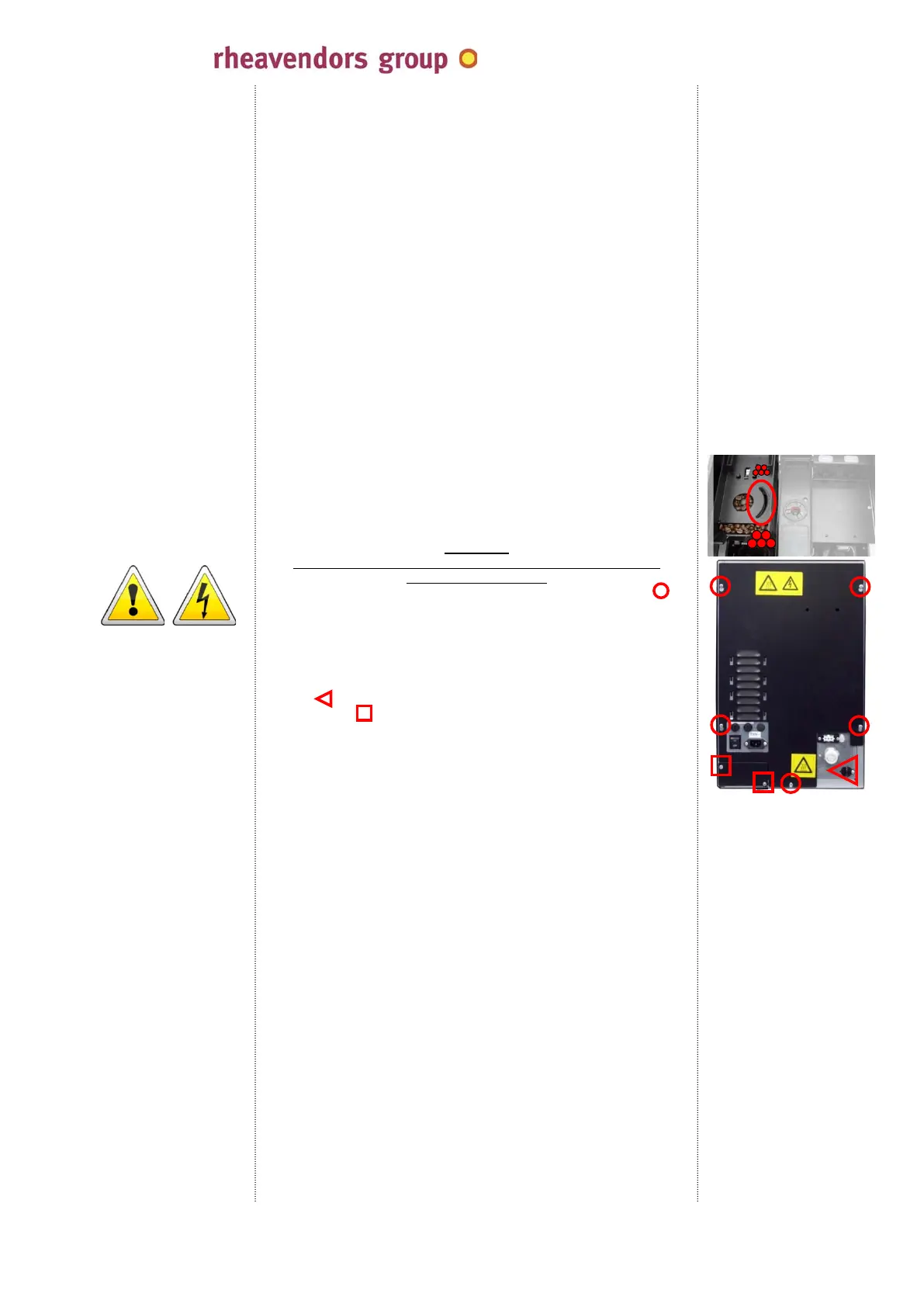

unscrew the five screws intended to fasten the metal panel ( );
lift slightly and extract the panel;
all internal components of the machine can be now accessed;
in E machines, prepare a bucket beneath the support surface of the
machine; after having removed the back of the machine, remove
the plug closing the drain tube of the air break by unscrewing the
screw ( ), access the drain tap of the boiler by unscrewing the
two screws ( ) and open it; activate the “uninstall” cycle (see
09.01.f.);
in I machines, remove the plug intended to close the boiler drain
tube and wait for the water outlet;
remove the silicone tubes intended to dispense the product; turn
the orange ring nut clockwise; pull the mixing bowl body and
extract the mixer fan; you can now access the w-ring of the motor
shaft; the water inlet gaskets of the mixing bowl and the mixing
bowl gaskets;
remove the silicone tubes intended to dispense the product; turn
the orange ring nut clockwise and pull the mixing bowl body;
unscrew the crosshead screw and extract the motor;
the power
supply wires can be removed without any tool;
remove the product canister; access the rear part of the machine;
extract the two small electric cables from the motor, hold the body,
push it to the bottom to release it from the bayonet connection of
the structure; the power supply wires can be removed without any
tool (observe the polarities);
the times specified by table 10.01. can be referred to as the times
functional for the machine and the products to be dispensed;
however, they can be adapted to the capacity of the user’s cups
(by changing “time water N”) and its tastes (by changing “product
N”); please, never forget to make sure that the dispensing time of
the instant product is always lower than the one of corresponding
water;
open the door and remove the orange carter; extract the two
electric connectors of the keyboards; release the four holders from
the front panel by removing the four safety clips; insert the labels
into the pockets by observing the machine configuration;
see 05.06.
see 05.20.
see 05.22.
see 05.22.
see 05.19.
see 05.26.
see 05.28.
see 05.25.
see 05.17.
