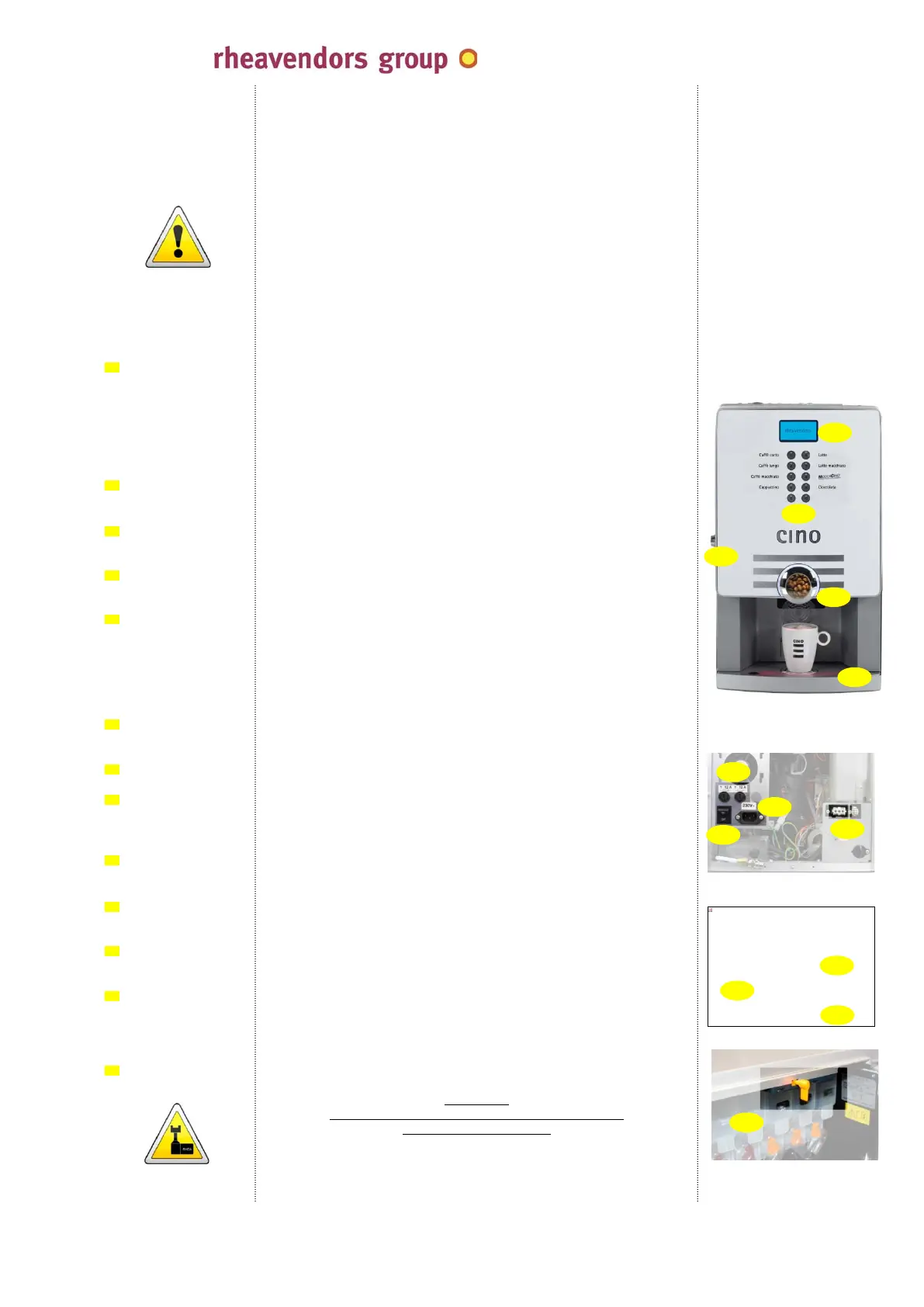

05.01. general
information
05.02. selection keyboard
05.03. display
05.04. dispenser
05.05. door lock
05.06. drip tray
05.07. electric connection
05.08. power on switch
05.09. fuses
05.10. service connector
05.11. water drain plug
05.12. pressure boiler
drain tap
05.13. water inlet
solenoid valve
05.14. door switch
the Rhea cino eC vending machine is a machine explicitly designed
for being easily used by all users since no specific competence is
required in preparing drinks;
the function consists in dispensing drinks by mixing food products
and water at a proper temperature; the correct operation of the
vending machine occurs in closed rooms in normal environmental
conditions and at a room temperature between 5 °C and 35°C, the
relative humidity below 80%;
use only specific ingredients for vending machines;
dispense by briefly pressing a key of the selection keyboard
(see 05.02.); make sure that the cup has been properly positioned
at the dispensing station, if necessary by using the flap support for
caps (see 03.07.);
after having closed the door, press the buttons to dispense; all
buttons are lighted in standby mode whereas they turn off during
the dispensing cycle and only the selected button turns on; keys
will assume various functions in the programming mode (see 09.)
and enable the user to modify the machine parameters; keys are
numbered progressively from the top: 1, 2, … and from the left;
the display messages inform users and operators about the
operation state of the vending machine;
the cino eC vending machine has got a fixed drink dispenser on
the cup support surface;
the door is closed by means of a lock; the key is mapped and
numbered for identification;
it collects possible residual drops from the dispenser and, if
necessary, the waste water in excess from the air break or from
the boiler; it is slided at the bottom of the machine case, in the
front, and it is composed by a covering drawer and a grilled cover
that can be washed by running water; an electric contact is
intended to control the filling level (see 11. and 13.01.).
a three-terminal socket is arranged at the back of the case for the
connection of the mains cable;
to power on and off the machine;
installed on the mains power supply to protect the machine (see
03.10.); fuses must be necessarily replaced by specialised technical
personnel only;
they provide for electrical connection with an accessory module
that can work in combination with cino eC;
from where to let the silicone tube from the air break or from the
boiler come out for emptying; (see 13.08.);
open it to let water come out of the boiler and empty it; (see
13.08.);
the water inlet solenoid valve on R machines only has got an anti-
flood safety device intended to stop the water inlet in case of
failures; to its electrical pins can be connected in parallel an any
submersible pump (see 03.03.);
to power off the machine when the door is open;
attention
some parts remain anyway network-connected
act extremely carefully;
use the service key to supply the vending machine if it is necessary
to activate the machine when the door is open;
the key is housed in the cover;
02
03
04
05
06
1
2
3
4
6
7
8
9
10
14
07
09
08
11
12
13
cino eC by
MAN1010105 rel. 03 dated 12.02.2014 page no. 17 of 50 page
www.rheavendors.com tel: 0039 02 966 551 fax: 0039 02 96 55 086 e mail: rheavendors@rheavendors.com
rheavendors group's sole property
