Chapter 5 Applying Formats for Data Editin
g

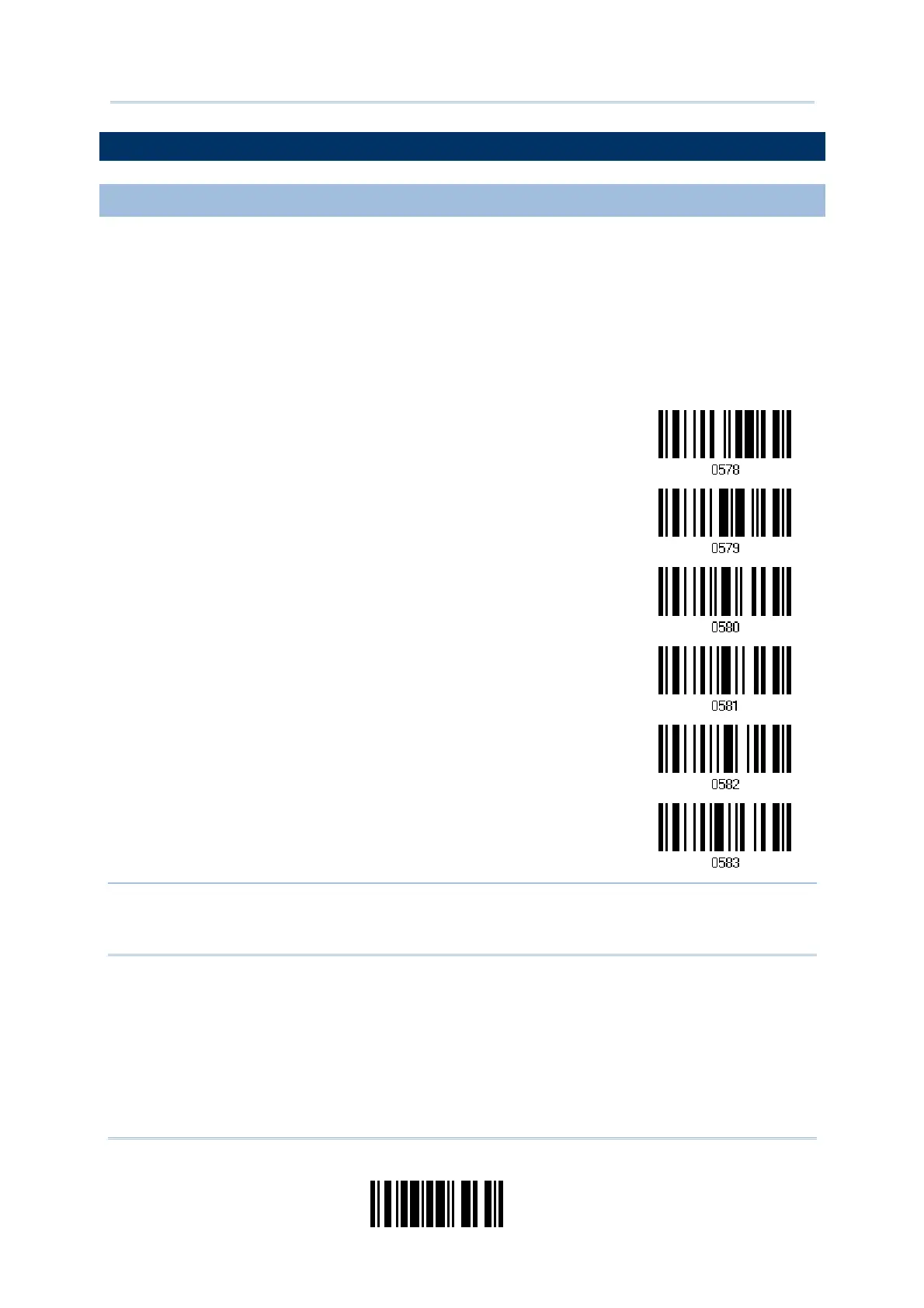

5.4 CONFIGURING FORMAT — DEFINE DATA FIELD
5.4.1 TOTAL NUMBER OF FIELDS
Data can be divided into at most 6 fields; each of them is numbered from F1 to F6
accordingly. However, only F1~F5 can be configured.
 The total number of fields must be specified correctly. If three fields are configured
for the editing format, the data characters after F3 will be assigned to F4
automatically. This feature is quite useful especially when data of variable lengths is
processed by editing formats.
*One Field
Two Fields
Three Fields
Four Fields
Five Fields
Six Fields
Note: The number of configurable fields is always one less than the total number of
fields specified. The extra data characters beyond the last field configured will be
automatically assigned to the next field.

CipherLab 1105 Specifications

General

Type	Handheld bar code reader
Wavelength	630 nm
Sensor type	Laser
Read rate (max)	100 reads/s
Pitch reading angle	-70 - 70 °
Optical sensor resolution	3648 pixels
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Pharmacode, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	-
Connectivity technology	Wired
Product color	Gray
Housing material	Polyurethane
Power consumption (standby)	0.06 W
Power consumption (typical)	0.190 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	145 mm
Width	93 mm
Height	64 mm
Weight	165 g
