CipherLab 1105 User Manual

83
Update

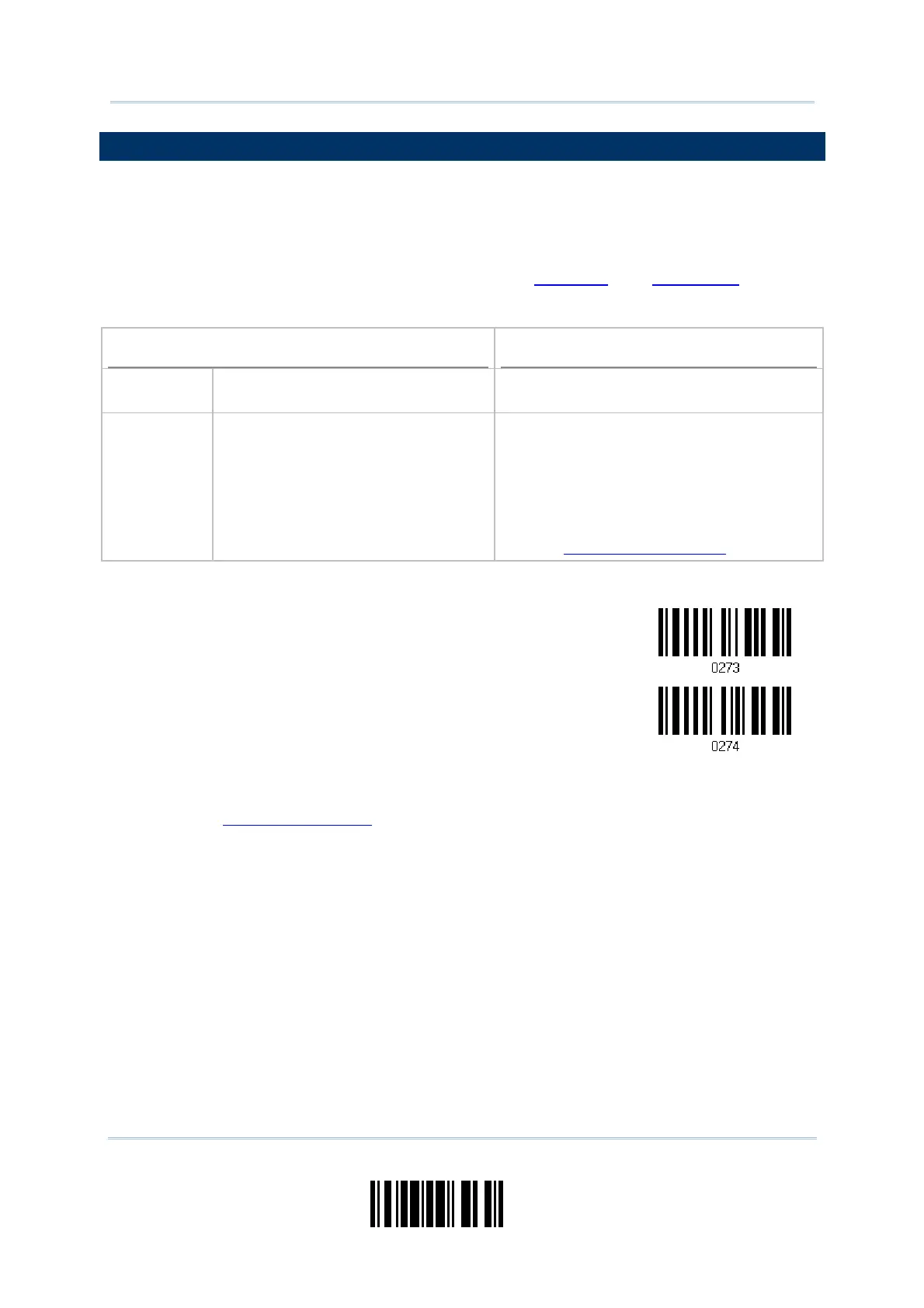

Chapter 4 Defining Output Format
4.2 PREFIX/SUFFIX CODE
By default, there is no prefix code, and [ENTER] or [CR] (Carriage Return) is configured
to be suffix code. Up to 4 characters can be configured, for example, “[$][$][$][$]”, and
you will have four dollar signs appear in front of the barcode read, like this –
“$$$$1234567890”.
 If “Keyboard Wedge” is configured for interface, Key Type and Key Status will then
become applicable. You may decide whether or not to apply Key Status when “Normal
Key” is selected for Key Type.
Key Type
Key Status
Scan Code Up to 2 scan code values are
allowed.
N/A
Normal Key Up to 4 character strings are
allowed.
 Add Shift
 Add Left Ctrl
 Add Left Alt
 Add Right Ctrl
 Add Right Alt
Refer to
Keyboard Wedge Table.
Configure Prefix
Configure Suffix
1) Read the barcode above to apply prefix code or suffix code separately, and follow
steps 2~3. (Max. 4 characters each)
2) Read the “
Hexadecimal Value” barcode on page 128 for the desired character string.
For example, read “2” and “B” for the scanner to prefix or suffix the character [+].
3) Read the “Validate” barcode to complete this setting.

CipherLab 1105 Specifications

General

Type	Handheld bar code reader
Wavelength	630 nm
Sensor type	Laser
Read rate (max)	100 reads/s
Pitch reading angle	-70 - 70 °
Optical sensor resolution	3648 pixels
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Pharmacode, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	-
Connectivity technology	Wired
Product color	Gray
Housing material	Polyurethane
Power consumption (standby)	0.06 W
Power consumption (typical)	0.190 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	145 mm
Width	93 mm
Height	64 mm
Weight	165 g
