CipherLab 1105 User Manual

111
Update
Chapter 5 Applying Formats for Data Editin
g
Additional Fields
Up to five additional fields can be created for each editing format; each of them is numbered from
AF1 to AF5 accordingly.
 If "Keyboard Wedge" is configured for interface, Key Type and Key Status will then become
applicable. You may decide whether or not to apply Key Status when “Normal Key” is selected
for Key Type.
Key Type Key Status
Scan Code Up to 2 scan code values are allowed. N/A
Normal Key Up to 4 character strings are allowed.
 Add Shift
 Add Left Ctrl
 Add Left Alt
 Add Right Ctrl
 Add Right Alt
Refer to
Keyboard Wedge Table.

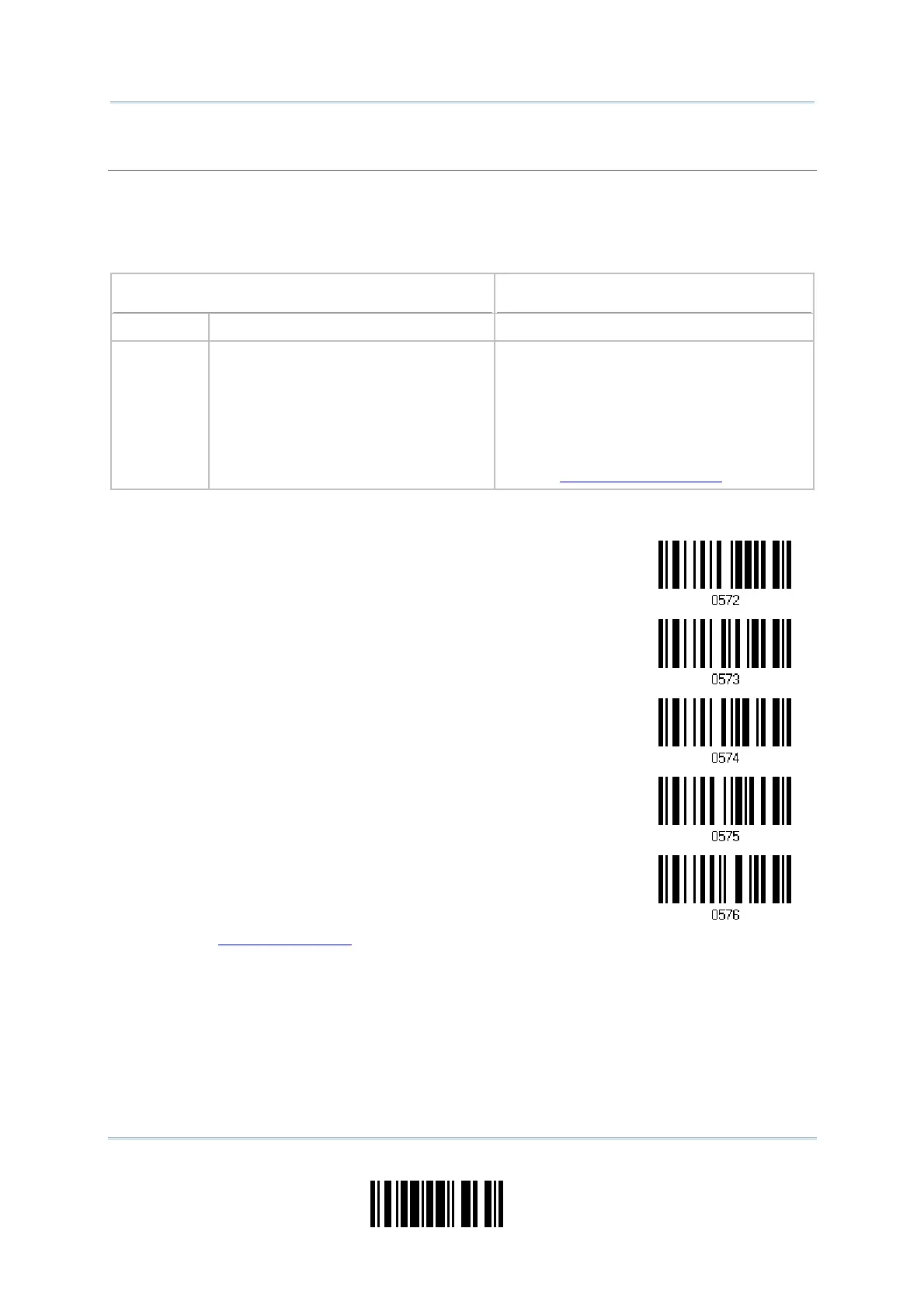

1. Read the barcode below to specify an additional field, one at a time.
Additional Field 1…
Additional Field 2…
Additional Field 3…
Additional Field 4…
Additional Field 5…
2. Read the “Hexadecimal Value” barcode on page 128 for the desired additional field.
3. Read the “Validate” barcode to complete this setting.

CipherLab 1105 Specifications

General

Type	Handheld bar code reader
Wavelength	630 nm
Sensor type	Laser
Read rate (max)	100 reads/s
Pitch reading angle	-70 - 70 °
Optical sensor resolution	3648 pixels
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Pharmacode, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	-
Connectivity technology	Wired
Product color	Gray
Housing material	Polyurethane
Power consumption (standby)	0.06 W
Power consumption (typical)	0.190 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	145 mm
Width	93 mm
Height	64 mm
Weight	165 g
