CipherLab 1105 User Manual

11
Update
Quick Start

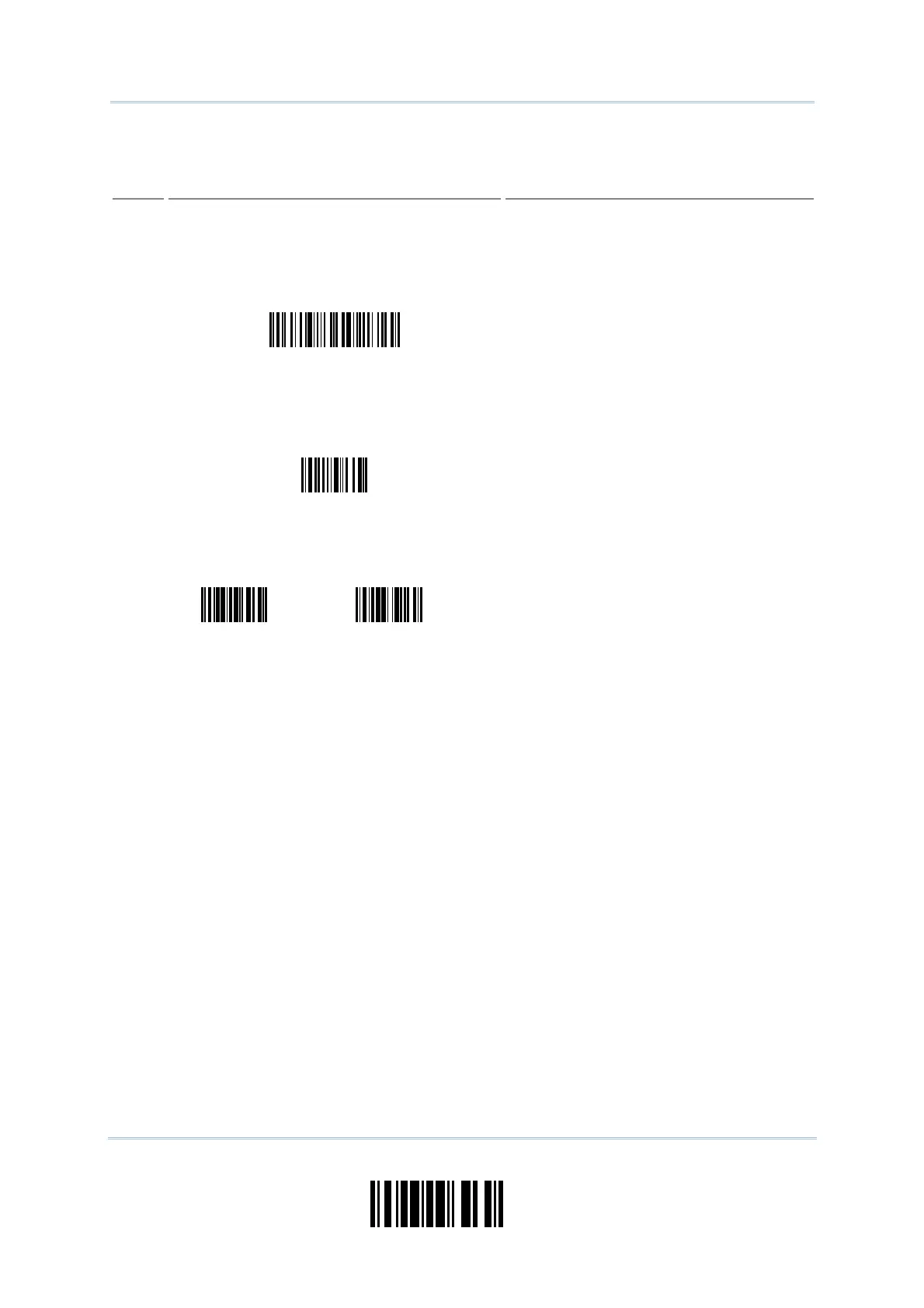

The example below shows how to enable a specific symbology, say, Interleaved 25:
Steps
Action User Feedback if Successful
1 Power on the scanner…
T
he scanner will respond with a long beep
(high tone)
and its LED indicator will
become solid red and go off quickly.
2 Enter the Configuration Mode…
Enter Setup
The scanner
will respond with six beeps
(high-low tone repeats three times), and
its LED indicator will become solid green.
3 Read a Setup barcode…
For example,
Enable Interleaved 25
T
he scanner will respond with two beeps
(high-low tone) if reading a normal setup
barcode.
4 Exit the Configuration Mode…
Update OR Abort
Same as for Enter the Configuration Mode.
5 The scanner will automatically restart itself… Same as for Power on the scanner.
* When any configuration error occurs...
T
he scanner will respond with one long
beep (low tone).

CipherLab 1105 Specifications

General

Type	Handheld bar code reader
Wavelength	630 nm
Sensor type	Laser
Read rate (max)	100 reads/s
Pitch reading angle	-70 - 70 °
Optical sensor resolution	3648 pixels
Linear (1D) barcodes supported	Codabar, Code 128, Code 39, Code 93, GS1-128 (UCC/EAN-128), MSI, Pharmacode, Plessey, Telepen, U.P.C.
2D (matrix & stacked) barcodes supported	-
Connectivity technology	Wired
Product color	Gray
Housing material	Polyurethane
Power consumption (standby)	0.06 W
Power consumption (typical)	0.190 W
Storage temperature (T-T)	-20 - 60 °C
Operating temperature (T-T)	0 - 40 °C
Operating relative humidity (H-H)	10 - 90 %

Weight and Dimensions

Depth	145 mm
Width	93 mm
Height	64 mm
Weight	165 g
