107
Update

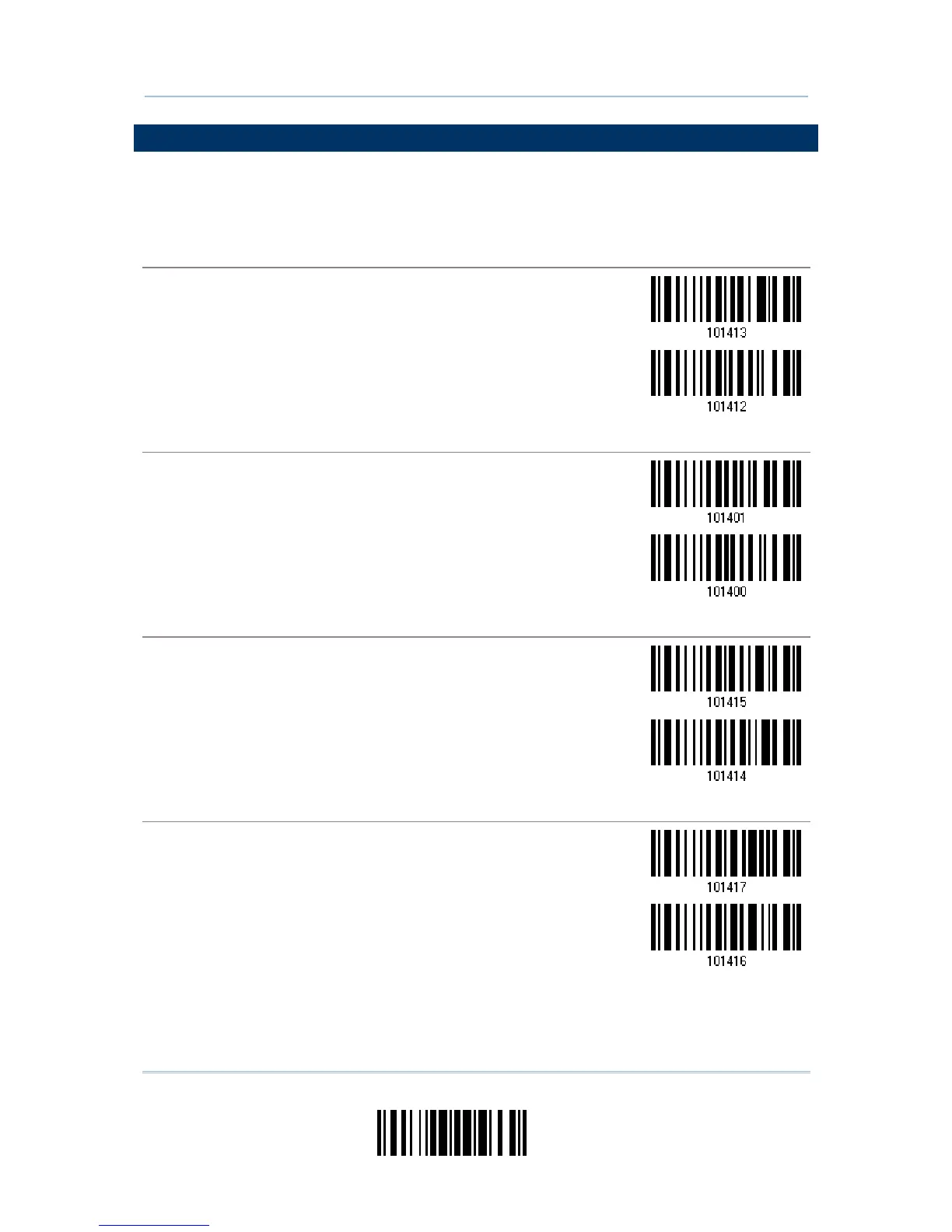

Chapter 4
Defining Output Format
4.5 LENGTH CODE
A two-digit code representing th
e length of barcode data (character count)
can be
inserted in front
of data being transmitted.
Such "Length" code can be individually
enabled or disabled for each symbology.
Length Code for Codabar
Apply
*Do Not Apply
Length Code for Code 39
Apply
*Do Not Apply
Length Code for Code 93
Apply
*Do Not Apply
Length Code for Code 128
Apply
*Do Not Apply
118
120
