79
Update

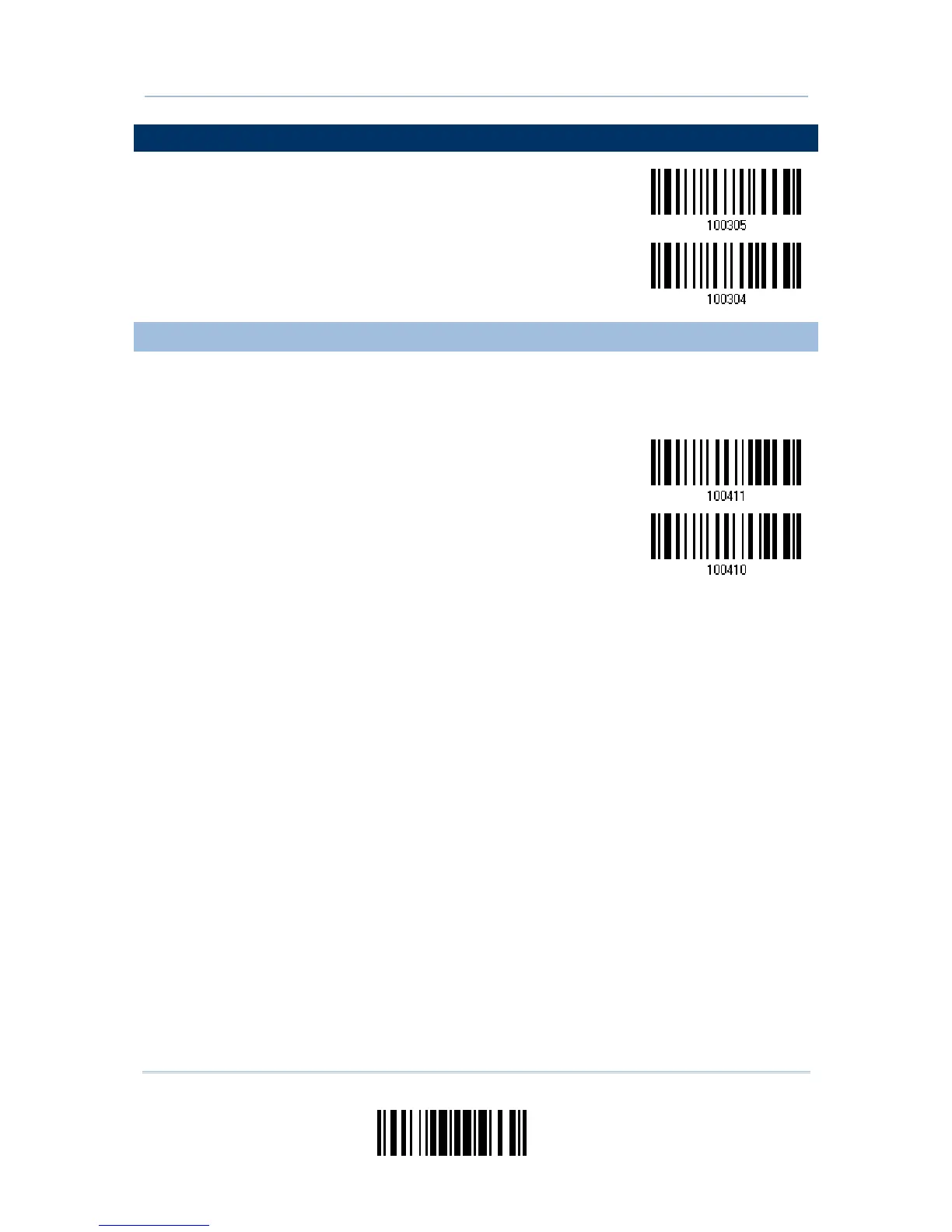

Chapter 3
Changing Symbology Settings
3.13 FRENCH PHARMACODE
Enable
*Disable
3.13.1 TRANSMIT CHECK DIGIT
Decide whether to include the check digit in the data being transmitted.
*
Transmit
F
rench Pharmacode
Check Digit
Do Not Transmit
90
92
