138
End Programming Format
1500 Barcode Scanner
User Guide

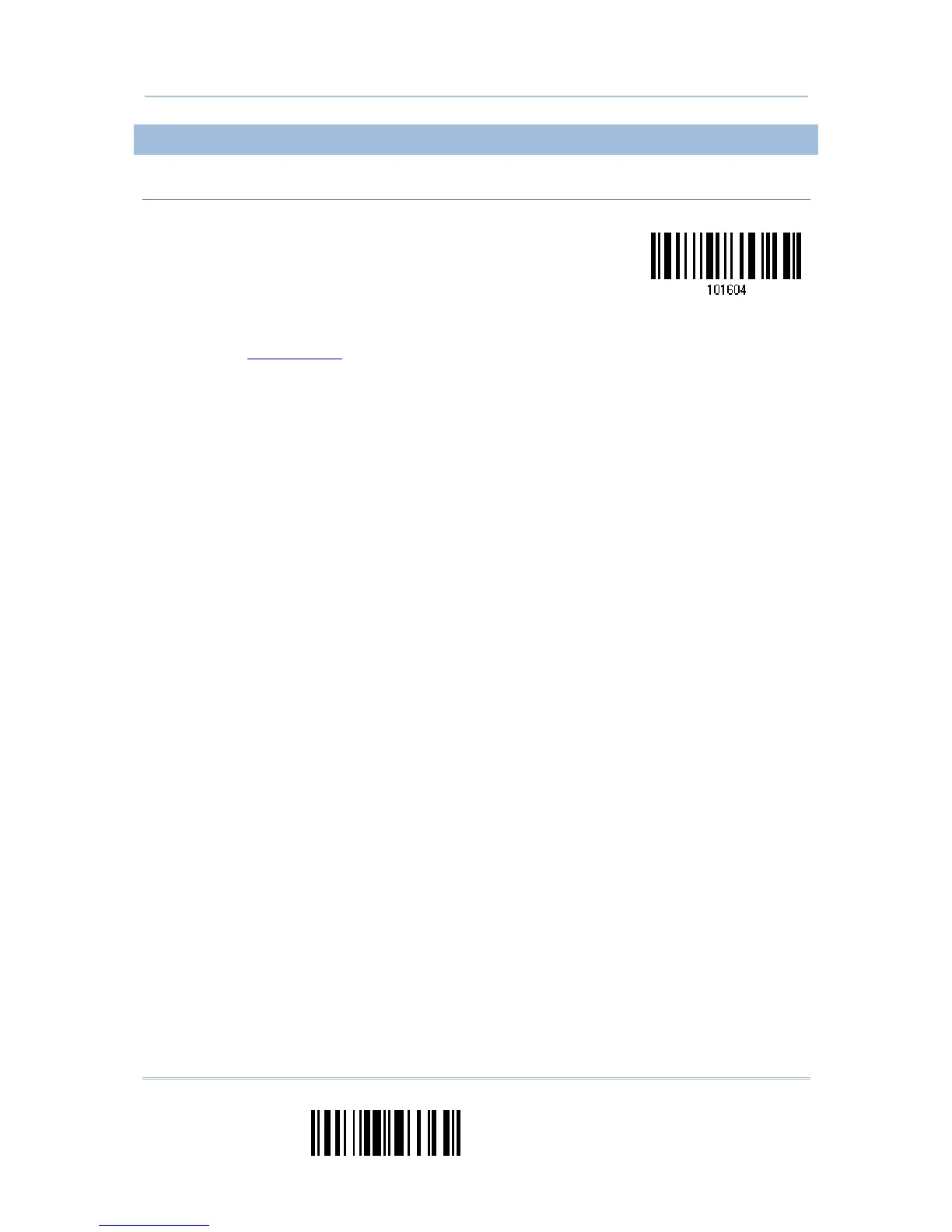

5.4.5 PAUSE FIELD SETTING
Pause Field Time
You can limit the pause time interval (1~16). By default, it is set to 1 second.
Pause Field Time
1
~16 sec.
(*1)
1.
Read the barcode above to specify the time i
nterval for the Pause Field. (It is set to 1 by
default.)
2.
Read the “
Decimal Value
”
barcode on page
153. For example,
read “1” and “0” for setting the
Pause Field Time to 10 seconds.
3.
Read the “Validate” barcode on the same page to complete thi
s setting.
