Enter Setup
1500 Barcode Scanner
User Guide

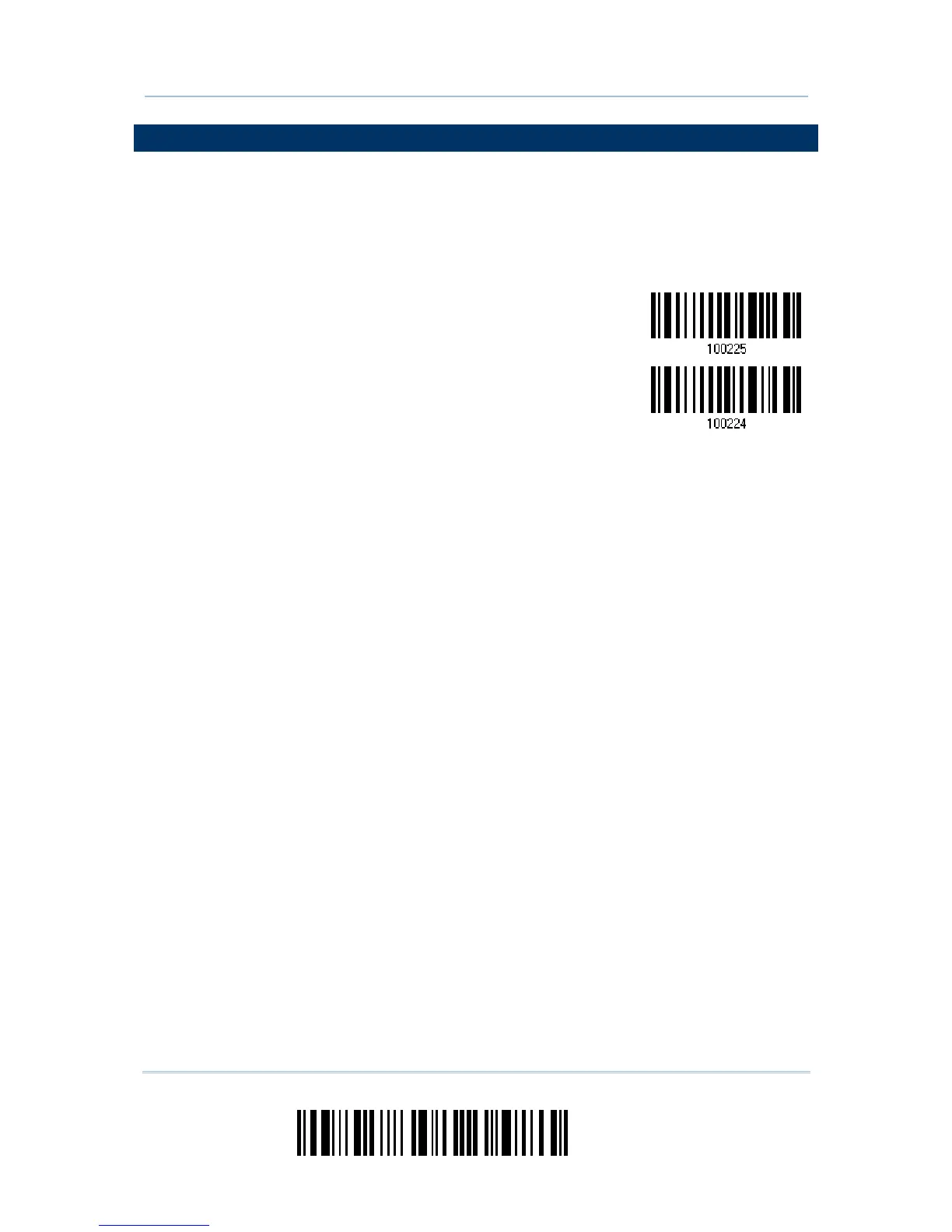

1.12 NEGATIVE BARCODES
Normally, barcodes are printed with the color of
the bars darker than
that of the spaces.
But for negative barcodes, they are printed in
the opposite sense just like negative films.
The spaces of negative barcodes are printed
with a color darker than
that of the bars.
You can configure the s
canner to be
able to read negative barcodes.
Enable
*Disable
41
43
Table of Contents
Default Chapter
3
For Canada
3
Important Notices
3
Care & Maintenance
4
For Product with Laser
4
Release Notes
5
Table of Contents
7
Introduction
13
Inside the Package
14
Product Highlights
14
Symbologies Supported
15
Quick Start
17
Enter Configuration Mode
18
Exit Configuration Mode
18
Default Settings
19
Save User Settings as Defaults
19
Restore User Defaults
19
Restore System Defaults
19
Read a Setup Barcode
20
Configure Parameters
20
List the Current Settings
24
One-Scan Setup Barcodes
26
Chapter 1
27
Power
27
Transmit Buffer
27
Understanding the Barcode Scanner
27
LED Indicator
28
Good Read LED
28
Good Read LED Duration
28
Beeper
29
Beeper Volume
29
Good Read Beep
30
Send "NR" to Host
31
Scan Modes
32
Continuous Mode
33
Test Mode
33
Laser Mode
34
Auto off Mode
34
Auto Power off Mode
34
Alternate Mode
35
Aiming Mode
35
Multi-Barcode Mode
36
Scanning Timeout
37
Delay between Re-Read
38
Read Redundancy for All Symblogies
39
Addon Security for UPC/EAN Barcodes
40
Auto-Sense Mode (1500 Only)
41
Negative Barcodes
42
Effective Decoding Area
43
Positioning Window
43
Adjusting Window
44
Selecting Output Interface
45
Keyboard Wedge
46
Activate Keyboard Wedge & Select Keyboard Type
47
Keyboard Settings
48
Inter-Character Delay
56
Inter-Function Delay
56
Activate RS-232 Interface
57
Baud Rate
57
Rs-232
57
Data Bits
58
Parity
58
Stop Bit
58
Flow Control
59
Inter-Character Delay
60
Inter-Function Delay
60
ACK/NAK Timeout
61
Wand Emulation
62
Activate Wand Emulation
62
Normal State
62
Bar State
62
Module Time
63
Margin Time
64
Output Format
65
Changing Symbology Settings
67
Chapter 3
68
Codabar
68
Security Level
68
Start/Stop Characters Selection
68
Start/Stop Transmission
69
CLSI Conversion
69
Code 25 - Industrial 25
70
Select Start/Stop Pattern
70
Verify Check Digit
71
Transmit Check Digit
71
Code Length Qualification
72
Code 25 - Interleaved 25
73
Select Start/Stop Pattern
73
Verify Check Digit
74
Transmit Check Digit
74
Code Length Qualification
75
Code 25 - Matrix 25
76
Select Start/Stop Pattern
76
Verify Check Digit
77
Transmit Check Digit
77
Code Length Qualification
78
Code 39
79
Transmit Start/Stop Characters
79
Verify Check Digit
79
Transmit Check Digit
80
Standard/Full ASCII Code 39
80
Security Level
80
Code 93
81
Code 128
81
Security Level
81
Ean-8
82
Convert to EAN-13
83
Transmit Check Digit
83
Ean-13
84
Convert to ISBN
85
Convert to ISSN
85
Transmit Check Digit
85
Security Level
86
Gs1-128 (Ean-128)
87
Transmit Code ID
87
Field Separator (GS Character)
87
Isbt 128
88
Msi
89
Verify Check Digit
89
Transmit Check Digit
89
Code Length Qualification
90
French Pharmacode
91
Transmit Check Digit
91
Italian Pharmacode
92
Transmit Check Digit
92
Plessey
93
Convert to UK Plessey
93
Transmit Check Digit
93
GS1 Databar (RSS Family)
94
Select Code ID
94
GS1 Databar Omnidirectional (RSS-14)
95
GS1 Databar Expanded (RSS Expanded)
97
GS1 Databar Limited (RSS Limited)
98
Telepen
99
Telepen Output - Full Ascii/Numeric
99
Upc-A
100
Convert to EAN-13
101
Transmit System Number
101
Transmit Check Digit
101
Upc-E
102
Select System Number
103
Convert to UPC-A
103
Transmit System Number
104
Transmit Check Digit
104
Chapter 4
105
Letter Case
105
Character Substitution
106
Select a Set for Character Substitution
107
Symbologies for Character Substitution (All 3 Sets)
108
Prefix/Suffix Code
114
Code ID
115
Select Pre-Defined Code ID
115
Change Code ID
117
Clear Code ID Settings
118
Length Code
119
Multi-Barcode Editor
123
Edit a Concatenation of Barcodes
124
Activate the Concatenation of Barcodes
125
Removal of Special Character
126
Defining Output Format
105
Applying Formats for Data Editing
127
Chapter 5
128
Activating Editing Formats
128
Activate Editing Formats
128
Exclusive Data Editing
129
How to Configure Editing Formats
130
Select Format to Configure
131
Restore Default Format
132
Configuring Format - Define Data Criteria
133
Applicable Code Type
133
Data Length
140
Matching String & Location
141
Configuring Format - Define Data Field
142
Start Position
142
Field Adjustment
142
Total Number of Fields
143
Field Settings
144
Pause Field Setting
150
Configuring Format - Define Transmission Sequence
151
Programming Examples
153
Example I
153
Example II
154
Specifications
155
Firmware Upgrade
157
Host Serial Commands
159
Serial Commands
159
Example
160
Keyboard Wedge Table
161
Key Type & Status
162
Key Type
162
Key Status
162
Example
163
Numeral Systems
165
Decimal System
165
Hexadecimal System
166
ASCII Table
167
4
Based on 1 rating
Ask a question
Give review
Questions and Answers:
