STORAGE INFORMATION
Provides storage status of the internal storage (which is divided into System files and
User data) and external storage on the mobile computer.
Label
Description
System Shows total size and available size of storage under the System directory.
USER_DATA Shows total size and available size of storage under the USER_DATA
directory.
Storage Card Shows total size and available size of storage on the storage card.
STYLUS
 Double-tap tab: Configures and tests double-tap sensitivity.
 Calibration tab: Recalibrates the touch screen when it is no longer responding
correctly to stylus movement.
SYSTEM
 General tab: Displays OS and system hardware information.
 Device Name tab: Tap a name and description for the mobile computer.
 Copyrights tab: Views copyright statements.

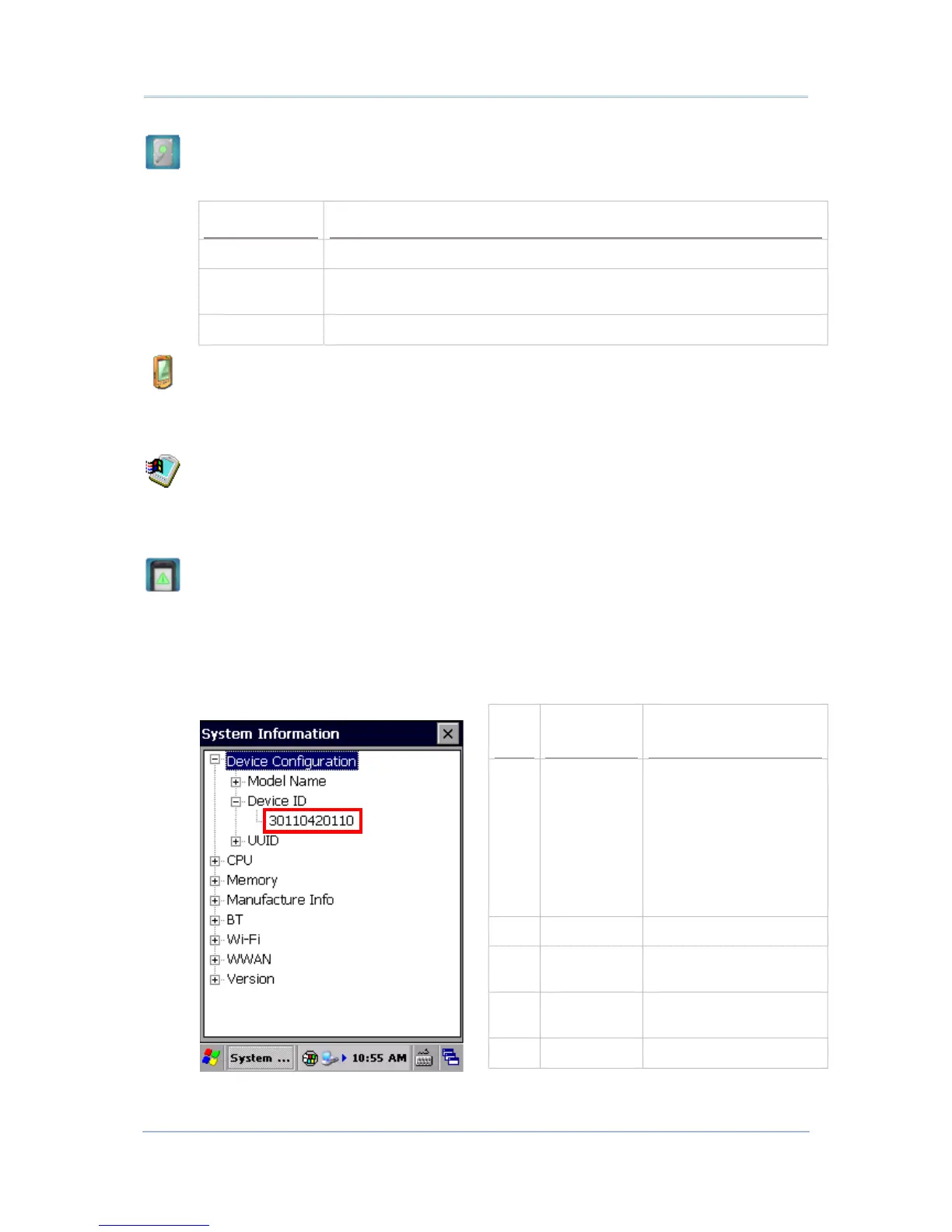

SYSTEM INFORMATION
Displays some of the mobile computer’s info such as manufacturer, firmware version,
MAC address, memory capacity and so on. Tap each node to expand the tree structure
list and view data about the given items.
This page also displays the mobile computer’s Device ID, a sequence of digits that
deliver information about the hardware integrated on the mobile computer. The coding
rule is tabulated as below:
Digit
Pair
Hardware Code
1
st
Barcode
Reader
0: None:
1: Laser
2: Laser
3: 2D imager
4: Long range laser
5: 2D imager
7: Extra long range 2D
imager
9: Extra long range laser
2
nd
-- N/A
3
rd
Bluetooth 0: None
1: Bluetooth
4
th
Wi-Fi 0: None
1: Wi-Fi
5
th
-- N/A

CipherLab 9700 Specifications

General

Battery voltage	3.7 V
Battery capacity	3600 mAh
Battery life (max)	13 h
Display diagonal	3.5 \
Touchscreen type	Resistive
Display resolution	640 x 480 pixels
Flash memory	4 GB
Internal memory	0.512 GB
Internal memory type	DDR
Compatible memory cards	SD, SDHC
Processor family	OMAP 3730
Processor frequency	1 GHz
Processor manufacturer	Texas Instruments
GPS (satellite)	-
Operating system installed	Windows Embedded CE 6.0 R3
Data network	Not supported
Wi-Fi standards	802.11a, 802.11b, 802.11g
Bluetooth version	2.1+EDR
Security algorithms	WEP, WPA, WPA-EAP, WPA-PSK, WPA-TKIP, WPA2-AES, WPA2-EAP, WPA2-PSK
Built-in camera	No
Storage temperature (T-T)	-30 - 70 °C
Operating temperature (T-T)	-20 - 50 °C
Operating relative humidity (H-H)	10 - 90 %
Certification	FCC, CE, RoHS, REACH, WEEE, ErP, BSMI, NCC, SRRC, CCC, ANATEL, RCM
Product color	Black, Yellow
Keyboard layout	Alphanumeric
International Protection (IP) code	IP65

Weight and Dimensions

Depth	47 mm
Width	87 mm
Height	214 mm
Weight	447 g
