----- Supply network analyzer CVM 96 Ethernet -------- ----- Page No. 34

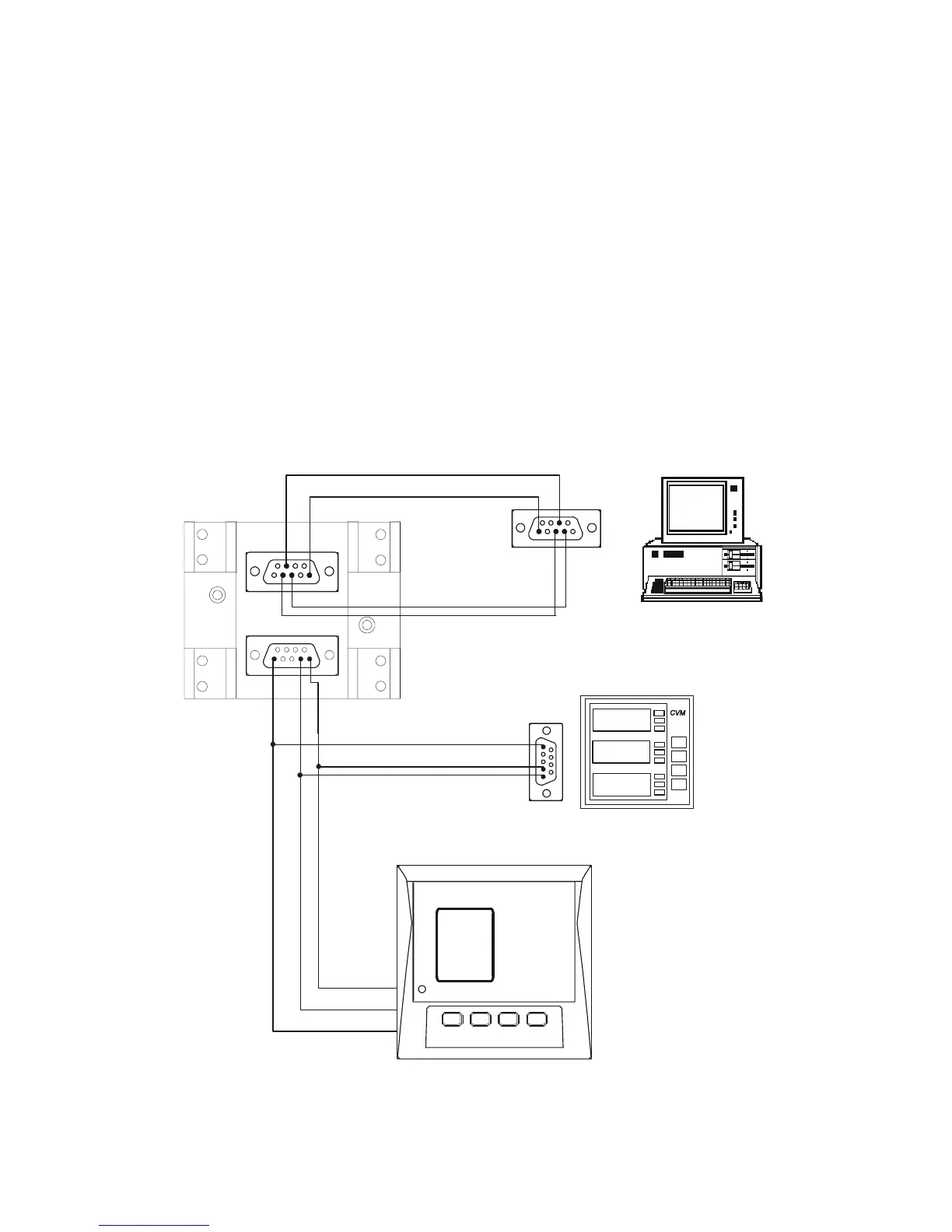

10.2.- RS-485 TYPE CONNECTION TO A RS-232 TYPE INPUT OF A PC
A1
A2
5
1
2
4 ( - )
3 ( + )
5 GND
5
1
2
7
5
2
3
5
7
3
2
RS-485
RS-232
CONVERTER
DB-9
RS-232 / RS-485
PC
CVM 96
CVM 96
*If the conversor RS232/485 with RTS control (code 770208) is used, it is no necessary
to connect the pin 7 on the RS232 side.
