Circutor Raption Series Service Manual

Raption
104 Service Manual

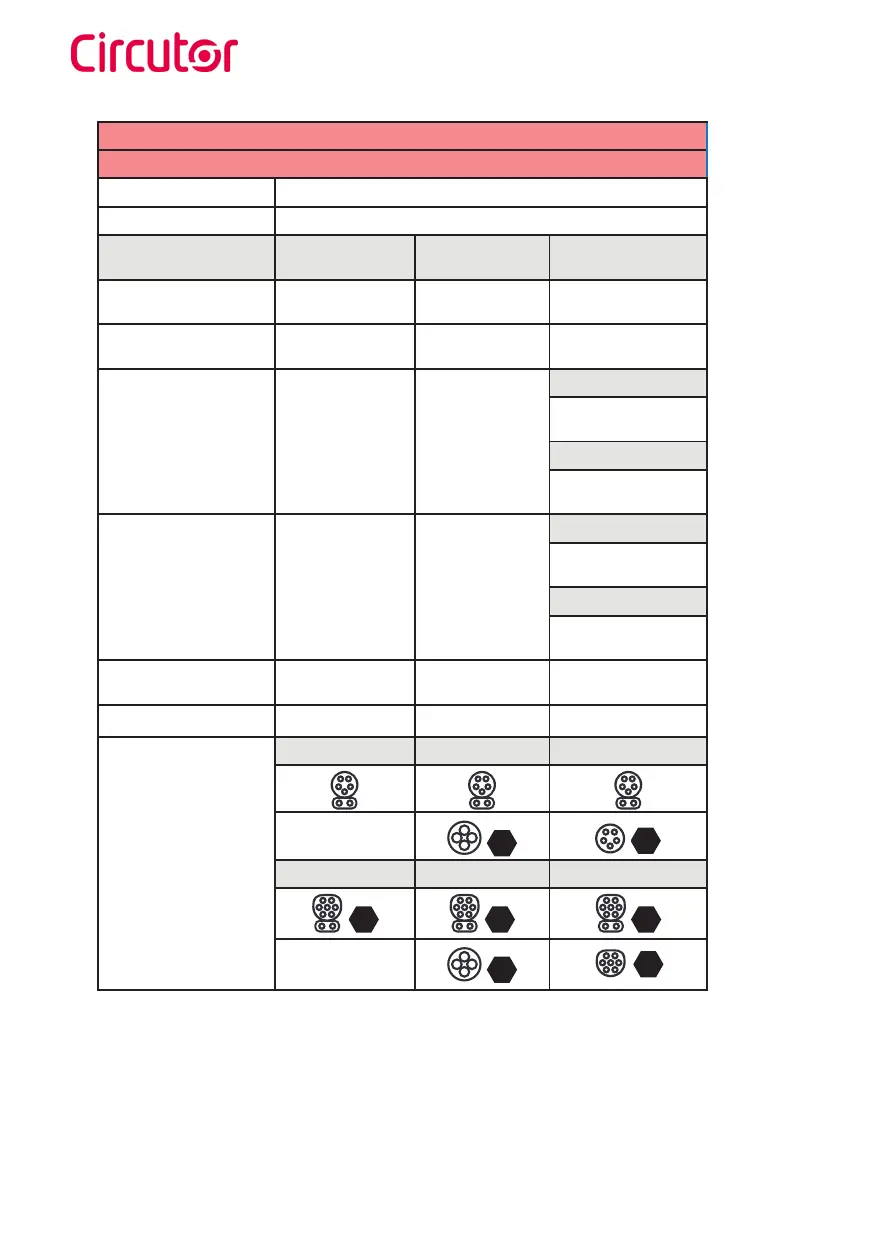

MODELS SPECIFICATIONS
Raption 50 HV / Raption 50 EVO - 400V Models
Raption 50 HV Power output DC of 50 kW (non upgradable).
Raption 50 EVO Power output DC of 50 kW (upgradable up to 100 kW).
MODELS
CCS1
CCS2
CCS1 CHA
CCS2 CHA
CCS1 T1C32
CCS2 T2C32
Maximum AC input
current
76 A 76 A 108 A
Required power supply
capacity
53 kVA 53 kVA 75 kVA
Maximum output
power
DC: 50 kW
(@400Vdc)
DC: 50 kW
(@400Vdc)
CCS1 T1C32
DC: 50 kW(@400Vdc)
AC: 7.4 kW
CCS2 T2C32
DC: 50 kW(@400Vdc)
AC: 22 kW
Output voltage range DC: 150 - 920 Vdc DC: 150 - 920 Vdc
CCS1 T1C32
DC: 150 - 920 Vdc
AC: 230 V~
CCS2 T2C32
DC: 150 - 920 Vdc
AC: 400 V~
Maximum output
current
DC: 125 A DC: 125 A
DC: 125 A
AC: 32 A
Number of connectors 1 2 2
Connector type
CCS1 CCS1 CHA
CCS1 T1C32
M
B
CCS2 CCS2 CHA CCS2 T2C32
K K K
M
C
