Raption

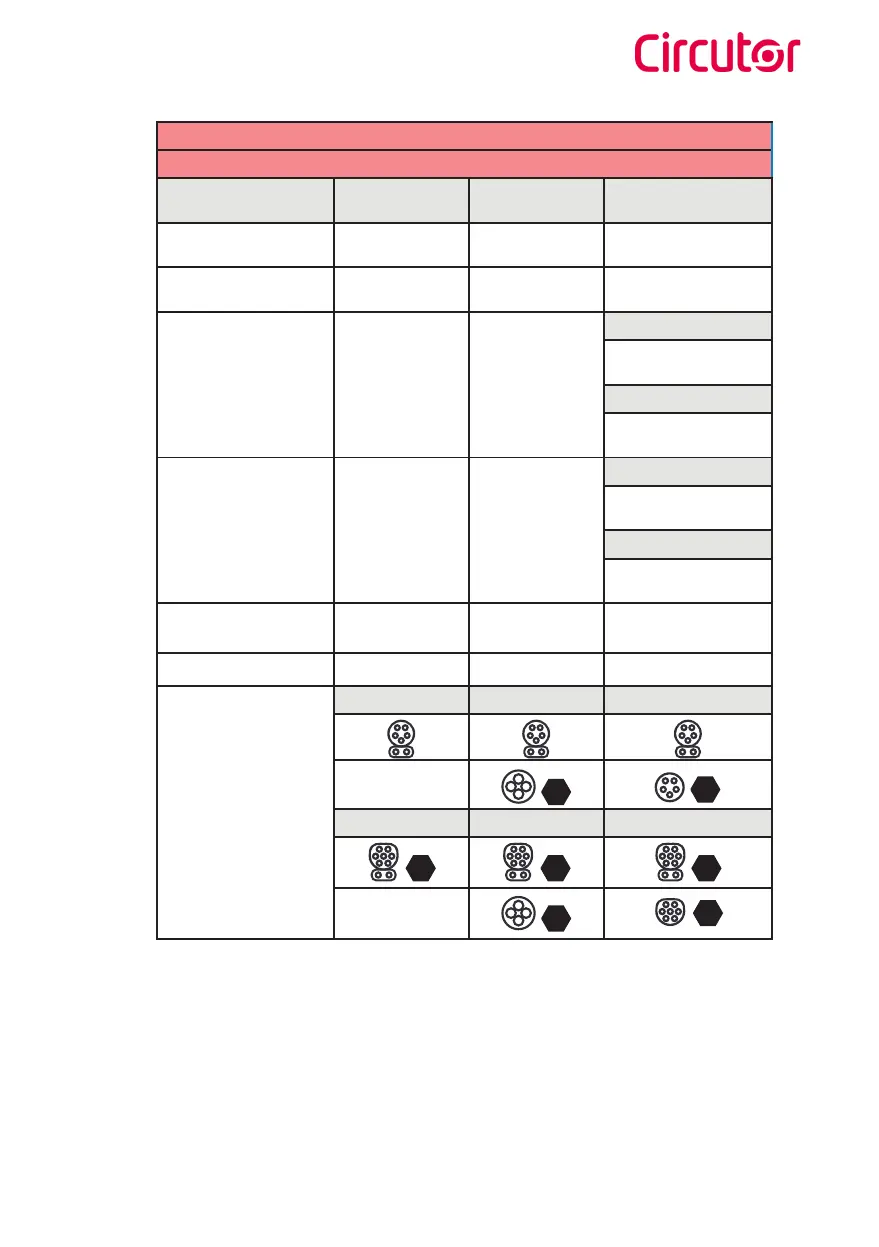

MODELS SPECIFICATIONS
Raption 100 - 400V Models
MODELS
CCS1
CCS2
CCS1 CHA
CCS2 CHA
CCS1 T1C32
CCS2 T2C32
Maximum AC input
current
160 A 160 A 192 A
Required power supply
capacity
110 kVA 110 kVA 132 kVA
Maximum output
power
DC: 100 kW
(@400Vdc)
DC: 100 kW
(@400Vdc)
CCS1 T1C32
DC: 100 kW(@400Vdc)
AC: 7.4 kW
CCS2 T2C32
DC: 100 kW(@400Vdc)
AC: 22 kW
Output voltage range DC: 150 - 920 Vdc DC: 150 - 920 Vdc
CCS1 T1C32
DC: 150 - 920 Vdc
AC: 230 V~
CCS2 T2C32
DC: 150 - 920 Vdc
AC: 400 V~
Maximum output
current
DC: 250 A
DC: 250 A (CCS)
DC: 200 A (CHA)
DC: 250 A (CCS)
AC: 32 A
Number of connectors 1 2 2
Connector type
CCS1 CCS1 CHA
CCS1 T1C32
M
B
CCS2 CCS2 CHA
CCS2 T2C32
K K K
M
C
