Circutor Raption Series Service Manual

Service Manual 21
Raption

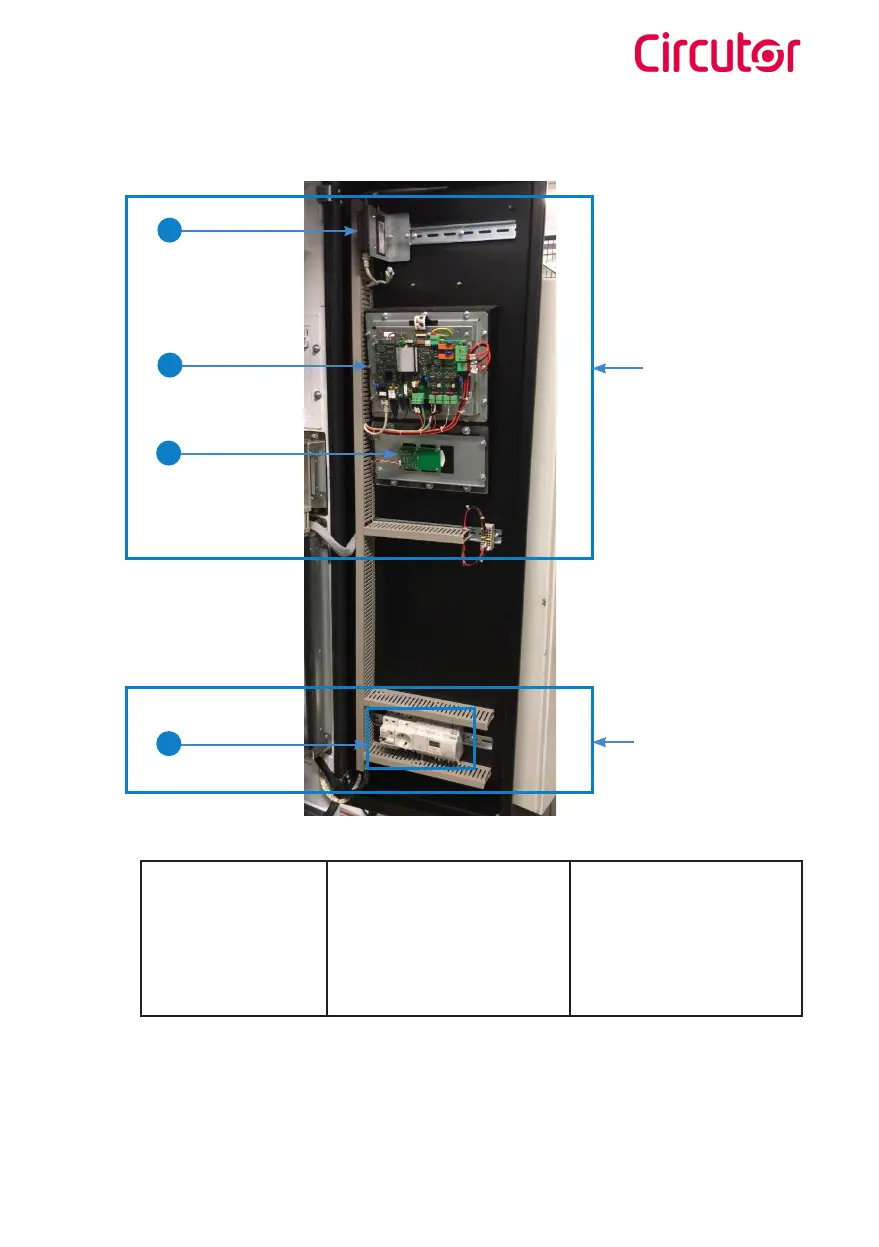

5 — RIGHT DOOR
1- Router (A12.2) for
Raption 50
1- Router (A15.2) for
Raption 50 HV / Raption
50 EVO / Raption 100
2- PC Screen (A12.1) for Raption
50
2- PC Screen (A15.3) for Raption
50 HV / Raption 50 EVO / Raption
100
3- RFID card reader (B12.1) for
Raption 50
3- RFID card reader (B15.2) for
Raption 50 HV / Raption 50
EVO / Raption 100
1
3
2
*
Common for all
Raption models
Only for Raption 50 HV,
Raption 50 EVO and
Raption 100
Note: Raption 50 model has no components located in the bottom part of the right door.
