Raption
20 Service Manual
4 — LEFT DOOR
On the left door it is placed the CHAdeMO and CCS holders and beacon lights. Optionally,
locking system can be included too.
Also, there is one LED over each holder indicating the lock state:
- Red → Connector locked
- Off → Connector unlocked
When using a unit with ‘Mechanical connector locking’ accesory at DC holders, is not
possible to pull back the connectors from holders until user has shown RFID card and
selected the connector he wants to charge with.
There is one label placed between the CHAdeMO and the CCS holders explaining about
this functionality. Follow the instructions given in this label and the HMI screen.

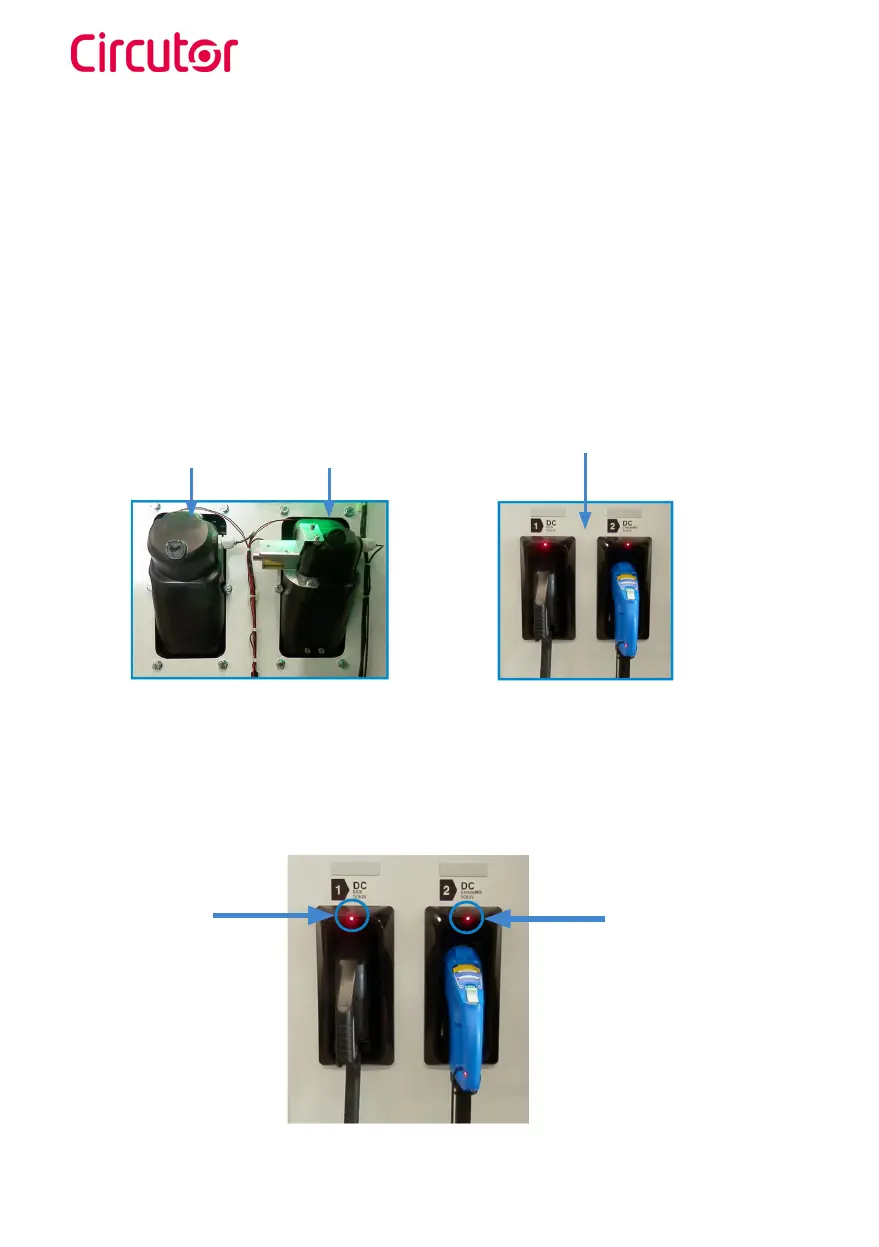

Detection position
Locking coil
Space for the instruction
label
Inside view
Outside view
