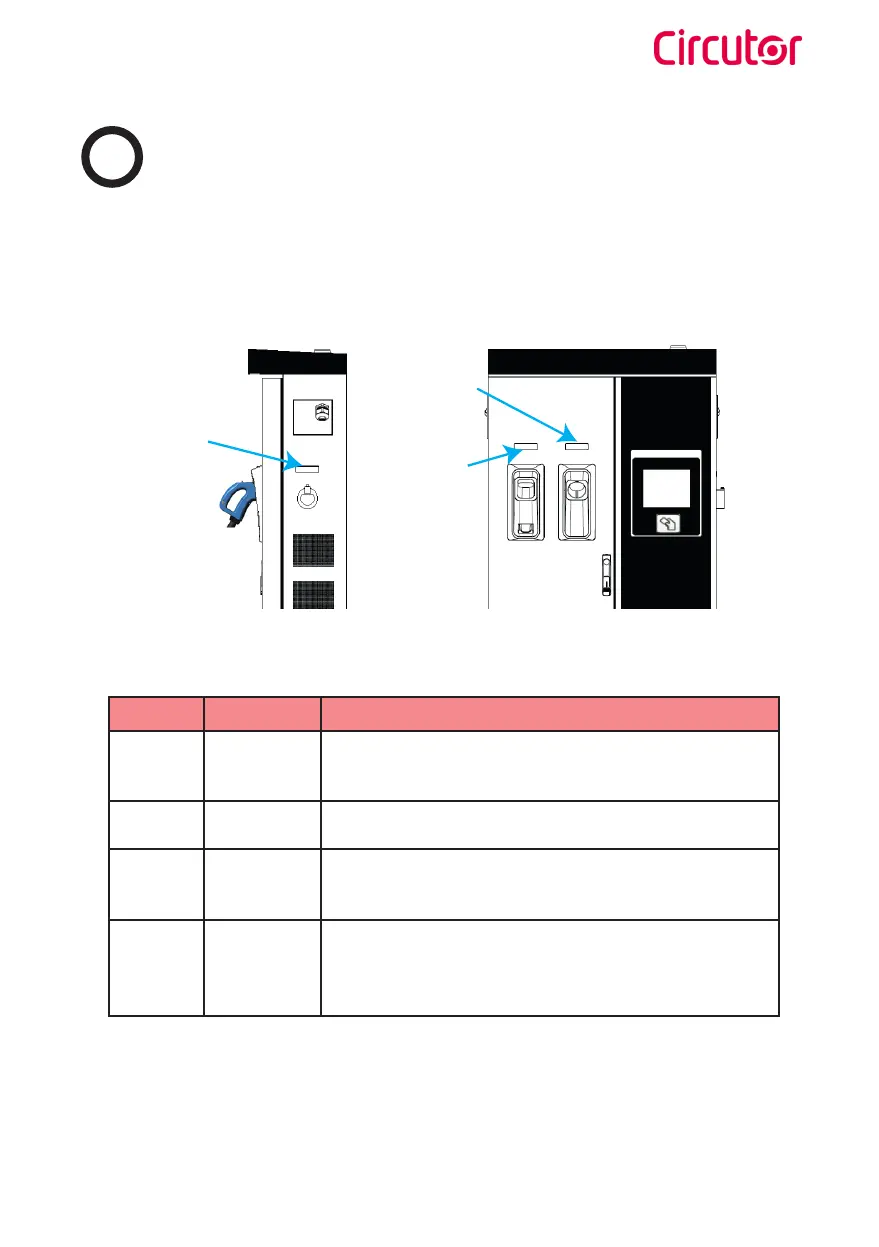

Status Beacon lights
Over each connector there is a beacon light, it indicates the state of charge in which the
socket/connector is located.
AC LED Beacon
CHA LED Beacon
CCS LED Beacon
Colour Status Description
Green Available The connector or socket is available to start a charging ses-
sion
Blue Charging The connector or socket is performing a charging session
Cyan Booked
(OCPP 1.5)
The connector or socket has been booked by system opera-
tor through OCPP
Red Error
The Charging Station indicates that the emergency button
has been activated or some error has occurred. Check the
HMI Screen and follow the instructions
