Raption
52
Instruction Manual
E
Setup Webpage
Setup webpage allows managing networking setup, upgrading devices and other options.
Once the Service PC is already connected with Charge Point, it is possible to open Setup
Webpage throug the IP entered. In the example shown in the previous section, it has been set
192.168.1.50

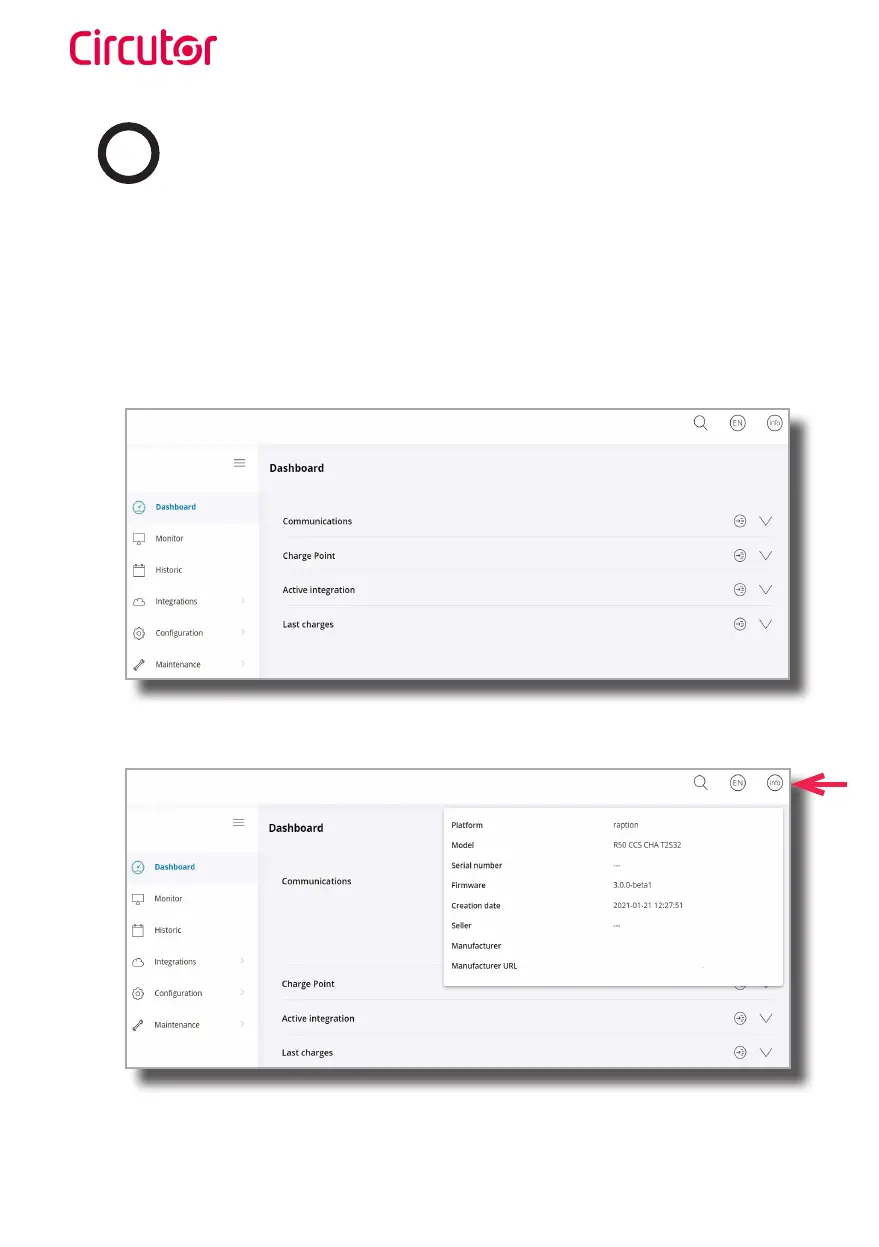

Open a web browser on the service PC and enter this IP, next image will appear.
The webpage opened shows the ‘Dasboard’ Overview as a main screen, but, there are many
more options. In the next points, it will be explained.
In the right top corner it is shown the search engine icon, the language list and information
about the Charge Point. Once the info button is pressed, it appears the screen displayed above,
with model and firmware version information, among others.
