Circutor Raption Series - 4. Configuration Guide; Introduction to Charge Point Configuration

Raption
44
Instruction Manual
4
The Charge Point can be configured and monitored to establish owner preferences or
specific setup using integrated Ethernet communication port allocated in HMI screen
device (see below).
Once Service PC is configured as bellow procedure and connection established with the
Charge Point, direct access to the main setup page will be showed.
The Charge Point is shipped from the factory with default network setting of “DHCP
enabled”. It means that the Charge Point will try to obtain an IP address from a DHCP
server available on the network.
Step by step below guide detailed setup an IP address to the Charge Point in case there
is no DHCP server available on the network.
A
Introduction

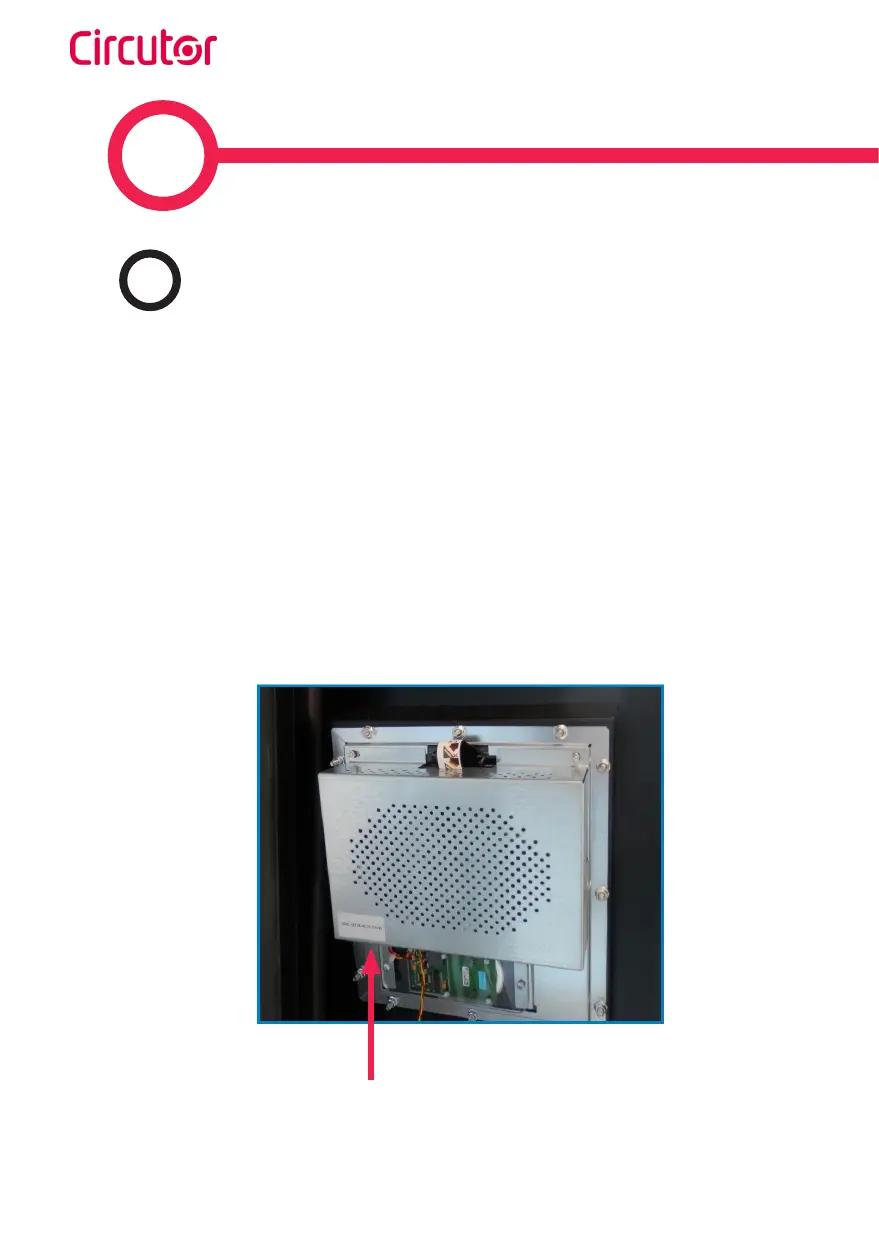

The Ethernet port is located at the bottom left side of the rear part of the HMI screen.
