Network topology
Connecting the Service PC with Charge Point needs to be done with static IP address and
TCP/IP v4 protocol.

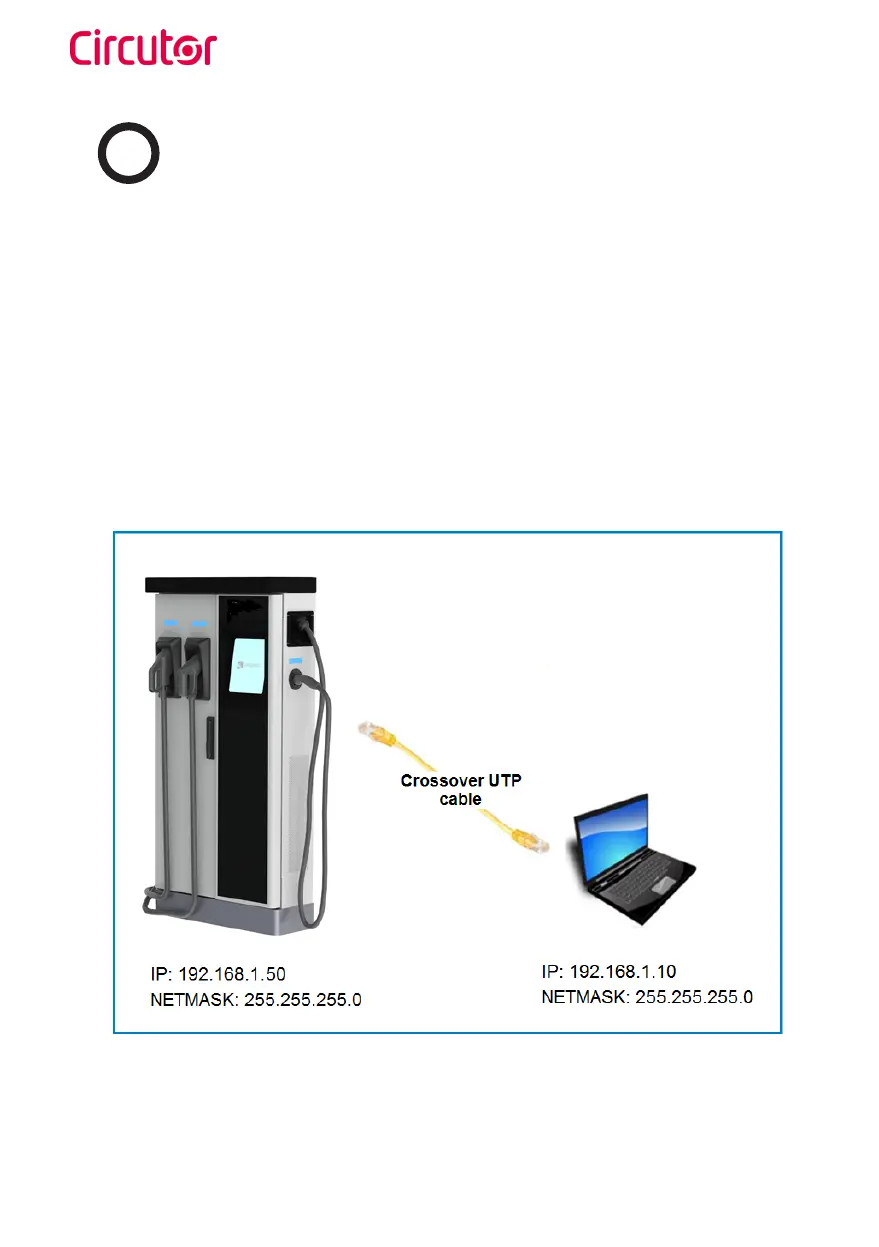

Next section shows how to do this configuration. Below image shows Ethernet connection
topology and the IP addresses used in this guide as example.
For Service PC → IP: 192.168.1.10 NETMASK: 255.255.255.0
For Charge Point→ IP: 192.168.1.50 NETMASK: 255.255.255.0
