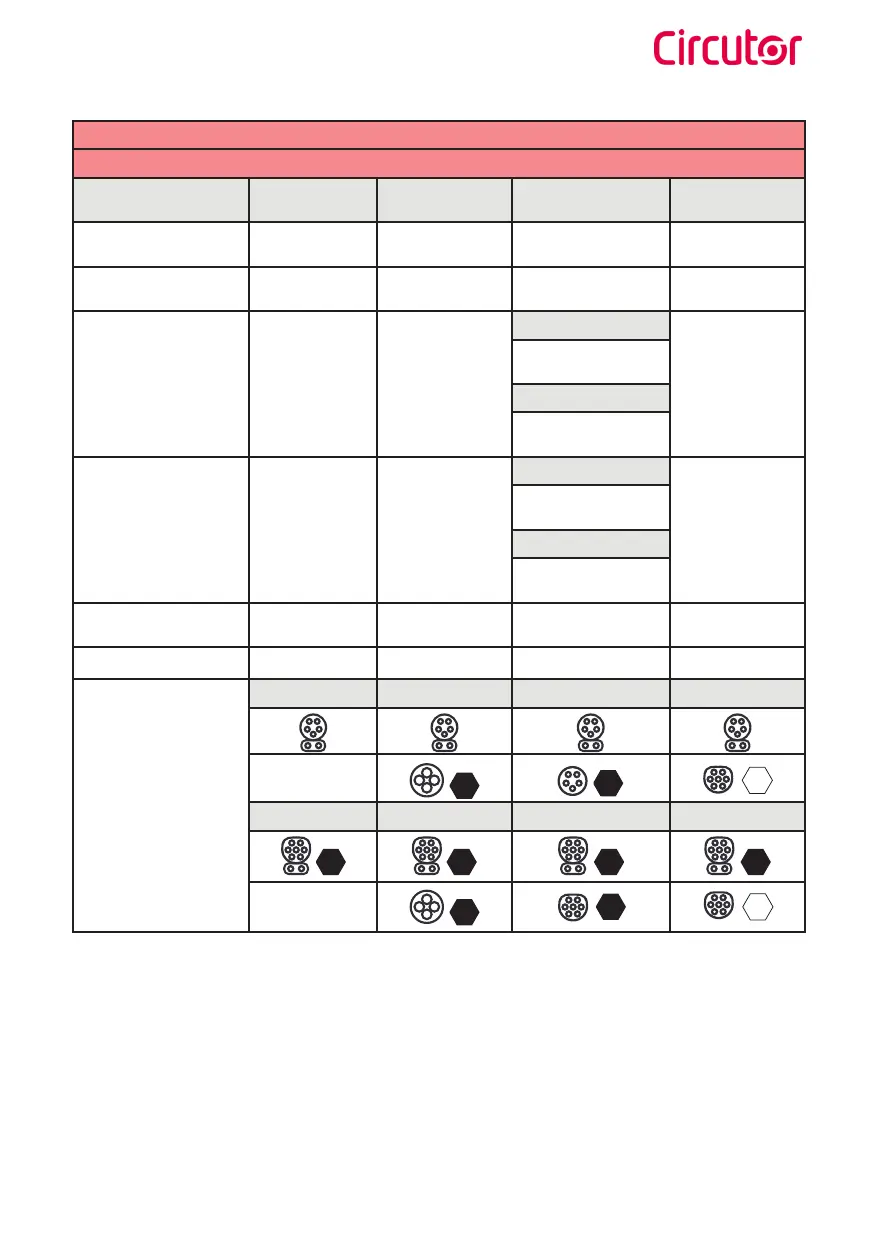

MODELS SPECIFICATIONS
Raption 50 - 400V Models
MODELS
CCS1
CCS2
CCS1 CHA
CCS2 CHA
CCS1 T1C32
CCS2 T2C32
CCS1 T2S32
CCS2 T2S32
Maximum AC input
current
76 A 76 A 108 A 108 A
Required power supply
capacity
53 kVA 53 kVA 75 kVA 75 kVA
Maximum output
power
DC: 50 kW
(@400Vdc)
DC: 50 kW
(@400Vdc)
CCS1 T1C32
DC: 50 kW
(@400Vdc)
AC: 22 kW
DC: 50 kW(@400Vdc)
AC: 7.4 kW
CCS2 T2C32
DC: 50 kW(@400Vdc)
AC: 22 kW
Output voltage range DC: 50 - 500 Vdc DC: 50 - 500 Vdc
CCS1 T1C32
DC: 50 - 500 Vdc
AC: 400 V~
DC: 50 - 500 Vdc
AC: 230 V~
CCS2 T2C32
DC: 50 - 500 Vdc
AC: 400 V~
Maximum output
current
DC: 125 A DC: 125 A
DC: 125 A
AC: 32 A
DC: 125 A
AC: 32 A
Number of connectors 1 2 2 2
Connector type
CCS1 CCS1 CHA
CCS1 T1C32
CCS1 T2S32
M
B
C
CCS2 CCS2 CHA CCS2 T2C32 CCS2 T2S32
K K K K
M
C C
