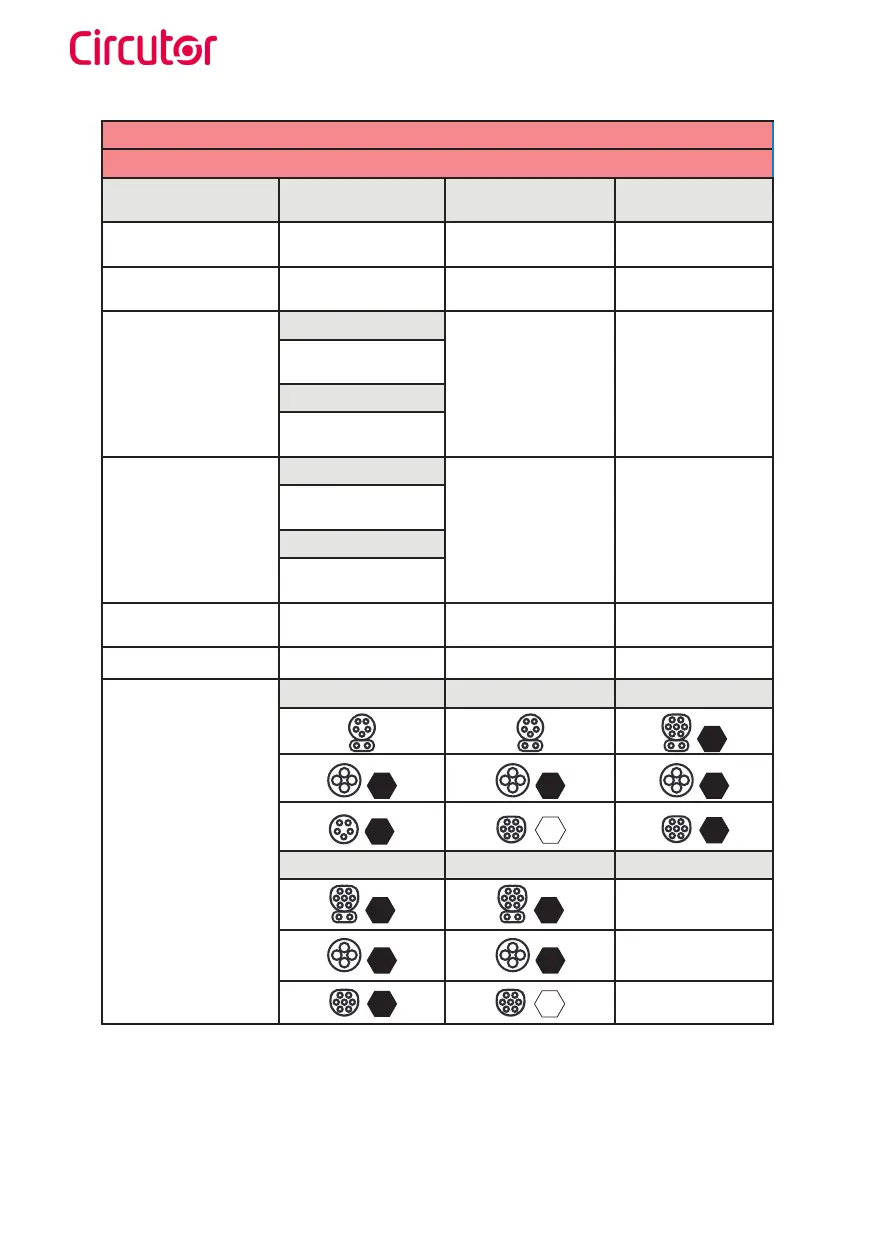

MODELS SPECIFICATIONS
(Continuation) Raption 50 - 400V Models
MODELS
CCS1-CHA T1C32
CCS2-CHA T2C32
CCS1-CHA T2S32
CCS2-CHA T2S32
CCS2-CHA T2C63
Maximum AC input
current
108 A 108 A 138 A
Required power supply
capacity
75 kVA 75 kVA 96 kVA
Maximum output
power
CCS1-CHA T1C32
DC: 50 kW (@400Vdc)
AC: 22 kW
DC: 50 kW(@400Vdc)
AC: 43 kW
DC: 50 kW(@400Vdc)
AC: 7.4 kW
CCS2-CHA T2C32
DC: 50 kW(@400Vdc)
AC: 22 kW
Output voltage range
CCS1-CHA T1C32
DC: 50 - 500 Vdc
AC: 400 V~
DC: 50 - 500 Vdc
AC: 400 V~
DC: 50 - 500 Vdc
AC: 230 V~
CCS2-CHA T2C32
DC: 50 - 500 Vdc
AC: 400 V~
Maximum output
current
DC: 125 A
AC: 32 A
DC: 125 A
AC: 32 A
DC: 125 A
AC: 63 A
Number of connectors 3 3 3
Connector type
CCS1-CHA T1C32 CCS1-CHA T2S32
CCS2-CHA T2C63
K
M M M
B
C
C
CCS2-CHA T2C32 CCS2-CHA T2S32
K K
M M
C C
