Circutor Raption Series - Page 123

Raption
123Instruction Manual

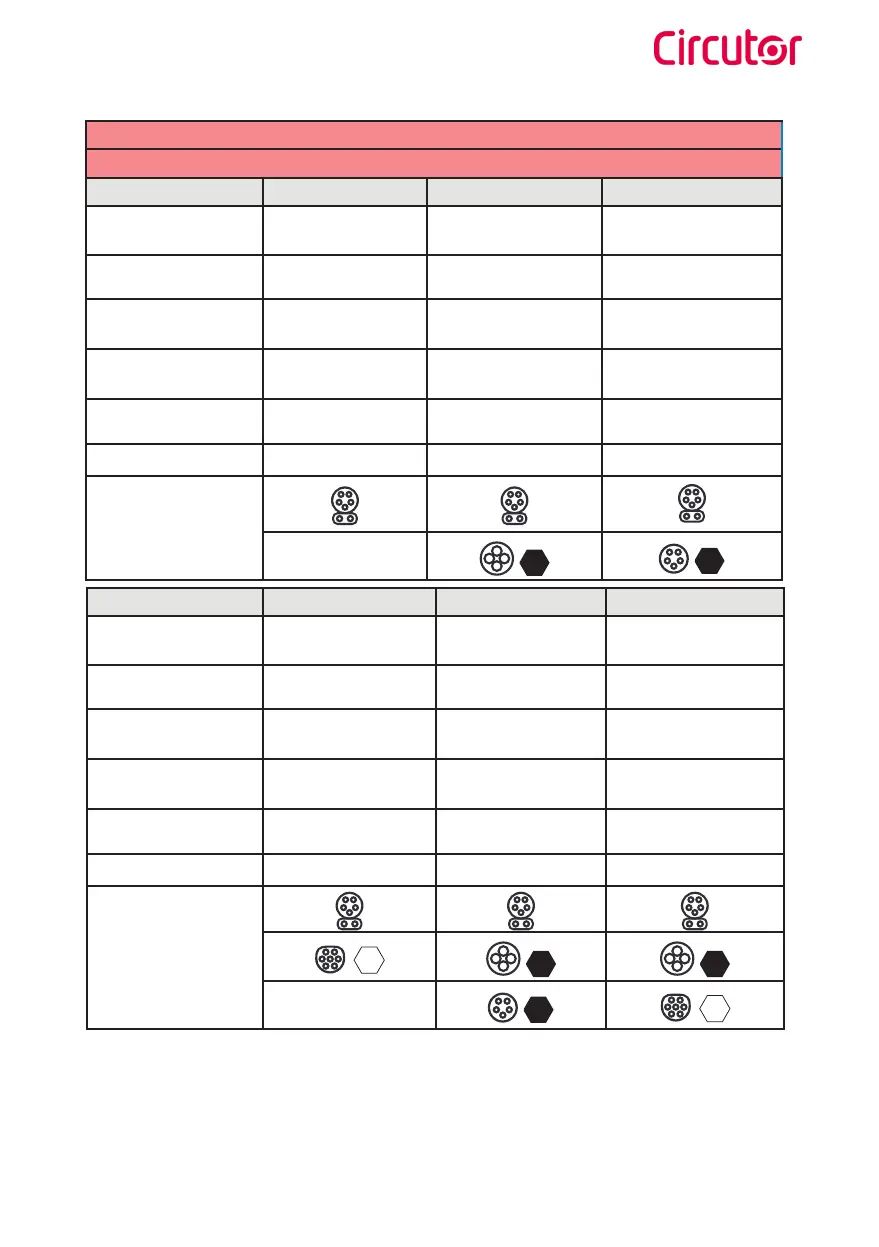

MODELS SPECIFICATIONS
Raption 50 - 480V Models
MODELS CCS1 CCS1 CHA CCS1 T1C32
Maximum AC input
current
63 A 63 A
63 A (@480V 3F)
35 A (@208-240V F-N)
Required power supply
capacity
53 kVA 53 kVA 75 kVA
Maximum output
power
DC: 50 kW (@400Vdc) DC: 50 kW (@400Vdc)
DC: 50 kW(@400Vdc)
AC: 7.7 kW
Output voltage range DC: 50 - 500 Vdc DC: 50 - 500 Vdc
DC: 50 - 500 Vdc
AC: 208-240 V~
Maximum output
current
DC: 125 A DC: 125 A
DC: 125 A
AC: 32 A
Number of connectors 1 2 2
Connector type
M
B
MODELS CCS1 T2S32 CCS1-CHA T1C32 CCS1-CHA T2S32
Maximum AC input
current
63 A (@480V 3F)
35 A (@208-240V F-N)
63 A (@480V 3F)
35 A (@208-240V F-N)
63 A (@480V 3F)
35 A (@208-240V F-N)
Required power supply
capacity
75 kVA 75 kVA 75 kVA
Maximum output
power
DC: 50 kW(@400Vdc)
AC: 22 kW
DC: 50 kW(@400Vdc)
AC: 7.7 kW
DC: 50 kW(@400Vdc)
AC: 22 kW
Output voltage range
DC: 50 - 500 Vdc
AC: 208 - 240 V~
DC: 50 - 500 Vdc
AC: 208 - 240 V~
DC: 50 - 500 Vdc
AC: 208 - 240 V~
Maximum output
current
DC: 125 A
AC: 32 A
DC: 125 A
AC: 32 A
DC: 125 A
AC: 32 A
Number of connectors 2 3 3
Connector type
C
M M
B
C
