Raption
22
Instruction Manual

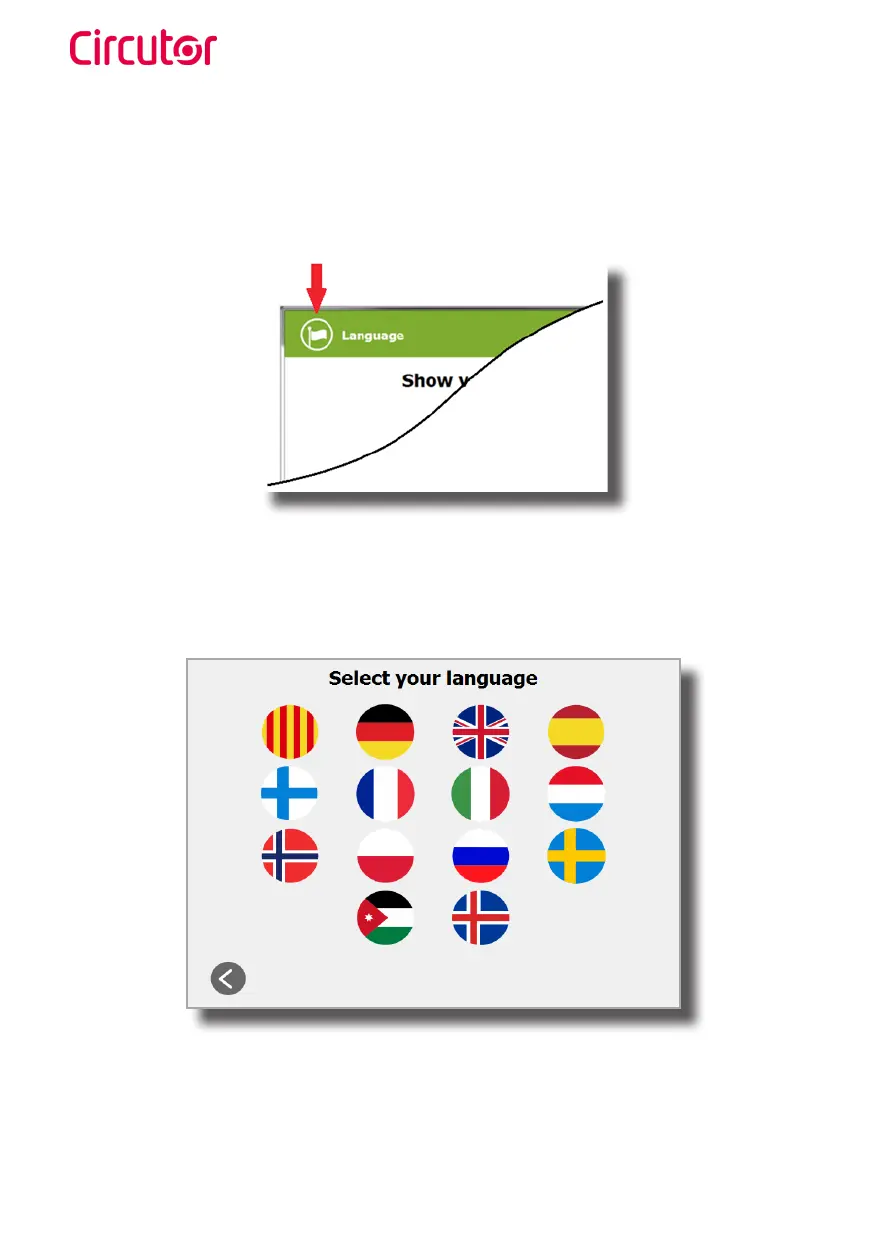

Next screen will appear
, pr
ess over your language’s flag:
Also,
at this screen and during all the process is possible to change language,
pressing on
the top of the screen over the ‘
Flag
’
touch symbol:
21
23
Table of Contents
Disclaimer
3
Revision Log
3
Table of Contents
5
Here Is Your Guide to Use and Configure Raption
5
So, Hello
9
Features
12
Main Features
12
Overview
13
Dimensions
14
Status Beacon Lights
15
Connectors
16
General
20
How to Use It
21
Starting a Charging Session
23
Special Events Starting a Charge
26
Stopping a Charging Session
31
Charging Information
33
Charging Summary
34
Emergency Button
36
Connectors Status
37
Consulting the Connectors Status
39
Errors
43
Introduction
44
How to Configure It
45
What Is Needed
45
Network Topology
46
LAN Connection Procedure
47
Setup Webpage
52
Dashboard
53
Monitor
54
Historic
55
Integrations
56
Configuration
57
Maintenance
64
Communications
68
Introduction
68
Modem Configuration
69
Ocpp 1.5
84
Introduction
84
Before Starting
85
Configuration
87
Ocpp 1.6
96
Introduction
96
Before Starting
97
Configuration
98
Monitoring
109
Output Power Setup
110
Introduction
110
Maximum Output Power for DC
111
Maximum Output Power for AC
116
Technical Data
119
Raption 50
121
Raption 50 HV / Raption 50 EVO / Raption 100
124
Need Help
133
Guarantee
133
Other manuals for Circutor Raption Series
Service Manual
112 pages
5
Based on 1 rating
Ask a question
Give review
Questions and Answers:
Need help?
Do you have a question about the Circutor Raption Series and is the answer not in the manual?
Ask a question
