Circutor RGU-10 User Manual

10
RGU-10, RGU-10C
Instruction Manual

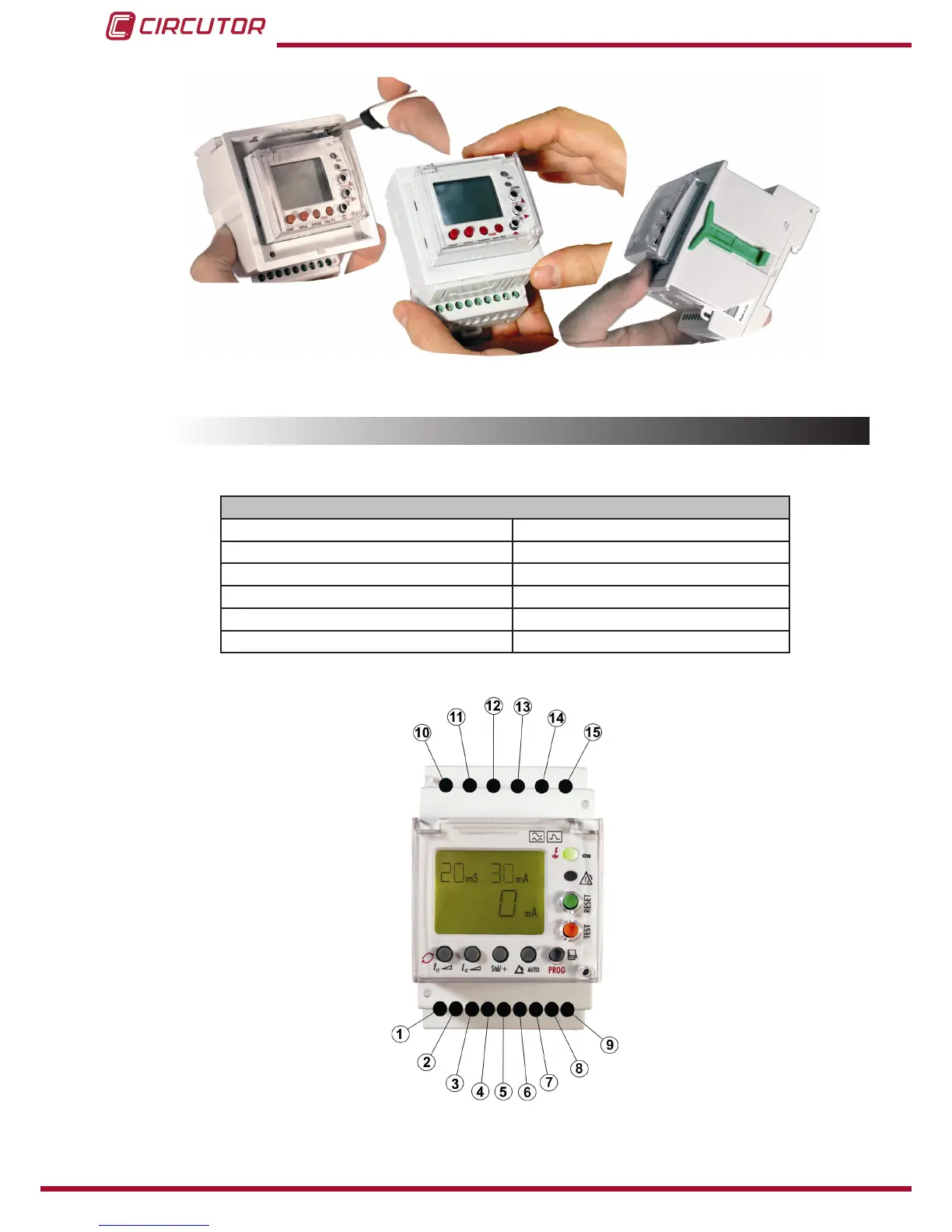

Figure 2: Installation of adapter accessory
3.3.- TERMINALS OF THE DEVICE
Table 3:Terminal description RGU-10�
Terminals of the device
1: Voltage input ON/OFF external L 9: Toroid current input 1S2
2: Voltage input ON/OFF external N 10: Power supply voltage input A1
4: Output common contact pre-alarm 11: Power supply voltage input A2
5: NC output contact pre-alarm 13: NO output contact trip
6: NO output contact pre-alarm 14: NC output contact trip
8: Toroid current input 1S1 15: Output common contact trip
Note: Terminals 3, 7 and 12 are free.
Figure 3: RGU-10 terminals�

Circutor RGU-10 Specifications

General

Power Supply	230 V AC
Mounting	DIN rail
Rated voltage	230 V AC
Number of poles	1
Frequency	50/60 Hz
Contact material	Silver alloy
Protection degree	IP20
Electrical life	> 10^5 operations
Operating temperature	-10 to +50 ºC
Storage temperature	-20°C to +70°C
Output Contacts	1 changeover (CO)
