Circutor RGU-10 User Manual

11
Instruction Manual
RGU-10, RGU-10C
3.4.- CONNECTION DIAGRAMS
Note : It is recommended that meshed cable is used to connect the toroid over large distances.
3�4�1�- CONNECTION WITH CURRENT EMISSION COIL
3�4�1�1�- Powering the device before the breaking device
In the event of powering the device before the breaking device (automatic switch) in an earth
leakage trip situation because of a fault, test or toroid error:
1�- Note the cause of the trip on the red display.
2�- Reset the breaking device.
3�- Press the RESET device.
NL1 L2
L3
1S1
1S2
Type
WGC
1S
1
1S
2
Reset
Test
1 2 4
5 6 8 9
10
11
13
14
15
UTILIZACIÓN
USE
ON / OFF externo
External ON / OFF
Disparo por BOBINA DE EMISIÓN
- Rearme Manual
Trip by SHUNT COIL
- Manual reclose

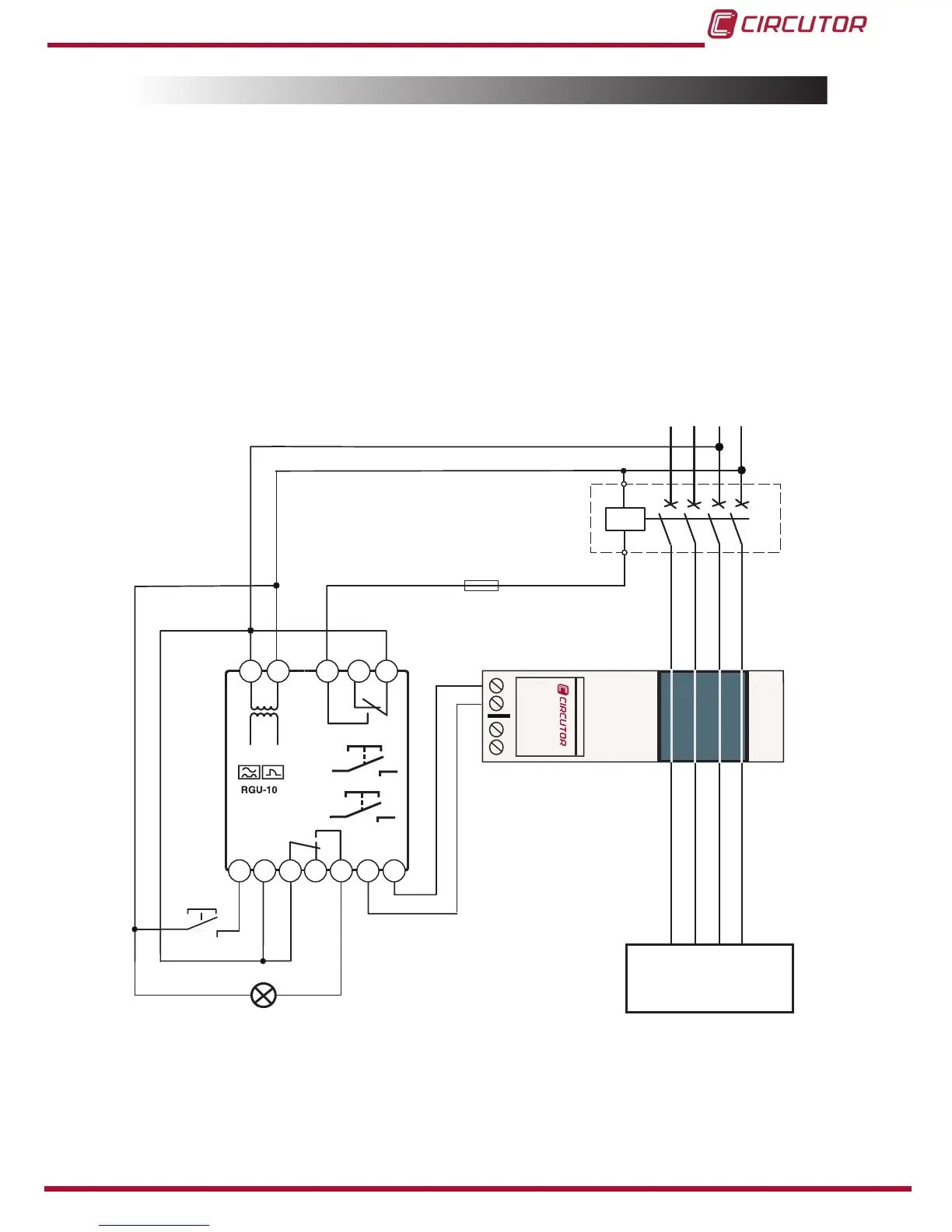

Figure 4: 24 ��� 230 Vac power supply

Circutor RGU-10 Specifications

General

Power Supply	230 V AC
Mounting	DIN rail
Rated voltage	230 V AC
Number of poles	1
Frequency	50/60 Hz
Contact material	Silver alloy
Protection degree	IP20
Electrical life	> 10^5 operations
Operating temperature	-10 to +50 ºC
Storage temperature	-20°C to +70°C
Output Contacts	1 changeover (CO)
