Circutor RGU-10 User Manual

16
RGU-10, RGU-10C
Instruction Manual

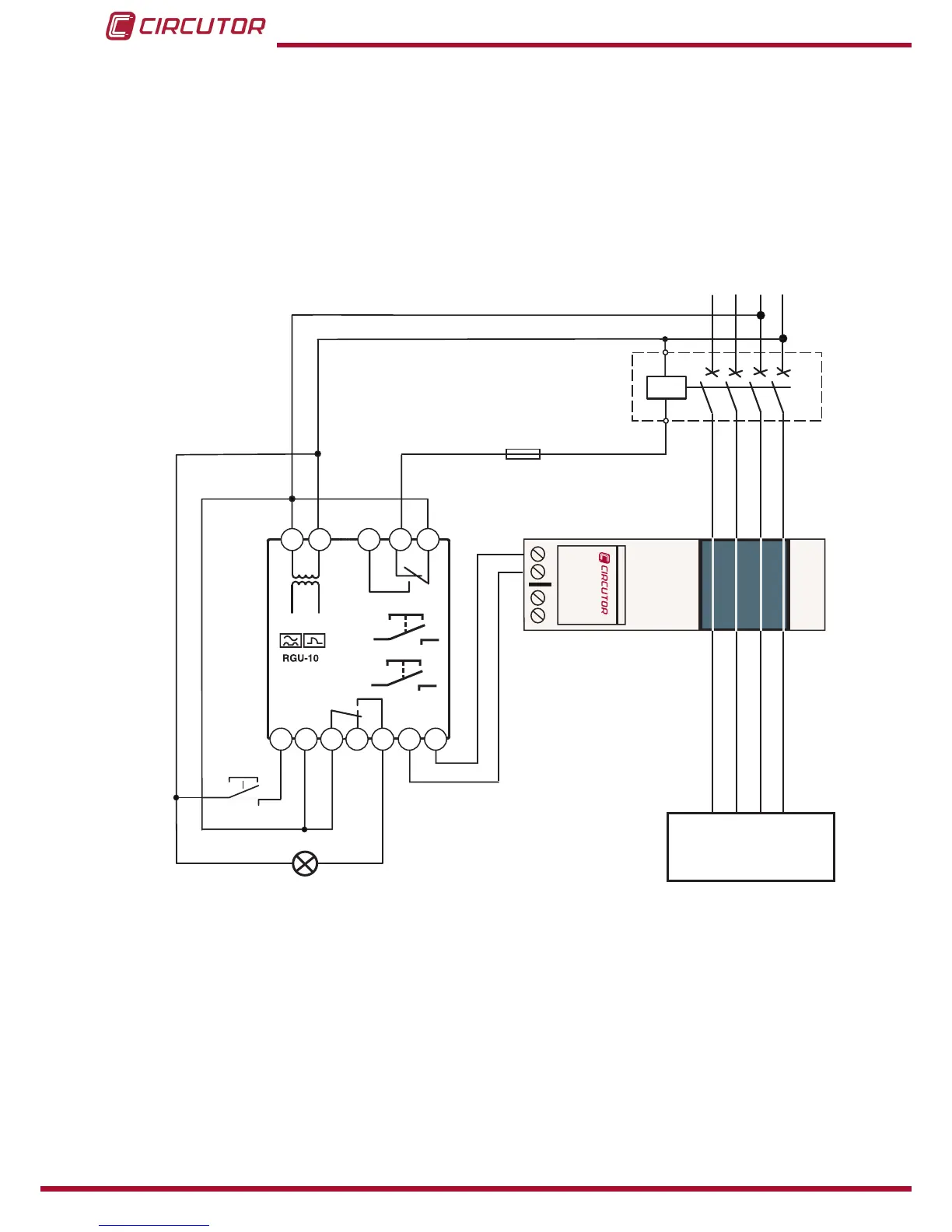

3�4�2�- CONNECTION WITH UNDERVOLTAGE COIL
3�4�2�1�- Powering the device before the breaking device
This breaking device may be an automatic switch or contactor.
Using a Contactor the protection is reset by pressing RESET, or by using an automatic switch.
The breaking device must be rearmed beforehand.
NL1 L2
L3
1S1
1S2
Type
WGC
1S
1
1S
2
Reset
Test
1 2 4
5 6 8 9
10
11
13
14
15
UTILIZACIÓN
USE
ON / OFF externo
External ON / OFF
Disparo por BOBINA DE MÍNIMA
- Rearme Manual
Trip by UNDERVOLTAGE COIL
- Manual reclose
Figure 9: 24 ��� 230 Vac power supply

Circutor RGU-10 Specifications

General

Power Supply	230 V AC
Mounting	DIN rail
Rated voltage	230 V AC
Number of poles	1
Frequency	50/60 Hz
Contact material	Silver alloy
Protection degree	IP20
Electrical life	> 10^5 operations
Operating temperature	-10 to +50 ºC
Storage temperature	-20°C to +70°C
Output Contacts	1 changeover (CO)
