Circutor RGU-10 User Manual

15
Instruction Manual
RGU-10, RGU-10C
3�4�1�3�- Power supply of the device independent of the installation
NL1 L2
L3
1S1
1S2
Type
WGC
1S
1
1S
2
Reset
Test
1 2 4
5 6 8 9
10
11
13
14
15
UTILIZACIÓN
USE
ON / OFF externo
External ON / OFF
Disparo por BOBINA DE EMISIÓN
- Rearme Manual
Trip by SHUNT COIL
- Manual reclose
+ -

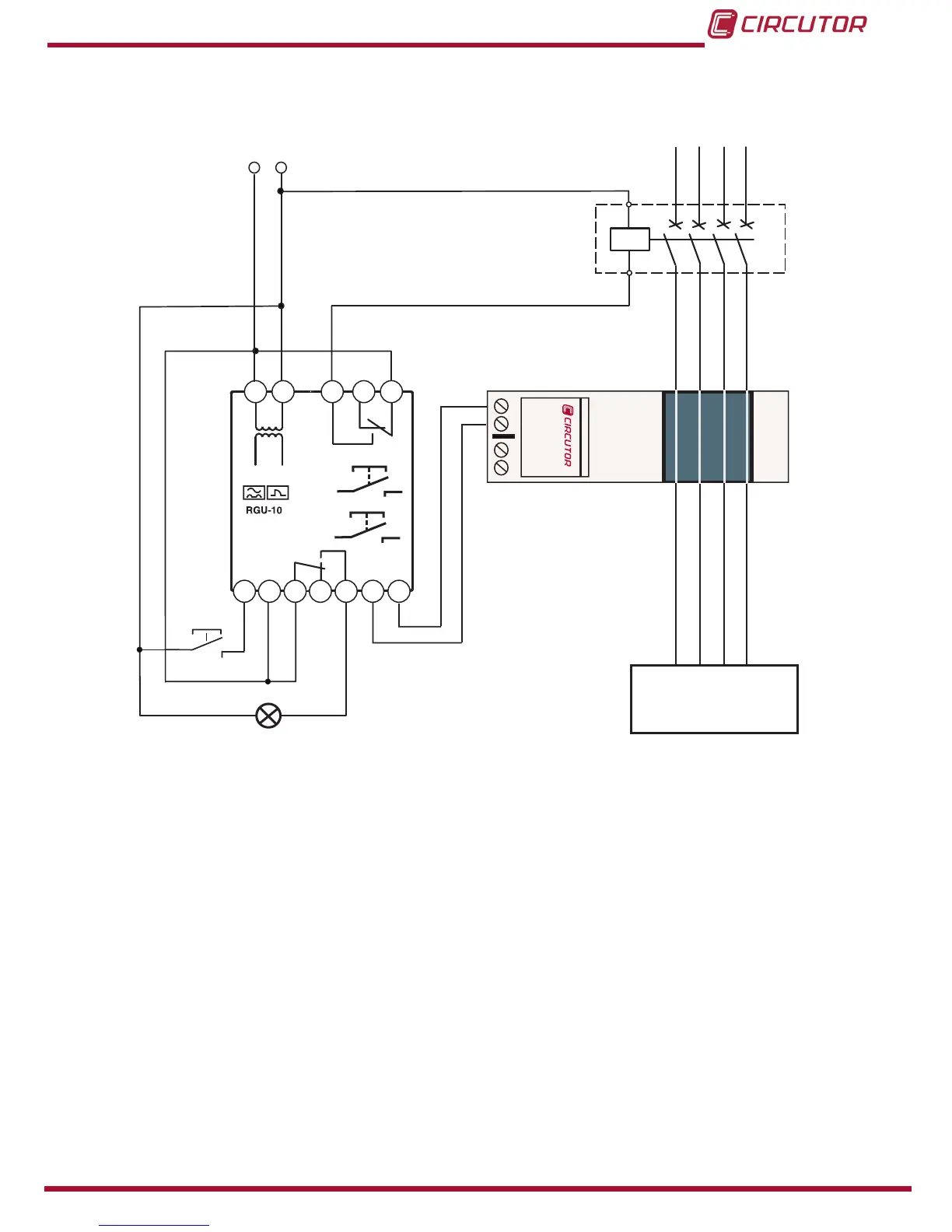

Figure 8: 24 ��� 120 Vdc power supply

Circutor RGU-10 Specifications

General

Power Supply	230 V AC
Mounting	DIN rail
Rated voltage	230 V AC
Number of poles	1
Frequency	50/60 Hz
Contact material	Silver alloy
Protection degree	IP20
Electrical life	> 10^5 operations
Operating temperature	-10 to +50 ºC
Storage temperature	-20°C to +70°C
Output Contacts	1 changeover (CO)
