Circutor RGU-10 User Manual

14
RGU-10, RGU-10C
Instruction Manual
L1 L2
L3
1S1
1S2
Type
WGC
1S
1
1S
2
Reset
Test
1 2 4
5 6 8 9
10
11
13
14
15
UTILIZACIÓN
USE
Disparo por BOBINA DE EMISIÓN
- Rearme Automático mediante corte de
alimentación
Trip by SHUNT COIL
- Automatic reclose by power supply out
Reset exterior
External Reset

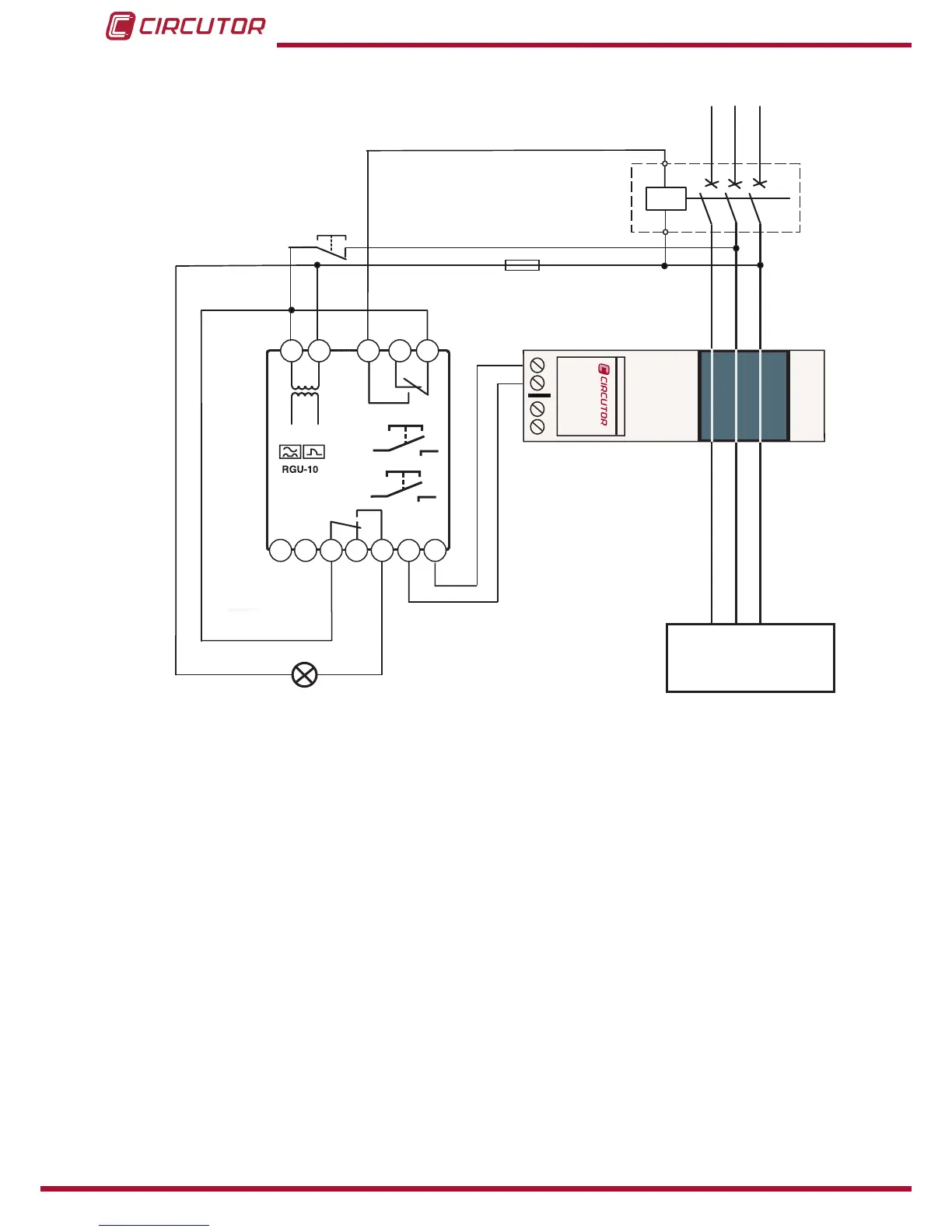

Figure 7: 400 Vac power supply
The device operates to its maximum whenever it is supplied from the installation itself before
the breaking device or from an independent auxiliary power supply. However if the power sup-
ply from the installation is below the breaking device the system continues to be properly pro-
tected even though with limitations in terms of its disconnection performance through lack of
power supply.

Circutor RGU-10 Specifications

General

Power Supply	230 V AC
Mounting	DIN rail
Rated voltage	230 V AC
Number of poles	1
Frequency	50/60 Hz
Contact material	Silver alloy
Protection degree	IP20
Electrical life	> 10^5 operations
Operating temperature	-10 to +50 ºC
Storage temperature	-20°C to +70°C
Output Contacts	1 changeover (CO)
