Jumper Power Cord
Table C-3 lists the power cables for the HVAC/HVDC power supplies (NXA-PHV-500W and
NXA-PHV-500W-B).
Jumper Power Cord
Figure C-16 shows the plug connector on the optional jumper power cord for the Cisco Nexus Fabric
Extender. The plug plugs into the Cisco Nexus Fabric Extender power supply, while the connector plugs
into the receptacle of a power distribution unit for a cabinet.

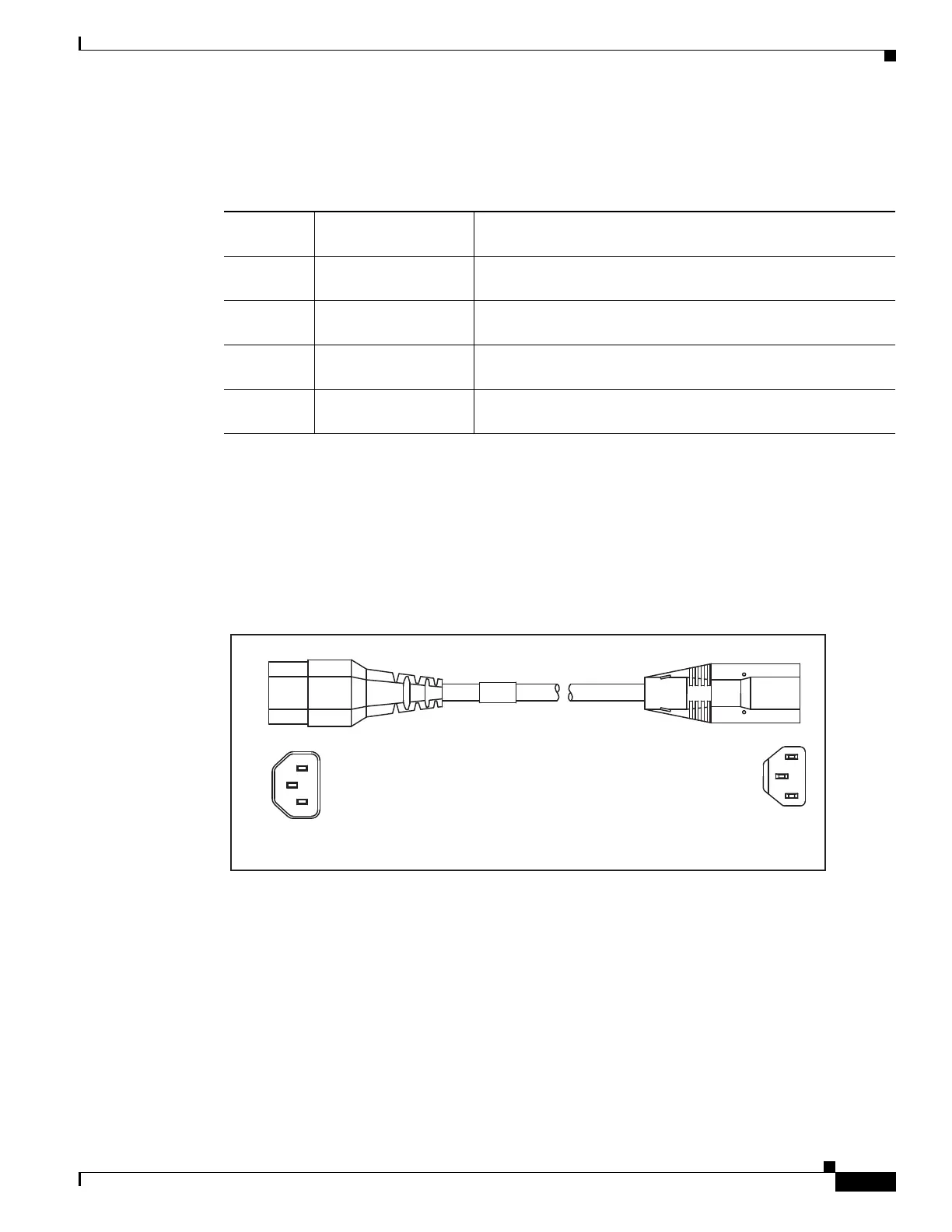

Figure C-16 CAB-C13-C14-JMPR, Jumper Power Cord
Table C-3 Power Cable Specifications for HVAC/HVDC Power Supplies
Power
Type Power Cord Description
HVAC CAB-HVAC-SD-0.6M 2-foot (0.6 m) cable with Saf-D-Grid and SD connectors (LS-25
straight)
HVAC CAB-HVAC-C14-2M 6.6-foot (2.0 m) cable with Saf-D-Grid and C14 connector (use
for up to 240 V)
HVAC CAB-HVAC-RT-0.6M 2-foot (0.6 m) cable with Saf-D-Grid and RT connector (LS-25
right angle)
HVDC CAB-HVDC-3T-2M 6.6-foot (2.0 m) cable with Saf-D-Grid and three terminal
connectors
Cordset rating 10A, 250V
(686mm)
Plug:
SS10A
186569
Connector:
HS10S
