C-8
Cisco ME 2400 Ethernet Access Switch Hardware Installation Guide
OL-7678-01
Appendix C Connecting to DC Power
Wiring the DC-Input Power Source

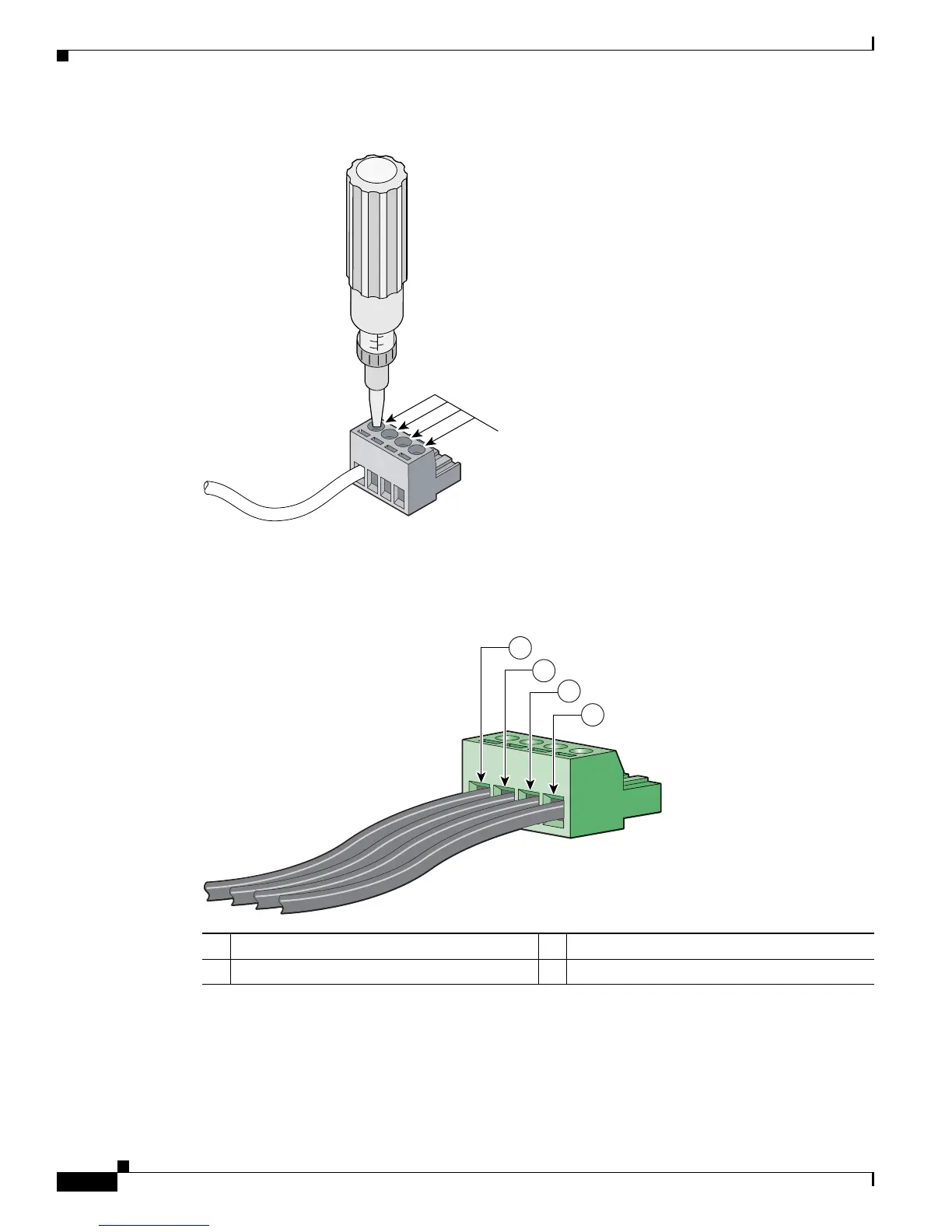

Figure C-10 Torquing the Terminal-Block Captive Screws
Step 7
Repeat Steps 4 and 5 for the remaining three DC-input power source wires. Figure C-11 shows the
completed wiring of a terminal block plug.
Figure C-11 Completed Wiring of Terminal Block Plug
Step 8 Insert the terminal block plug in the terminal block header on the front panel of the switch.
(See Figure C-12).
60533
Torque to 4.5 lbf-in. (72 ozf-in.)
1 Return (positive) Feed A 3 Return (positive) Feed B
2 Supply (negative) Feed A 4 Supply (negative) Feed B
132850
1
2
3
4
