Appendix C Connecting to DC Power
Wiring the DC-Input Power Source
Caution Secure the wires coming in from the terminal block so that they cannot be disturbed by casual contact.
For example, use tie wraps to secure the wires to the rack.

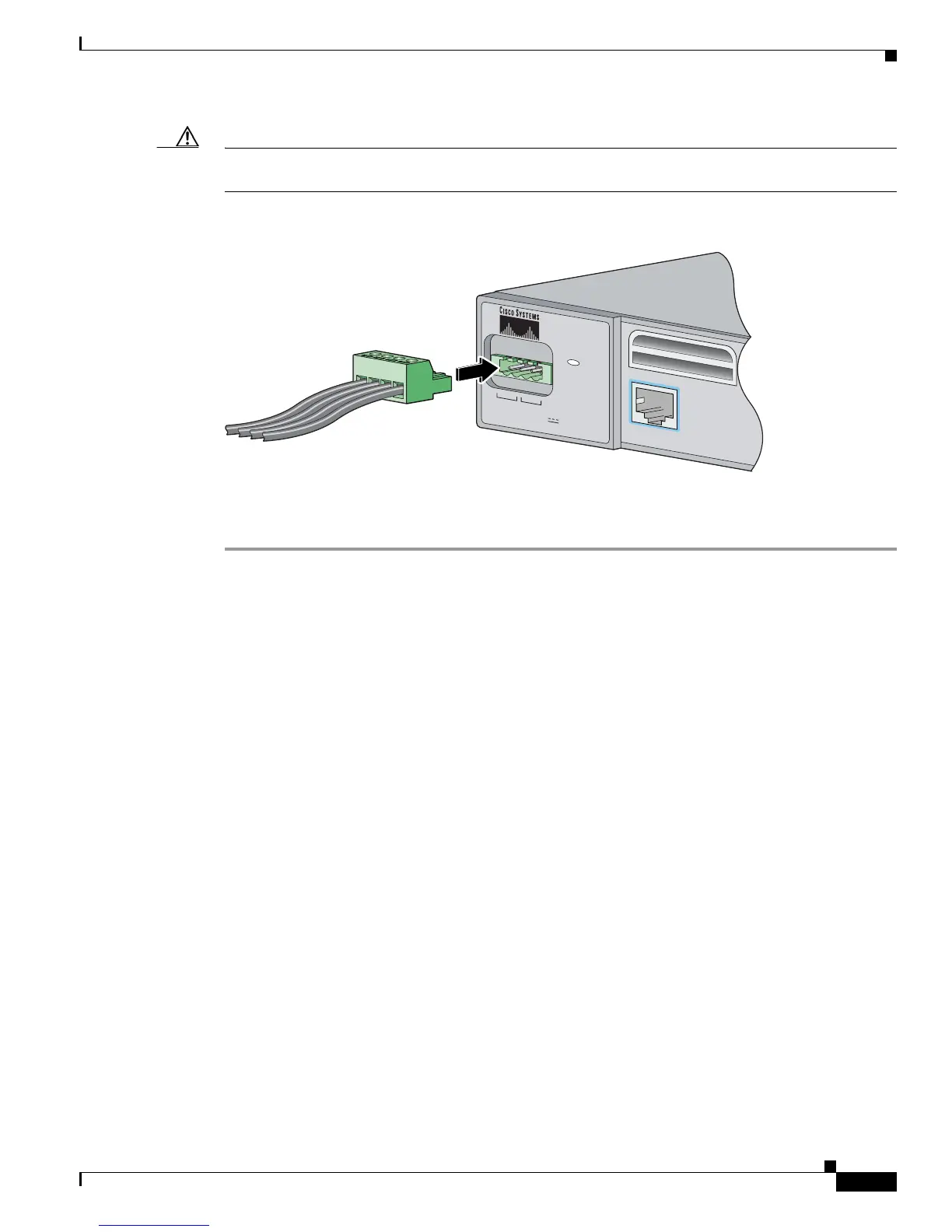

Figure C-12 Inserting the Terminal Block in the Block Header
Step 9
Remove the tape from the circuit-breaker switch handle, and move the circuit-breaker handle to the
on position.
CONSOLE
INPUT -36 – -72 V
CURRENT 2 – 1A
B
+
+
SYSTEM
132851
A
