Cisco 350 Series Administration Guide

Dashboard
Grid Management
Cisco 350, 350X and 550X Series Managed Switches, Firmware Release 2.4, ver 0.4 31
3

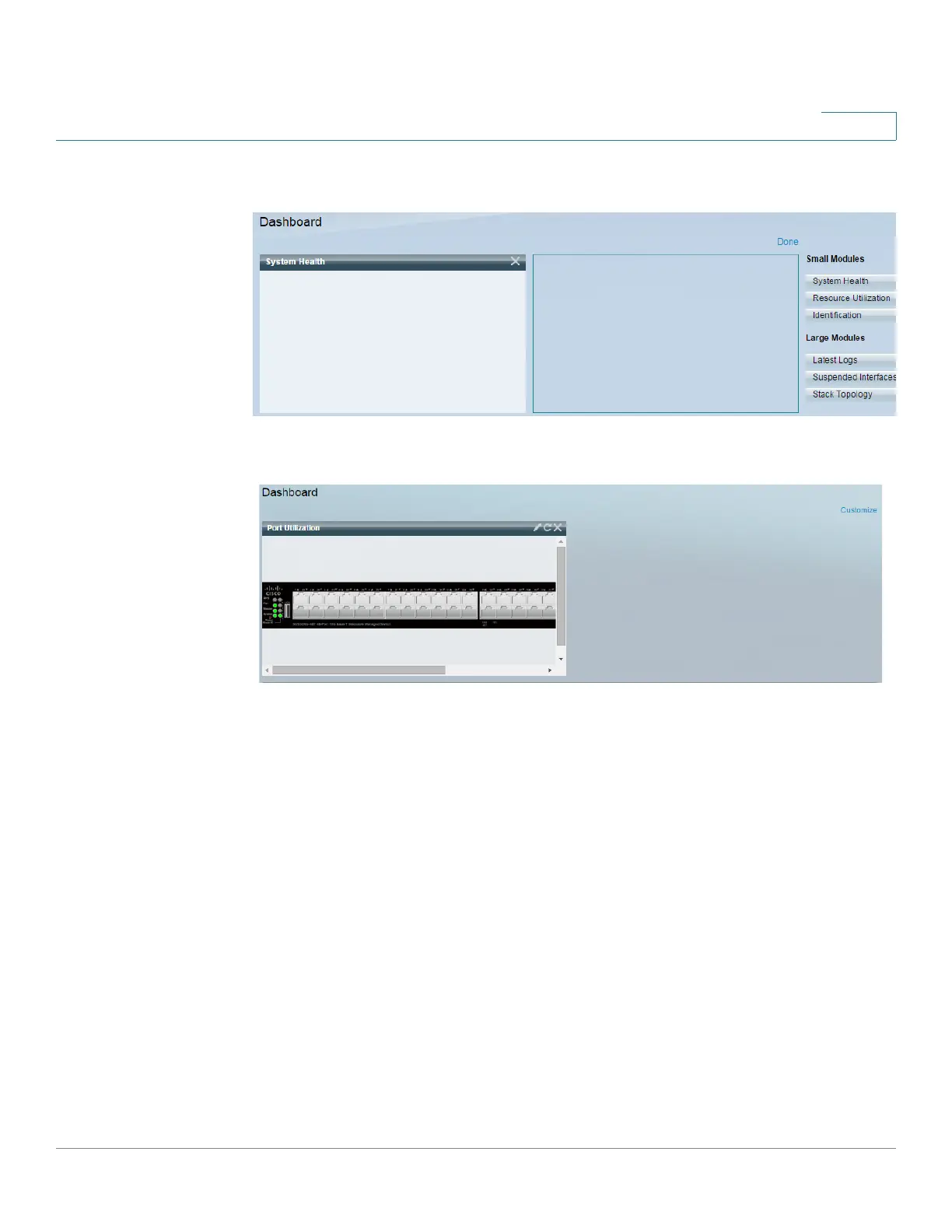

When you open the dashboard, a wire frame view of the grid is displayed, as shown below
(only 2 squares are shown in the following screen capture):
To display modules that are not currently being displayed, click on Customize on the upper-
right of the dashboard, as shown below:
Add modules to the grid by selecting a module from the list of modules on the right and
dragging and dropping it to any space in the grid.
The modules are divided into the following groups:
• Small Modules are modules that take up a single square
• Large Modules take up two squares.
If you drag a module into a space currently occupied, the new module replaces the previous
one.
You can re-arrange the placement of the modules in the grid by dragging a module from one
occupied grid position to another position. The module can be dropped in an unoccupied spot,
or in a spot occupied by a module of the same size. If the selected spot is occupied, the
modules switch places.

Cisco 350 Series Specifications

General

Model	Cisco 350 Series
Category	Switch
Ports	8, 24, 48
PoE	Available on some models
Layer	Layer 2
Switching Capacity	Up to 104 Gbps
VLAN Support	Yes (up to 256 VLANs)
QoS	Yes
Management	Web, CLI, SNMP
Security Features	ACLs, 802.1X, Port Security
Jumbo Frame Support	Yes
Power Supply	Internal
Dimensions	Varies by model
Weight	Varies by model
Operating Temperature	0°C to 45°C (32°F to 113°F)
Storage Temperature	-20°C to 70°C (-4°F to 158°F)
Humidity	10% to 90% non-condensing
Port Type	Gigabit Ethernet, Fast Ethernet (depending on model)
