Smart Network Application (SNA)
Topology View
476 Cisco 350, 350X and 550X Series Managed Switches, Firmware Release 2.4, ver 0.4
25
The following connection widths are available (from narrowest to widest):
• Level 1—Less than 1GB
• Level 2—1GB to less than 10GB
• Level 3—More than 10 GB
Links whose capacity cannot be calculated or links between a backbone device and its clients
are shown as level 1 links.
The connection between SNA-capable devices is detected from both sides. If there is a
difference between the calculated capacities of the connection between the two sides, the
width is drawn according to the lower of the two values.
You can enter a connection explorer for specific links by clicking on the link. The following
information is displayed:
• Port(s) names on the two sides of the link (if known)
• LAG IDs if relevant.
• Basic information about the connected devices: device type/device name/IP
• Link bandwidth for each link comprising the connection
Clouds

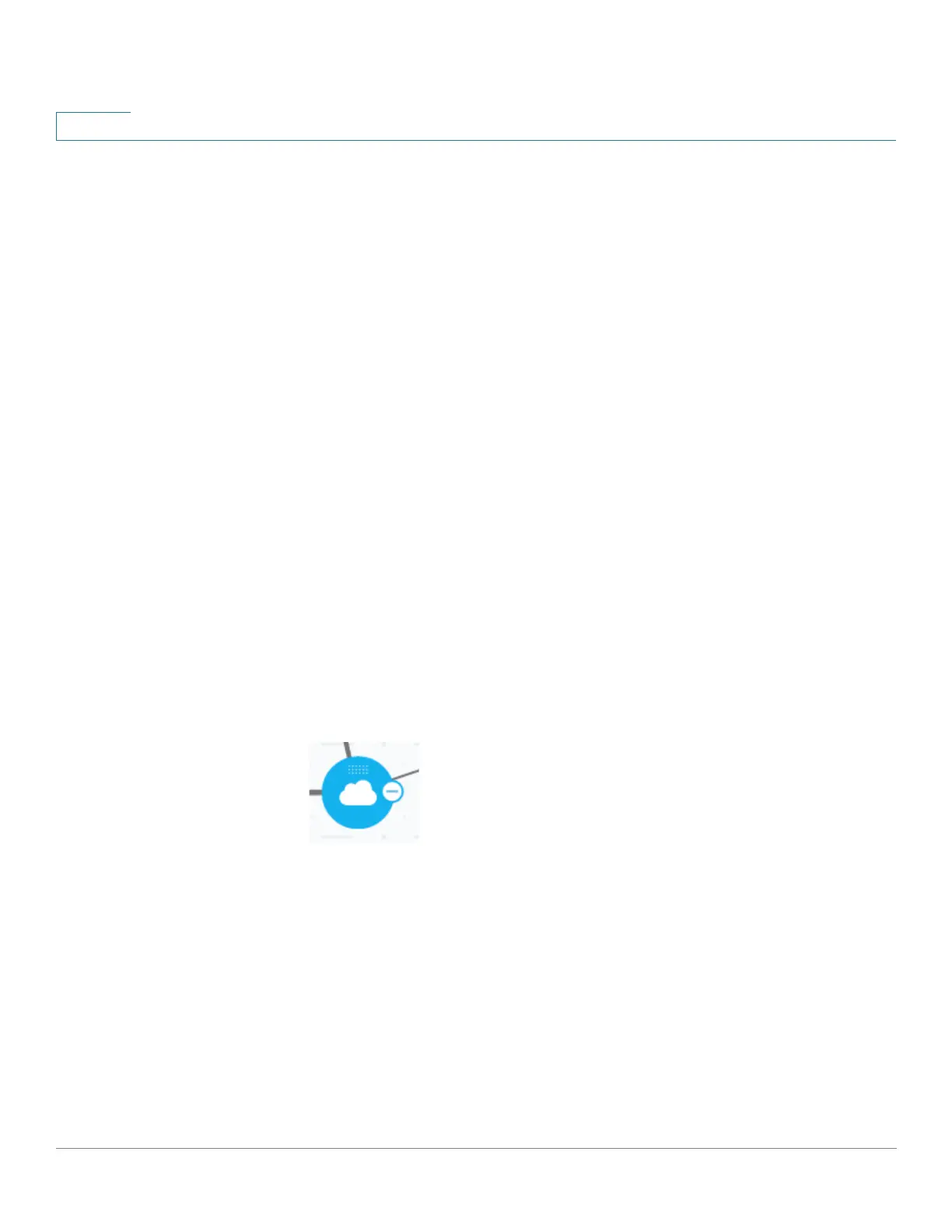

Clouds are sections of the network that SNA cannot map in detail. They are indicated by the
following icon:
SNA may determine that more than one device is connected to the network through a specific
port, but is unable to map the relationship between those devices. This occurs because there
are no SNA-capable devices among them. SNA draws a cloud on the topology map and
displays the devices detected in this cloud as connected clients.
Most SNA operations are not applicable to clouds.
