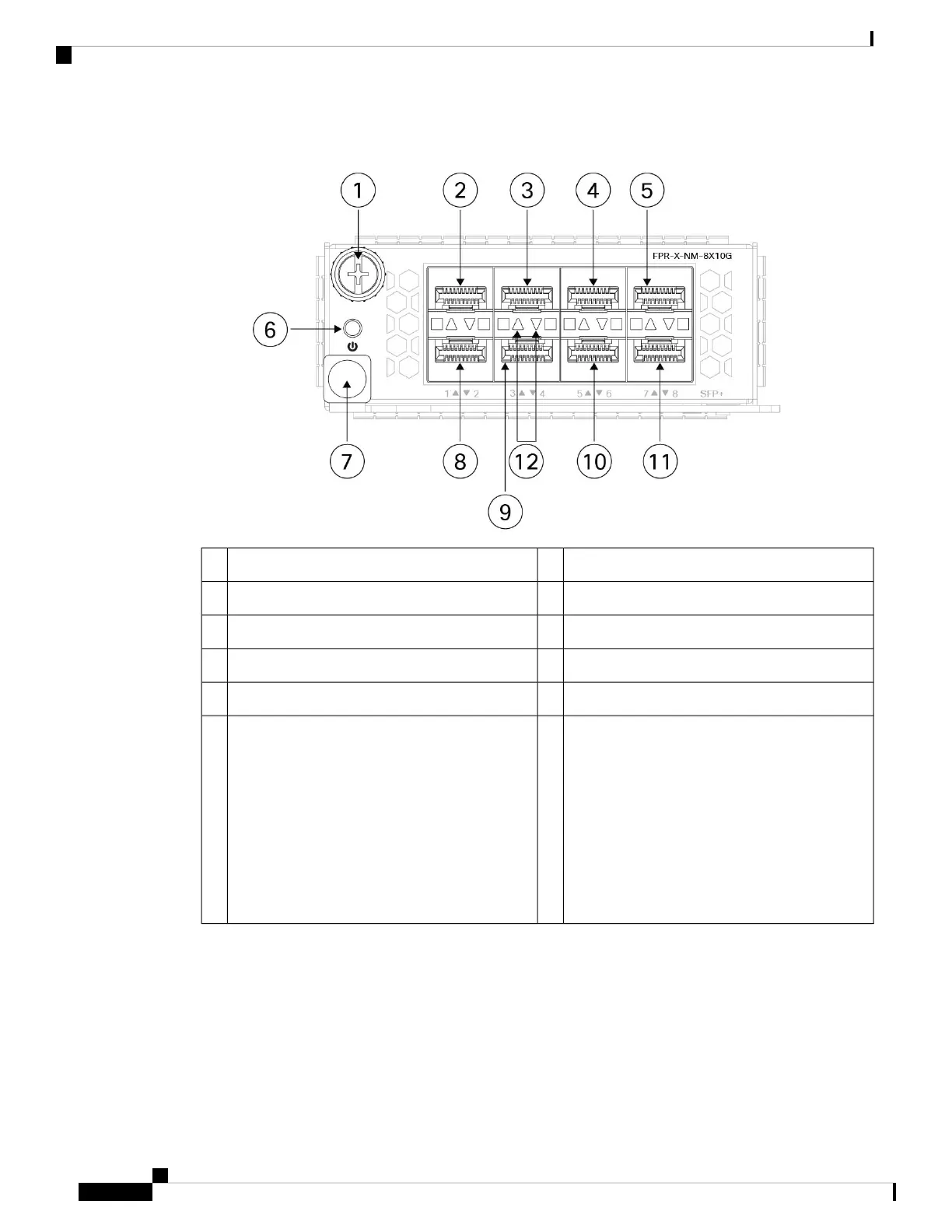

Figure 8: 8-Port 1/10-Gb (FPR-X-NM-8X10G) and 8-Port 1/10/25-Gb (FPR-X-NM-8X25G) Network Module
Ethernet 2/1 or 3/12Captive screw1
Ethernet 2/5 or 3/54Ethernet 2/3 or 3/33
Power on LED6Ethernet 2/7 or 3/75
Ethernet 2/2 or 3/28Ejector handle7
Ethernet 2/6 or 3/610Ethernet 2/4 or 3/49
Network activity LEDs
The up arrows represent the top ports and the
down arrows represent the bottom ports.
• Off—No SFP.
• Amber—No link or network failure.
• Green—Link up.
• Green, flashing—Network activity.
12Ethernet 2/8 or 3/811
For More Information
• See 4-Port 40-Gb Network Module, on page 17 for a description of the 40-Gb network module.
• See 6-Port 10-Gb SR/10-Gb LR/25-Gb SR/25-Gb LR Network Module with Hardware Bypass , on
page 24 for a description of the 1/10/25-Gb network module.
• See 8-Port 1000Base-T Network Module with Hardware Bypass, on page 22 for a description of
the 10/100/1000Base-T network module.
Cisco Secure Firewall 4200 Series Hardware Installation Guide
16
Overview
8-Port 1/10/25-Gb Network Module
