Cisco 7841 Administration Guide

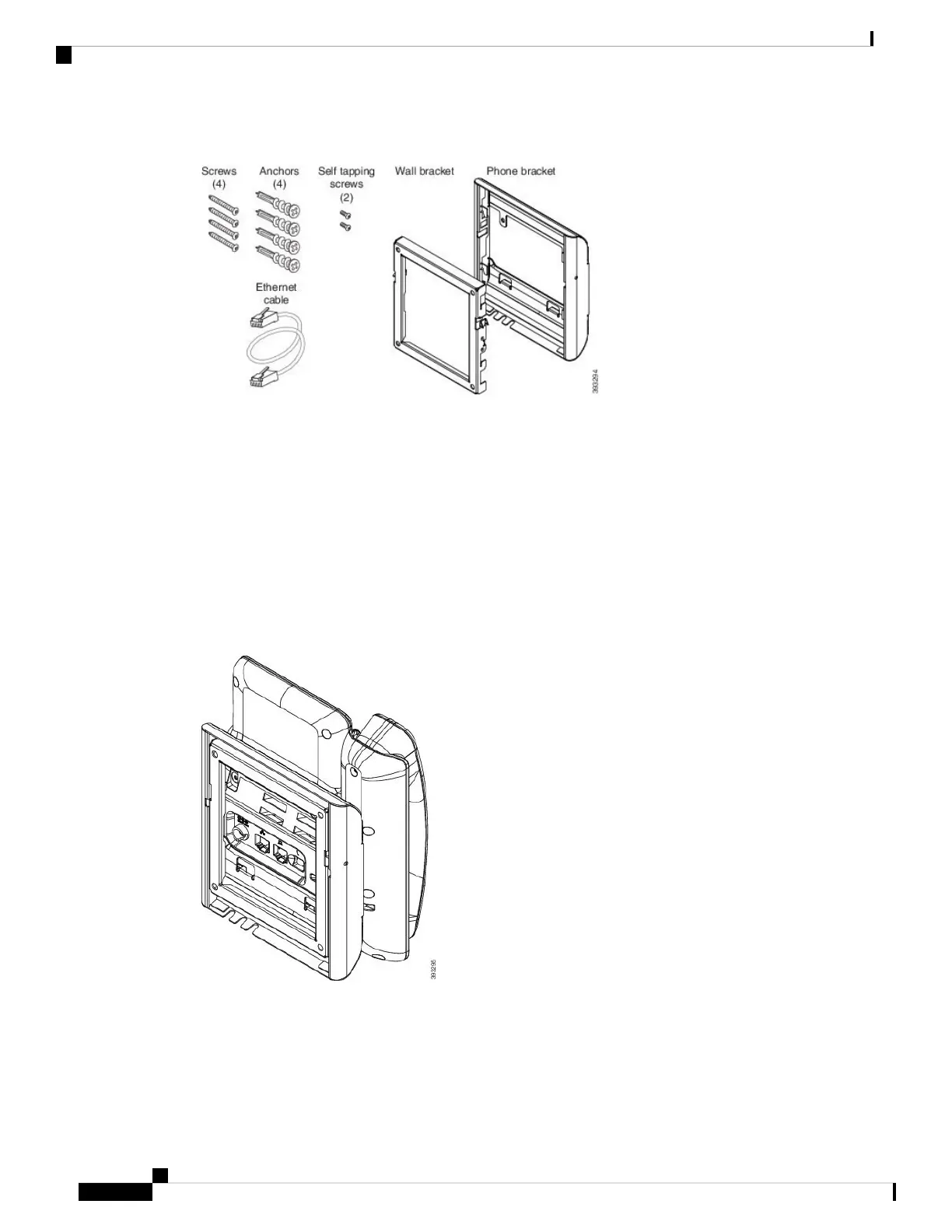

Figure 2: Wall Mount Kit Components for 7811
The package includes these items:
• One phone bracket
• One wall bracket
• Four M4 x 25-mm Phillips-head screws with four anchors
• Two M3 x 7-mm Self-tapping screws
• One 200-mm Ethernet cable
This section describes how to install and remove the ADA nonlockable wall mount kit.
Figure 3: Back View of ADA Non-Lockable Wall Mount Kit Installed on Phone
Cisco IP Phone 7800 Series Multiplatform Phones Administration Guide
92
Hardware and Accessory Installation
Non-Lockable Wall Mount Components for 7811

Cisco 7841 Specifications

General

Ethernet Switch	Yes
Lines	4
Headset Port	Yes
Wall Mountable	Yes
Display	3.5-inch grayscale display
Audio	Wideband audio
PoE	IEEE 802.3af
Speakerphone	Full-duplex
Ethernet Ports	2 x 10/100/1000
Headset Jack	RJ9
Protocols	SIP
Codec Support	G.711, G.722, G.729, iLBC
Mounting	Desk or wall
Weight	1 kg
