Cisco 7940 User Manual

Cisco 7960/7940 Telephone User Guide Set Up Outlook for TAPI 157
620-05600070B

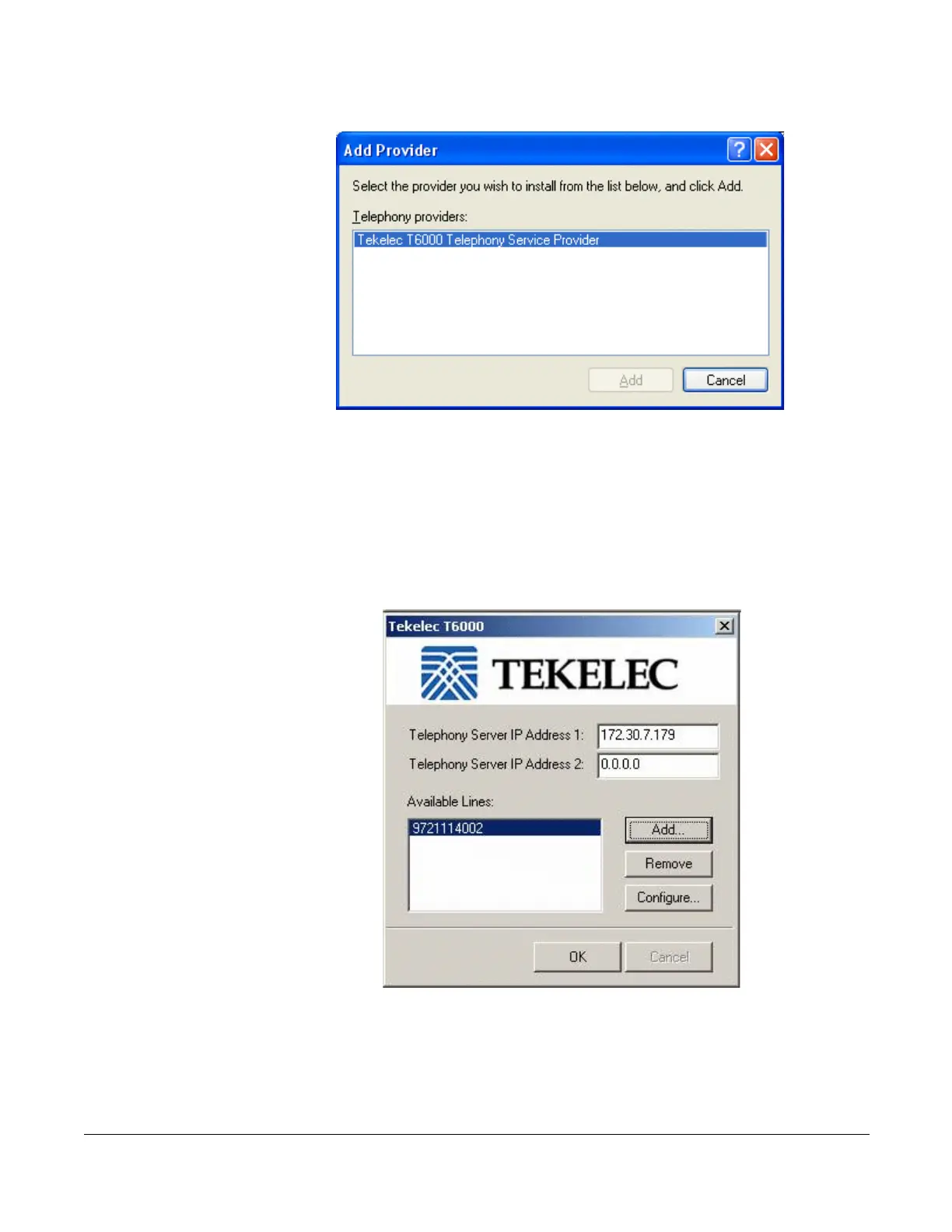

13. Select Tekelec T6000 Telephony Service Provider and click Add.
14. When the
Tekelec dialog box appears, do the following:
a. Enter the IP addresses provided by your system administrator in the
Server IP Address 1 and 2 fields.
b. Click Add to add your telephone number (the one that will be used with
the TAPI-enabled program [such as Outlook]).
15. Enter your telephone number and password and click OK.

Cisco 7940 Specifications

General

Lines	2
Protocol Support	SIP, SCCP
Audio Codec Support	G.711, G.729a
Ethernet Ports	2 x 10/100 Ethernet ports
Power Options	PoE or external power supply
Dimensions	8 H x 10.5 W x 6 D (inches)
