Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide
OL-16215-12
Chapter 3 Connecting the Router
Connecting the AC Adapter
Note The Cisco 892FSP utilizes a single 4-pin power connector type. Figure 3-27 shows the pin number
assignment of the Cisco 892FSP Power Adapter Connector.
To connect your Cisco 860 series, Cisco 880 series, or the Cisco 890FSP ISR to an AC power outlet,
follow these steps:
Step 1 Connect the router to an AC power outlet as shown in Figure 3-25.To connect the Cisco 892FSP router,
see Figure 3-26.

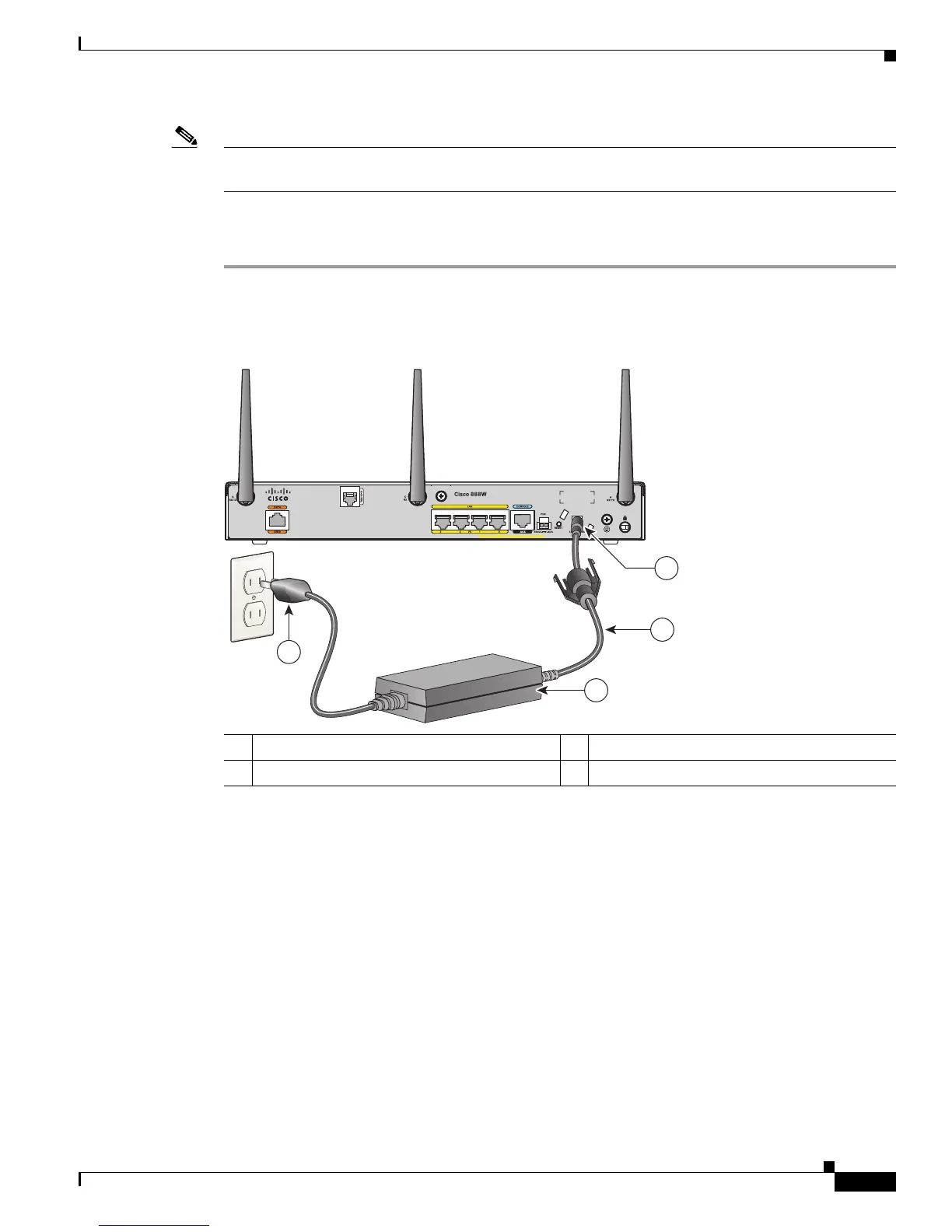

Figure 3-25 Connecting the AC Adapter
1 12-VDC plug 3 Power adapter—12 VDC
2 Power cord 4 AC plug
231996
1
2
4
3

Cisco 880 Series Specifications

General

Operating System	Cisco IOS
Device Type	Router
LAN Ports	4
LAN Interface	Fast Ethernet
VPN Support	Yes
Security	Yes
Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Network / Transport Protocol	TCP/IP
Remote Management Protocol	SNMP, CLI, HTTP, HTTPS, Telnet, SSH
Features	Quality of Service (QoS), VLAN support, firewall
Encryption Algorithm	DES, Triple DES, AES
Authentication Method	RADIUS, TACACS+
Compliant Standards	IEEE 802.1Q
RAM	256 MB
Memory	256 MB DRAM
