Cisco 860 Series, Cisco 880 Series, and Cisco 890 Series Integrated Services Routers Hardware Installation Guide
OL-16215-12
Chapter 3 Connecting the Router
Connecting an FXS Line
Warning For connections outside the building where the equipment is installed, the following ports must be
connected through an approved network termination unit with integral circuit protection: FXS.
Statement 1044
To connect the FXS line, follow these steps:
Step 1 Connect one end of the straight-through RJ-11 cable to the FXS port. Figure 3-30 shows an FXS line
connection.

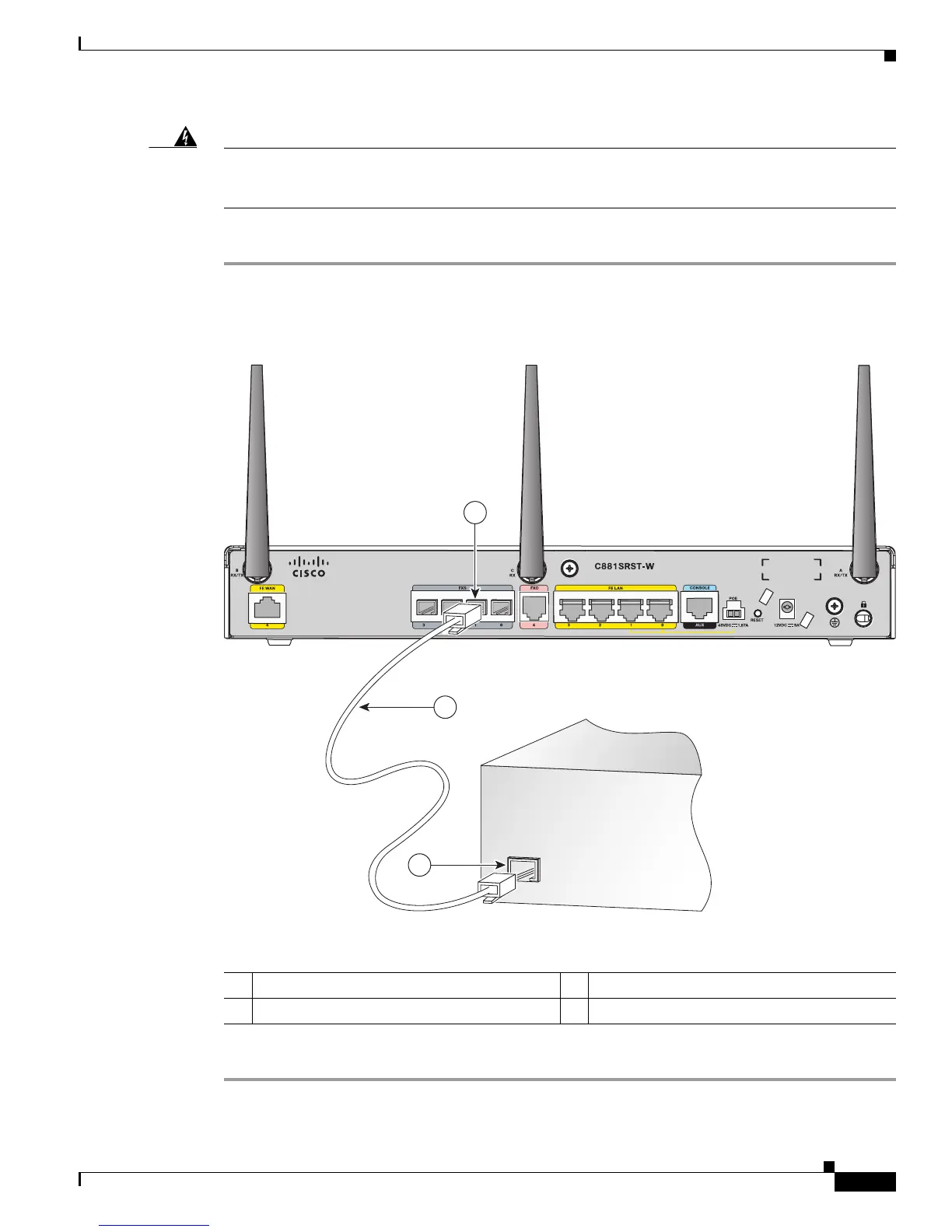

Figure 3-30 Connecting an FXS Line
Step 2
Connect the other end of the cable to the RJ-11 port on the fax machine or telephone.
1 FXS port 3 RJ-11 port
2 RJ-11 cable
Fax machine
or telephone
241907
1
2
3

Cisco 880 Series Specifications

General

Operating System	Cisco IOS
Device Type	Router
LAN Ports	4
LAN Interface	Fast Ethernet
VPN Support	Yes
Security	Yes
Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Network / Transport Protocol	TCP/IP
Remote Management Protocol	SNMP, CLI, HTTP, HTTPS, Telnet, SSH
Features	Quality of Service (QoS), VLAN support, firewall
Encryption Algorithm	DES, Triple DES, AES
Authentication Method	RADIUS, TACACS+
Compliant Standards	IEEE 802.1Q
RAM	256 MB
Memory	256 MB DRAM
