Chapter 1 Product Overview
Cisco 880 Series ISRs
Depending on the router model, the primary WAN port can be G.SHDSL, VDSLoPOTS, VDSL/ADSL
over ISDN, VDSL/ADSL over POTS, or 10/100 FE. See the Cisco 880 Series Integrated Services
Routers data sheet for the WAN interface that is supported on your router.

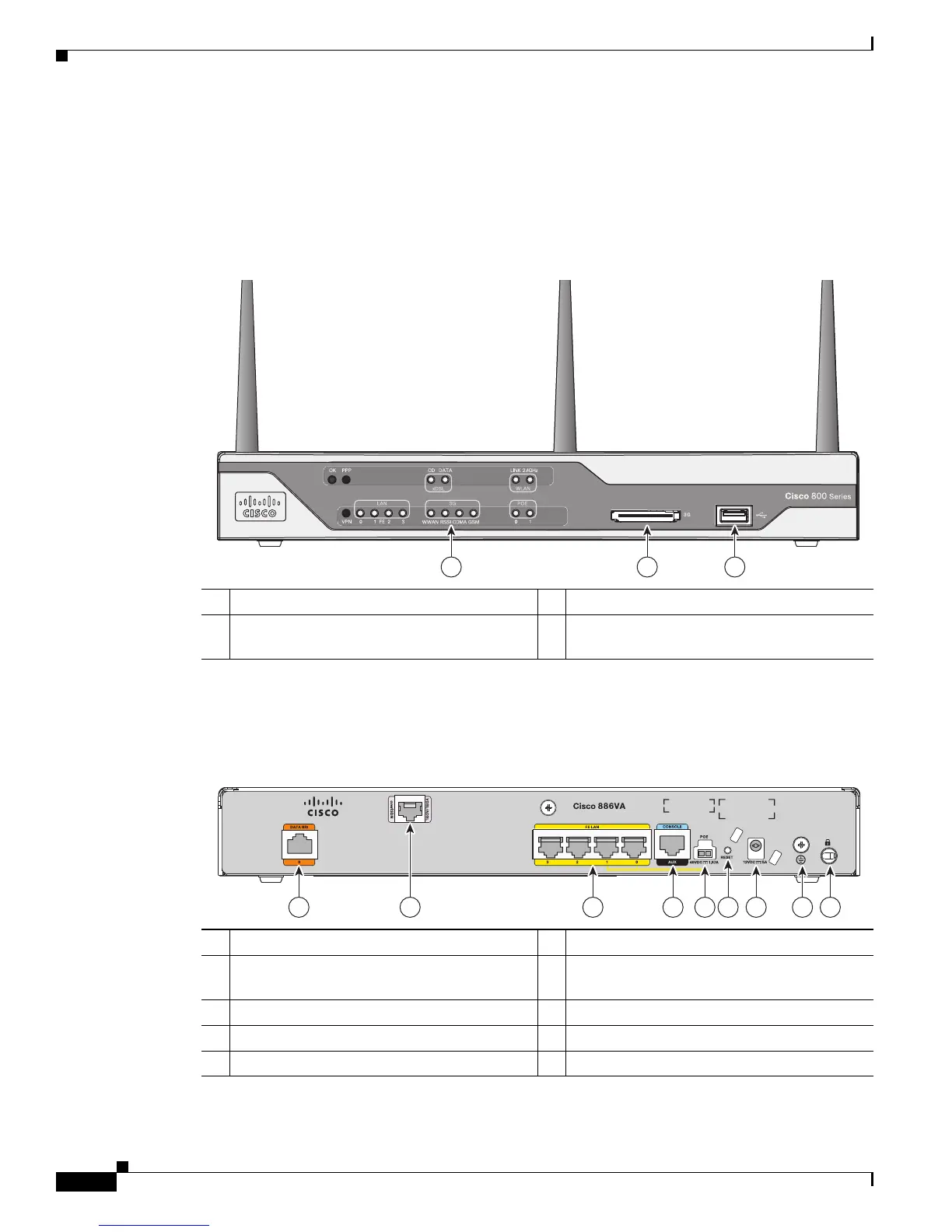

Figure 1-8 shows the front panel details of the Cisco 880 wireless data router. The USB port and the 3G
card slot are located on the front panel.
Figure 1-8 Front Panel of the Cisco 880 Series Wireless Data Router
Figure 1-9 shows the back panel details of the Cisco 886VA data router.
Figure 1-9 Back Panel of the Cisco 886VA Router
1 LEDs 3 USB port
2 3G express card slot—Supports third-party
1
3G card (Cisco 880G models only)
1. See the Cisco 880 Series Integrated Services Routers data sheet for supported vendors.
1 Data BRI
1
0 6 Reset button
2 Primary WAN port—VDSL/ADSL over
ISDN
7 Power connector
3 4-port 10/100 Ethernet switch
2
8 Earth ground connection
4 Serial port—console or auxiliary 9 Kensington security slot
5 PoE power connector—optional
1. BRI = Basic rate interface.
