Chapter 1 Product Overview
Cisco 890 Series ISRs

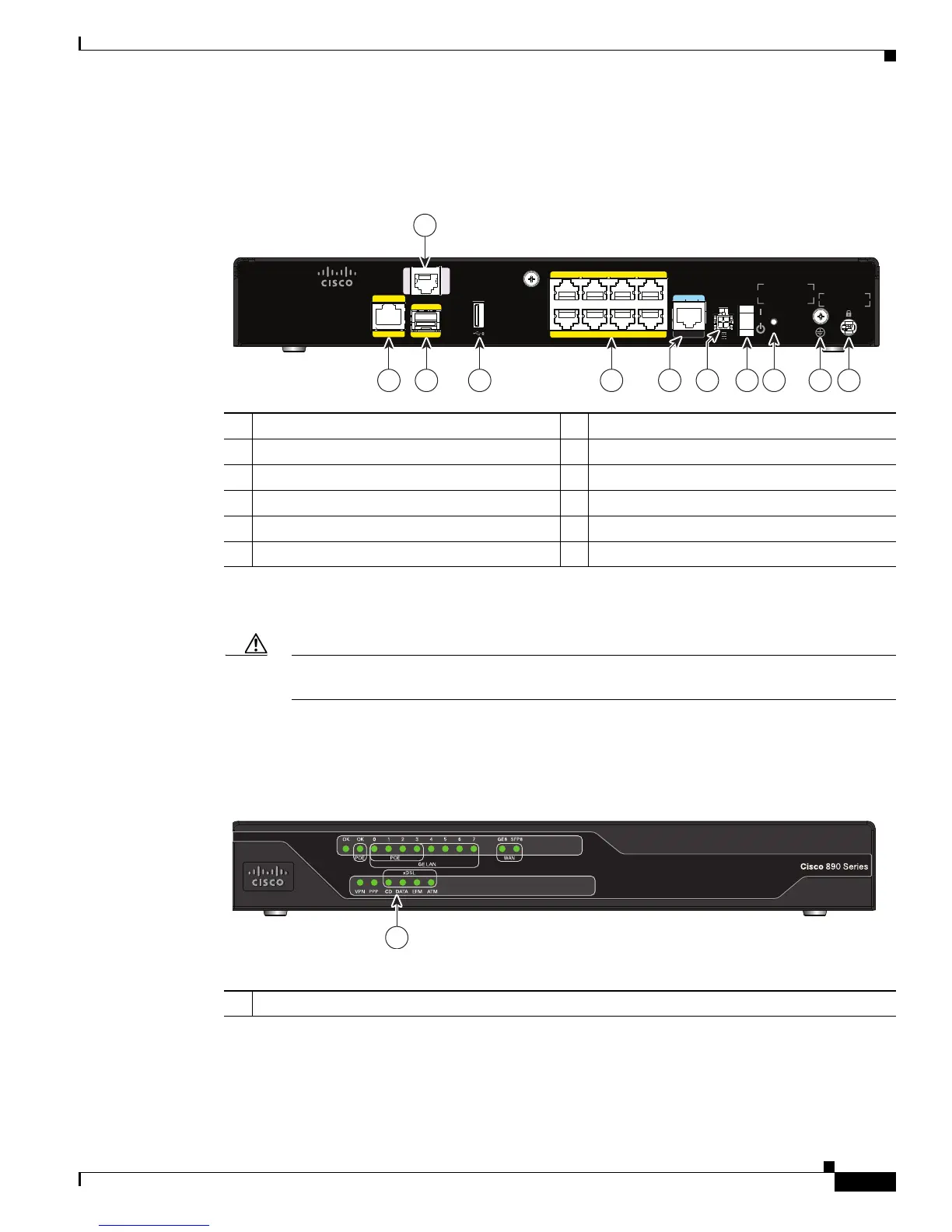

Figure 1-45 shows the back panel of the Cisco 898EA router.
Figure 1-45 Back Panel of the Cisco 898EA Router
Caution The primary WAN port is designed for an RJ-45 connector only. Damage to the primary WAN
port may occur if a non-RJ-45 connector is inserted.
Figure 1-46 shows the front panel of the Cisco 898EA router.
Figure 1-46 Front Panel of the Cisco 898EA Router
7 6 GELAN 5 4
3 2 POE 1 0
8
GE WAN
SFP
8
54VDC 1.2A
12VDC 2.5A
SHDSL
RJ45 ONLY
CONSOLE
RESET
Cisco 898EA
AUX
344774
11
1 2 3 4 7 8 9 10
5 6
1 GE WAN interface 7 On/Off switch
2 SFP port 8 Reset button
3 USB port 9 Earth ground connection
4 8-port Gigabit Ethernet switch
1
1. Port 0 through 3 can be configured as POE. POE is an optional feature for this model. If this feature was not configured with
the factory order, you must order and install it to enable the PoE function.
10 Kensington security slot
5 Console / Auxiliary port 11 SHDSL (RJ45 Only)
6 Power connector
1
344773
1 LEDs

Cisco 880 Series Specifications

General

Operating System	Cisco IOS
Device Type	Router
LAN Ports	4
LAN Interface	Fast Ethernet
VPN Support	Yes
Security	Yes
Firewall	Yes
Data Link Protocol	Ethernet, Fast Ethernet
Network / Transport Protocol	TCP/IP
Remote Management Protocol	SNMP, CLI, HTTP, HTTPS, Telnet, SSH
Features	Quality of Service (QoS), VLAN support, firewall
Encryption Algorithm	DES, Triple DES, AES
Authentication Method	RADIUS, TACACS+
Compliant Standards	IEEE 802.1Q
RAM	256 MB
Memory	256 MB DRAM
