The following image shows the location of the dual ground lug on the rear of the of Cisco ASR 1004 Router.

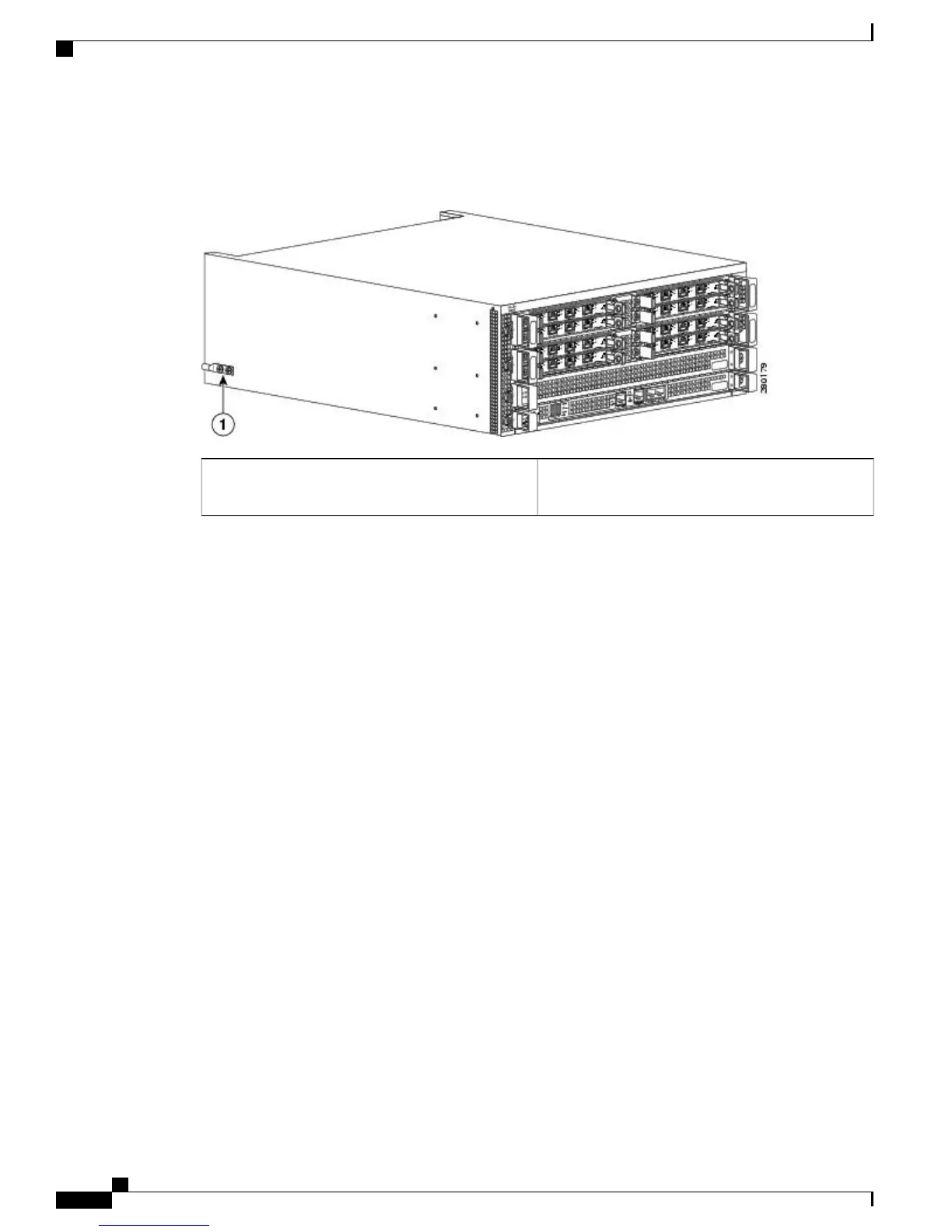

Figure 12: Chassis Ground Lug Location on the Cisco ASR 1004 Router
Chassis ground connector on the Cisco ASR 1004
Router
1
Use the following procedure to attach the grounding lug to the chassis ground connector on your chassis:
SUMMARY STEPS
1.
Use the wire stripper to strip one end of the AWG #6 wire approximately 0.75 inches (19.05 mm).
2.
Insert the AWG #6 wire into the wire receptacle on the grounding lug.
3.
Use the crimping tool to carefully crimp the wire receptacle around the wire; this step is required to ensure
a proper mechanical connection.
4.
Attach the grounding lug with the wire on the left to avoid having the grounding wire overlapping the
power supply. The following image shows how to attach the grounding screws.
5.
Locate the chassis ground connector on the side of your chassis.
6.
Insert the two screws through the holes in the grounding lug as shown in Figure 13: Attaching a Grounding
Lug to the Chassis Ground Connector, on page 23.
7.
Use the Number 2 Phillips screwdriver to carefully tighten the screws until the grounding lug is held firmly
to the chassis. Do not overtighten the screws.
8.
Connect the opposite end of the grounding wire to the appropriate grounding point at your site to ensure
an adequate chassis ground.
Cisco ASR 1000 Series Router Hardware Installation Guide
22
Cisco ASR 1004 Router Overview and Installation
Recommended Tools and Supplies
